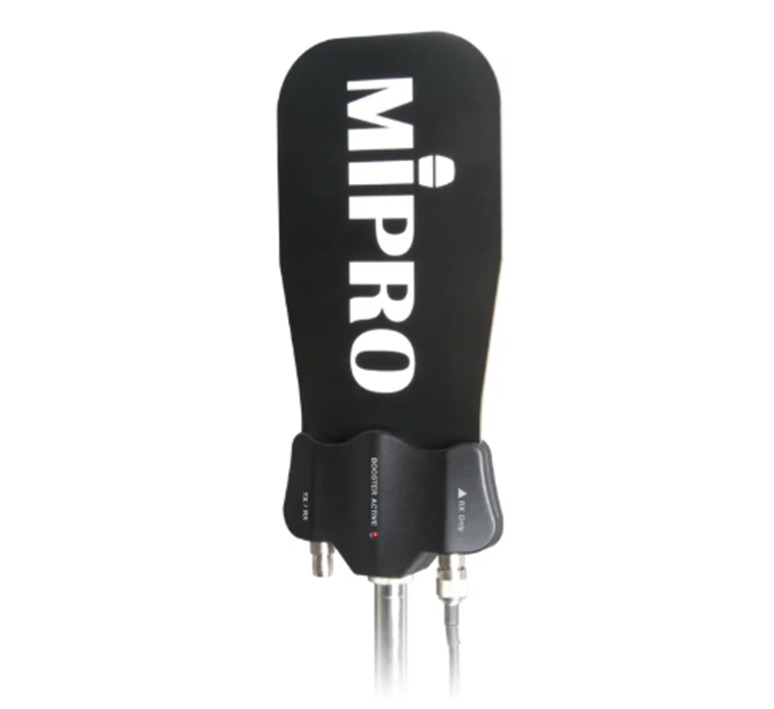

Mipro AT-70W Rondom gevoelige actieve UHF antenne

Productbeschrijving

AT-70W is a bi-functional omni-directional antenna for professional receiving and transmitting applications.
Optimized for 470-1000 MHz, which is fully compatible with US and EU new telecom regulations.
It has a 2-4 dBi gain which is ideal for any specific installation required with full directions.
It can be easily distinguished by its new W-Shape appearance.

AT-70W has two input connectors, TX/RX which can be connected to transmitter or receiver directly.
The RX only connector has a built-in 12 dB high gain booster provides increased reception range for ACT receiver.

AT-70W offers users the options of transmitting or receiving based on actual application.
Built-in booster power can be provided from a Mipro AD-707a or ACT Series receivers through the coaxial cables.
AT-70W is waterproof and ideal for both indoor and outdoor applications.

Specificaties

– frequency range UHF 470MHz-1000MHz
– antenna gain 2-4dBi
– booster gain RX Connector 12 +/- 1dB TX/RX connector 0dB
– VSWR < 2:1
power consumption:
– RX connector 1120mW（8V DC, new version 8-15V DC)
– TX/RX connector 0mW
– impedance 50 Ohm
– connector 2x TNC Female
– dimensions 120(W)x261(H)x32(D)mm
– weight approx. 200gr

Note:
Refer to actual product in the event of product discrepancy.
