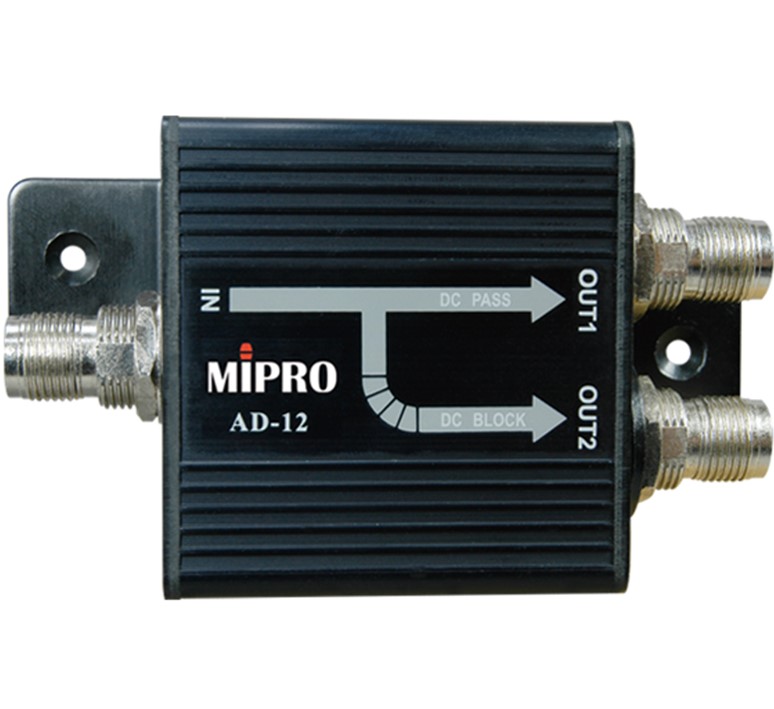

Mipro AD-12 passieve antenne splitter/combiner

Productbeschrijving

The AD-12 was introduced in 2005 and can either divide a RF signal into 2 signal outputs or combine 2 signals into 1 signal output.
Simultaneously, it transmits bias voltage to afterward boosters.
It is a required device for antenna system installation.
The AD-12 adapts an isolated grounding design to avoid power noise from multi-receiver operation.

Features:
– the AD-12 can either divide a RF signal into 2 signal outputs
– or combine 2 signals into 1 signal output
– simultaneously, it transmits bias voltage to afterward boosters
– this is an ideal accessory to set up antenna systems
– the AD-12 adapts an isolated grounding design to avoid power noise from multi-receiver operation

Specificaties

– frequency range UHF 470 – 1000 MHz
– gain attenuation 3,5 dB (typ.)
– max. RF input Power 30 dBm (1 W)
– isolation 20 dB (typ.)
– max. volt/current 50 V/DC / 1,5A
– input/output connectors TNC female (1-input, 2-output)
– system impedance 50 Ohm
– dimensions (W x H x D) 90,3 x 25 x 55,4mm
– net weight approx. 105 gr
Note Refer to actual product in the event of product description discrepancy
