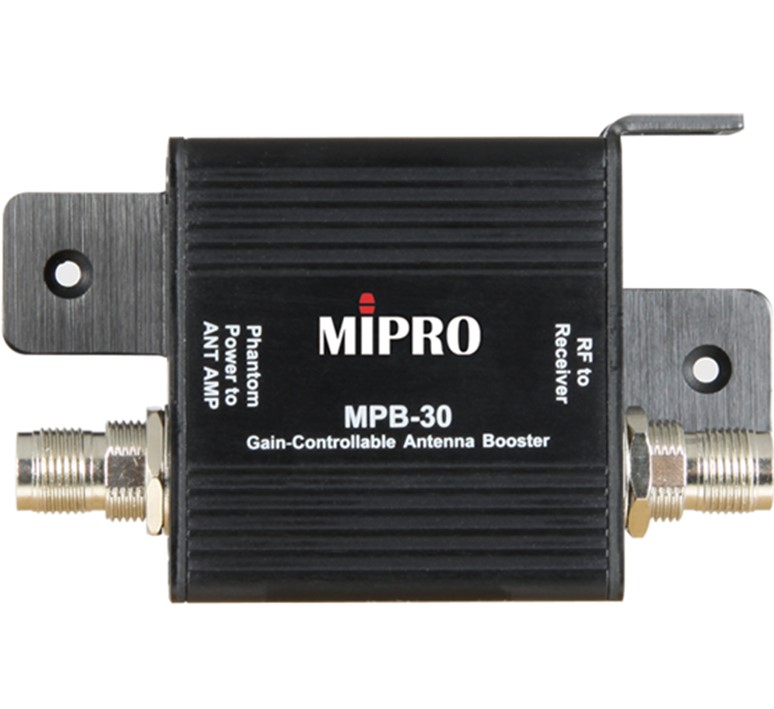

Mipro MPB-30 auto gain gestuurde antenne versterker (470-960MHz)

Productbeschrijving

Optimized in the 470 – 960 MHz frequency range, it works with the AD-708 antenna divider to detect and automatically compensate for the signal loss of cables by controlling the built-in variable 0 – 14 dB +/- 1 dB gain

With an external power supply, the MPB-30 provides power independently to the internal antenna booster
This allows complicated external antenna dividing systems to work efficiently and independently so that longer antenna cables can be connected with more boosters

Without an external power supply, the MPB-30 works by the 8V DC poer provided from Mipro ACT Series receivers to ensure normal operation

Its aluminum casing provides superb heat dissipation characteristics and a constant output voltage of 8 V DC

Specificaties

– frequency range UHF 470 – 960 MHz
– gain variable 0 – 14 dB +/- 1 dB (work with AD-708)
– noise figure < 2,5 dB (center band)
– IIP3 +18 dBm (center band)
– input/output connectors 1-to-1 TNC
– 50 Ohm impedance
– input power 12 – 24V/DC / 350 mA
– regulated power output 8V/DC / 250 mA
– current consumption approx. 77 mA at 12V/DC
– dimensions (W x H x D) 90 x 25 x 55 mm
– net weight approx. 100gr
Note Refer to actual product in the event of product description discrepancy
