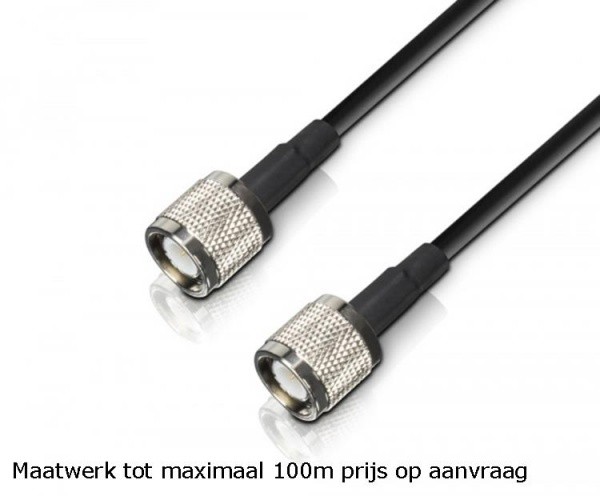

Maatwerk antenne kabel TNC male > TNC male 50 ohm prijs op aanvraag

Productbeschrijving

Specificaties

– halogeen vrije antenne kabel t.b.v. draadloze microfoons
– lengte op aanvraag tot maximaal 100m
– kleur zwart
– impedantie 50 Ohm
– connector 1 TNC male
– connector 2 TNC male
– inner conductor stranded tinned copper 19x 0,18 mm
– insulation PE, 2,95 mm
– shielding tinned copper braid 92% coverage
– overall diameter 5,0mm
– min. bending radius 25mm
– working temperature -30C / +70C
– characteristic impedance 50 +/- 2 Ohm
– capacitance 100 pF/m
– velocity of propagation 66%
– DC resistance inner conductor 38 ohm/km, outer conductor 17 ohm/km
– attenuation:
50 MHz 10,4 dB/100m
100 MHz 15,0 dB/100m
200 MHz 21,9 dB/100m
400 MHz 32,2 dB/100m
800 MHz 48,1 dB/100m
1000 MHz 54,8 dB/100m
