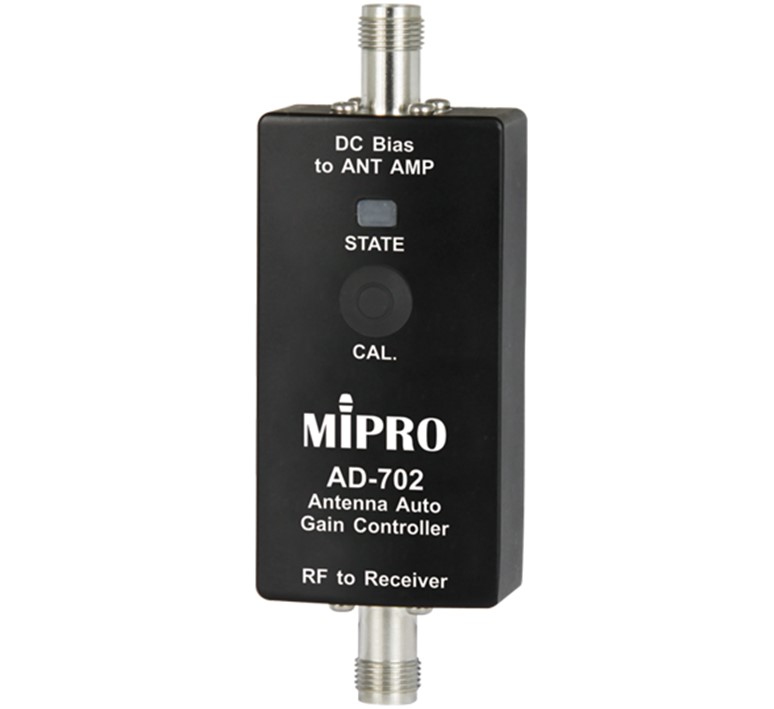

Mipro AD-702 auto gain antenne booster (470-850MHz)

Productbeschrijving

The AD-702 automatically detects the signal loss between the built-in booster of the antenna and the AD-702 itself.
It can control and compensate for the signal loss of antenna cables precisely and automatically in order to avoid the intermodulation caused by the higher gain supply from the booster.
The aluminum casing provides superb heat dissipation characteristics and a bright LED indicator helps identify antenna cable signal loss as well as the booster compensation status.
It makes it fast and easy to install antenna systems without worrying about the calculations of the signal loss of antennas and cables or booster specifications.

Specificaties

– frequency range UHF 470 – 850 MHz
– input/output gain -1 dB +/- 0,5dB
– input/output connector 1 to 1 input/output TNC female 50 Ohm impedance
– antenna input power supply bias of the power supply (8 – 15V/DC)
– signal loss detection detects the signal loss of the cables automatically
– power supply 8 – 15V/DC
– dimensions W x H x D 114 x 24 x 41mm
– net weight approx. 226gr
Note Refer to actual product in the event of product description discrepancy.
