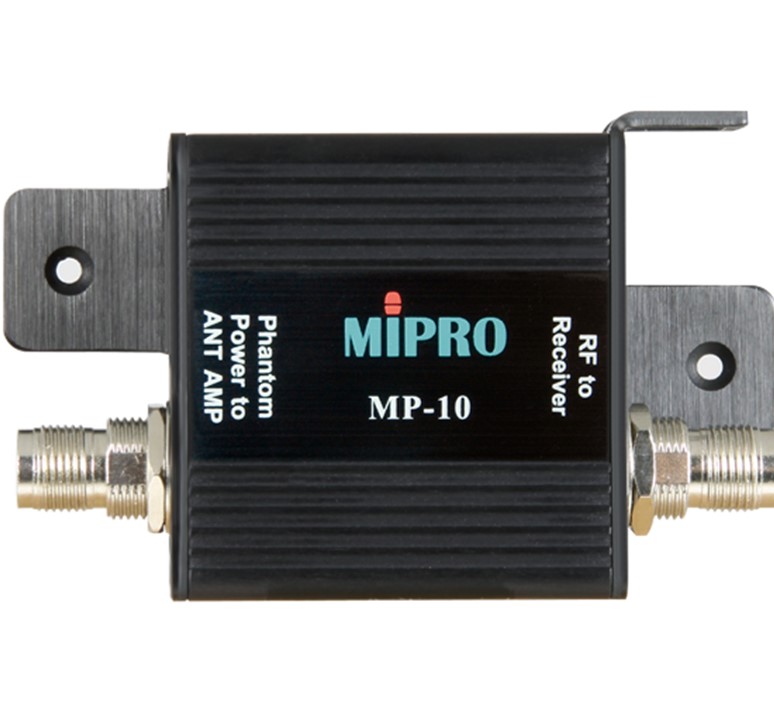

Mipro MP-10 relay booster voeding

Productbeschrijving

MP-10 can independently provide power to external/internal antenna booster.
This allows complicated external antenna dividing systems to work efficient independently so that longer antenna cable can connect with more boosters and compromise the signal loss due to long connecting cables.

Aluminum casing has superb heat ventilation character and provides constant output voltage at 8 volt DC.
Wide coverage bandwidth and low input loss < 1dB @ 0,1 1GHz 0,6dB @ 810MHz

RF output is fully isolated from DC power.
Ground circuit for high frequency RF prevents ground loop noise.

Specificaties

– input power 10 – 16V/DC
– regulated output power 8V/DC/1A
– attenuation 100 – 1000 MHz < 1 dB
– impedance 50 Ohm

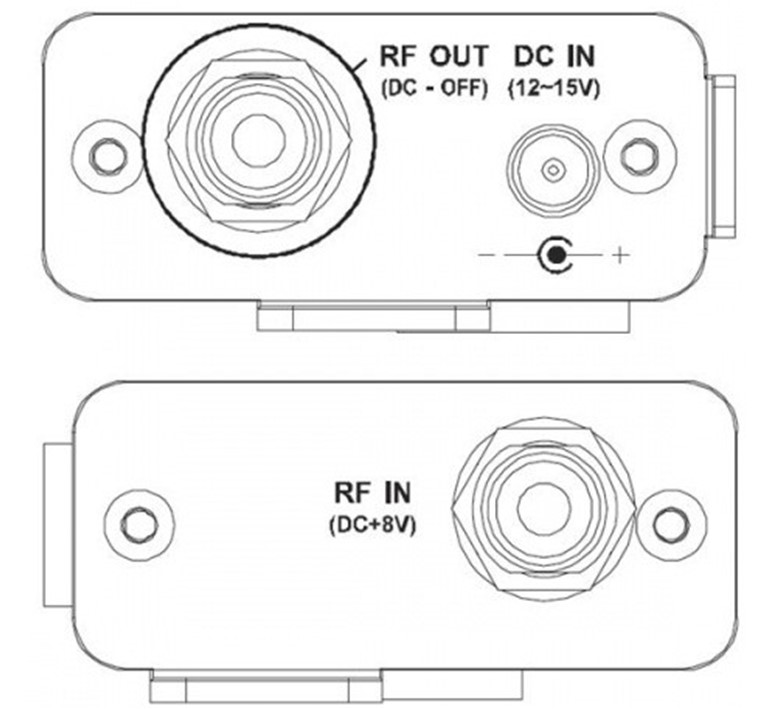

– ground isolation RF output DC ground isolation
– connector 2x TNC
– 1x 2,0mm DC jack
– dimension W x H x D 90,3 x 25 x 55,4mm
– weight approx. 100gr
