Mipro ACT-80H condensator handheld microfoon tbv ACT-818/828 diversity ontvanger (64 MHz)

Mipro ACT-80H condensator handheld microfoon tbv ACT-818/828 diversity ontvanger (64 MHz)

Artikelnummer: ACT80H

500,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • 1 jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

nnovatively designed metal housing in Mipro’s distinctive aesthetic and ergonomic style.

Features:
– standard champagne-color housing
– optional custom-made colors are available

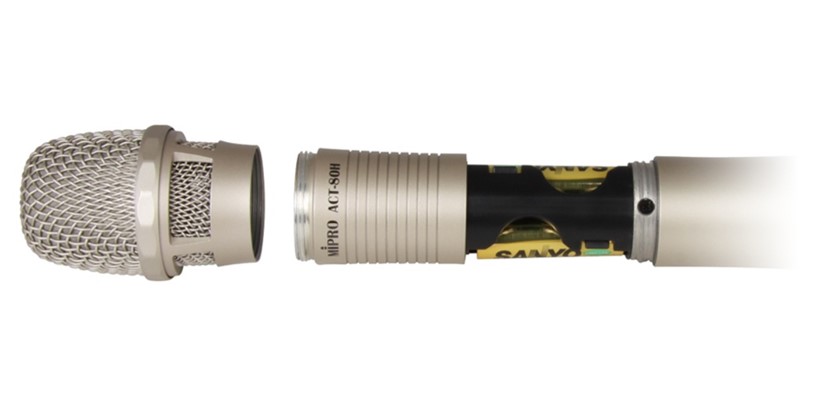

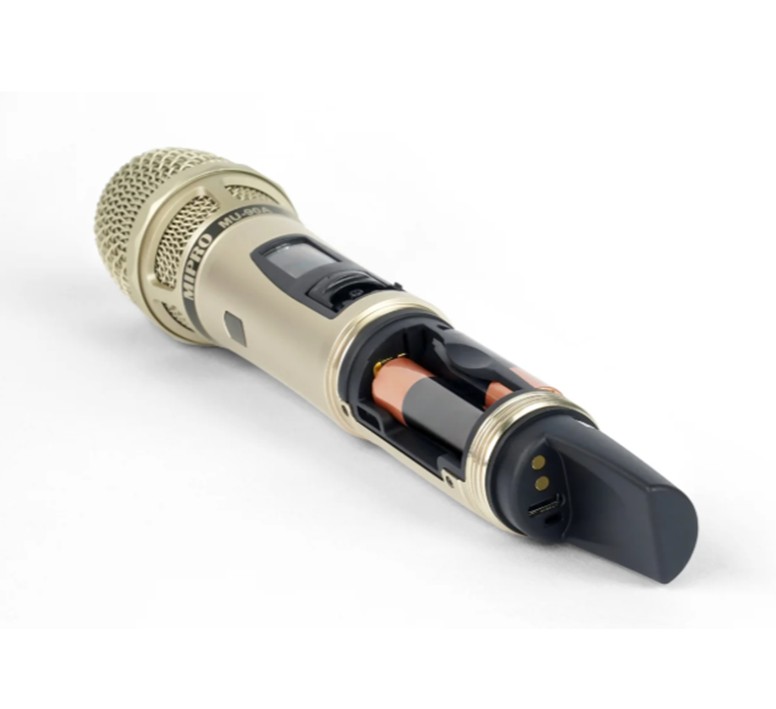

– turn upper housing for 2x AA battery installation and replacement
– the unique multi-layered metal grille protects the capsule against impact
– rolling and pop noise, ensuring clarity of sound
– patented capsule suspension design virtually eliminates vibration and handling noises
– interchangeable capsule module with premium condenser
– dynamic options for easy and fast changeovers
– premium condenser capsules exhibit high fidelity
– wide dynamic range, fast transient responses, good feedback rejection
– accurate sound image characteristics
– transparent sound quality and withstand maximum SPL

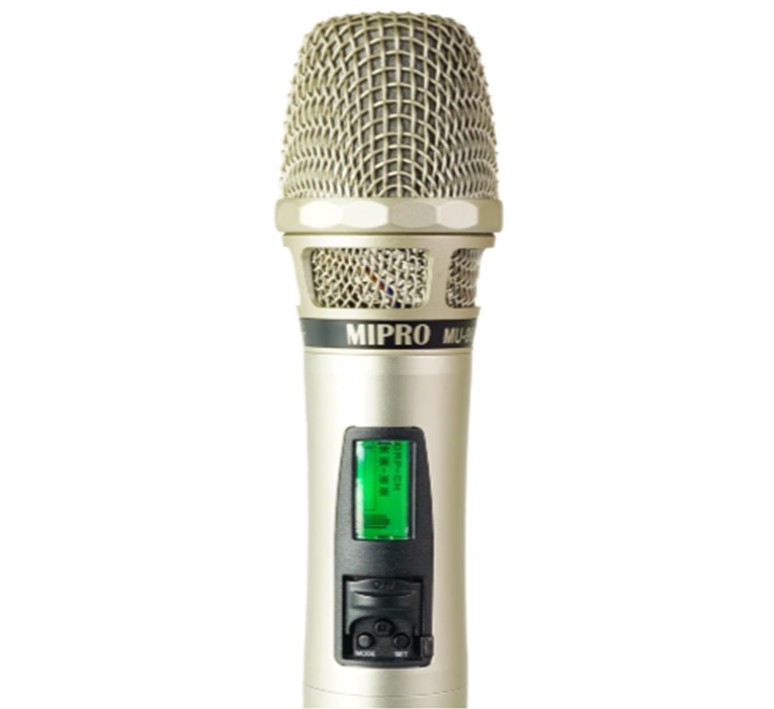

– backlit LCD displays all operational parameter information
– the bottom housing with built-in high-efficiency antenna features power switch, mute and setup buttons for programmable gain, limiter, low-cut and RF output power
– patented end-cap cover with color-coded channel identification clips.
– detach the end-cap cover for parameters set-up
– reversible end-cap for shielding of power on/off or mute switches
– three selectable mute settings: auto, manual & disabled
– Auto mute activates automatically when handheld transmitter points down towards the ground
– three selectable gain settings: 0 dB (same as microphone sensitivity), +3 dB, +6 dB
– two transmitter output power settings: HI (high-power) & LOW (low-power)
– stable PLL circuits
– automatically synchronized with Mipro’s patented ACT function
– high-efficiency circuitry design
– 10-13 hours of operation from 2x AA batteries (depending on battery quality)



Specificaties

Frequency Range:
– 482 – 554MHz (US & EU)
– 540 – 604MHz (US & EU)
– 636 – 700MHz (EU)
– 696 – 760MHz (EU)
– 760 – 824MHz
– bandwidth 64 MHz
– oscillation mode PLL synthesized
– channel set-up ACT Sync
– RF output power 10 mW / 50 mW switchable (country dependent)
– spurious emissions < -60dBc
– modulation type new digital modulation
– audio compression DSP inertial coding
– LCD display group, channel, frequency, AF gain, low-cut, limiter
– encryption status, RF power, mute mode, battery status & error codes
– gain setting +6 dB, +3 dB, 0 dB (3 settings). 0 dB = microphone sensitivity
– capsules interchangeable premium MU-90 / MU-80 ECM or MU-59 dynamic
– battery type 2x AA alkaline
– current consumption high power approx. 165mA ; low power: approx. 135 mA
– dimensions 50 x 258 mm
– weight approx. 292 gr excluding batteries

Notes:
Refer to actual product in the event of product description discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
