BenQ PU-9730 DLP data projector 7000 Ansi lumen 2800:1 WUXGA 1920 x 1200 incl. standaard lens

Productbeschrijving

Pioneering features such as innovative HDBaseT connectivity and lens memory augment the already-comprehensive installation advantages as omnidirectional projection dexterity.
Similarly, breakthrough high brightness and resolution, a brand-new mechanical shutter, and new cooling / monitoring / maintenance features ensure the highest value and performance for installers, IT managers, and presenters alike in any venue or application.

key features:
– HDBaseT Advanced Digital Connectivity
– Lens Options and Interchangeable Color Wheel
– Ultra High Brightness up to 7000 Lumens
– Dual-Lamp System for Uninterrupted Presentations
– Integrated Filtration for Easy Maintenance

Technical Info:
– Projection System DLP
– Native Resolution WUXGA (1920 x 1200)
– Brightness (ANSI Lumens) 7000 lmns (Dual lamp, Standard lens)
– Contrast Ratio 2800:1
– Display Color 1.07 Billion Colors
– Lens Wide Fix(5J.JAM37.011) F=1.85, f=11.6mm
– Ultra Wide (5J.JAM37.061) F=1.96-2.3
– Wide Zoom(5J.JAM37.021) F=1.85-2.5, f=18.7-26.5mm
– Standard(5J.JAM37.001) F=1.64-1.86, f=26-34mm
– Semi Long(5J.JAM37.051) F=1.86-2.48, f=32.9-54.2mm
– Long Zoom1(5J.JAM37.031) F=1.86-2.41, f=52.8-79.1mm
– Long Zoom2 (5J.JAM37.041) F=1.85-2.48, f=78.5-121.9mm
– Aspect Ratio Native 16:10 (5 aspect ratio selectable)
– Throw Ratio Wide Fix(5J.JAM37.011) 0.76:1(WUXGA)
– Ultra Wide (5J.JAM37.061) 0.75-0.93:1(WUXGA)
– Wide Zoom(5J.JAM37.021) 1.25-1.79:1(WUXGA)
– Standard(5J.JAM37.001) 1.73-2.27:1(WUXGA)
– Semi Long(5J.JAM37.051) 2.22-3.67:1(WUXGA)
– Long Zoom1(5J.JAM37.031) 3.58-5.38:1(WUXGA)
– Long Zoom2 (5J.JAM37.041) 5.31-8.26:1(WUXGA)
– Image Size (Diagonal) 80″-500″
– Zoom Ratio Wide Fix(5J.JAM37.011) Fixed
– Ultra Wide (5J.JAM37.061) 1.25:1
– Wide Zoom(5J.JAM37.021) 1.41:1
– Standard(5J.JAM37.001) 1.3:1
– Semi Long(5J.JAM37.051) 1.65:1
– Long Zoom1(5J.JAM37.031) 1.5:1
– Long Zoom2 (5J.JAM37.041) 1.55:1
– Lamp Type 350W x 2
– Lamp Mode (Normal/Economic/SmartEco/LampSave/LumenCare) 2000/2500 hours
– Keystone Adjustment Vertical +/- 30 degrees
– Resolution Support VGA(640 x 480) to WUXGA(1920 x 1200)
– Horizontal Frequency 15K-91KHz
– Vertical Scan Rate 48-120Hz
– Lens Shift Wide Fix(5J.JAM37.011) NA
– Ultra Wide (5J.JAM37.061) 0-45% Vertical; +-10% Horizontal
– Wide Zoom(5J.JAM37.021) 0-50% Vertical; +-10% Horizontal
– Standard(5J.JAM37.001) 0-50% Vertical; +-10% Horizontal
– Semi Long(5J.JAM37.051) 0-50% Vertical; +-10% Horizontal
– Long Zoom1(5J.JAM37.031) 0-50% Vertical; +-10% Horizontal
– Long Zoom2 (5J.JAM37.041) 0-50% Vertical; +-10% Horizontal

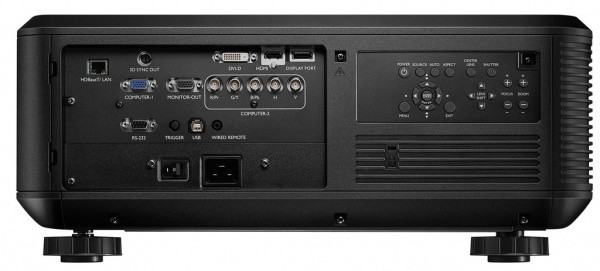

– Interface Computer 1 in (D-sub 15pin) x 1
– Computer 2 in (5BNC, R/G/B/H/V) x 1
– Monitor out (D-sub 15pin) x 1
– HDMI x 1 (1.4a)
– DVI-D in x 1
– LAN (RJ45) x 1 (LAN Control)
– USB (Type Mini B) x 1 (Download)
– HD Connect x 1 (Share with RJ45)
– DisplayPort x 1
– 12V Trigger x 1
– RS232 (DB-9pin) x 1
– Wired Remote x 1
– IR Receiver x 2 (Front+Rear)
– Dimensions (W x H x D mm) 510 x 230 x 540 mm
– HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
– Video Compatibility NTSC, PAL, SECAM
– Audible Noise (Normal/Economic Mode) TBD
– On-Screen Display Languages 12 Languages
– Picture Modes Presentation/Standard/Game/Movie/sRGB
– Accessories (Standard) Remote Control without Battery
– 6 Segments Color Wheel
– Power Cord (by region)
– User Manual CD
– Quick Start Guide
– Warranty Card (by region)
– VGA(D-sub 15pin) Cable
– Power Supply AC100 V, 7.2A, 50 to 60 Hz
– AC 220-240 V, 2.9A, 50 to 60 Hz
– Power Consumption AC100 V, 710W (Standby Power <0.5W)
– AC 220-240 V, 670W (Standby Power <0.5W)
– Weight 21kg (Without lens)

Accessories (Optional):
– Spare Lamp Kit 5J.JC705.001
– Ceilling Mount 5J.JCY10.001
– Optional Lens Wide Fix(5J.JAM37.011)
– Ultra Wide (5J.JAM37.061)
– Wide Zoom(5J.JAM37.021)
– Standard(5J.JAM37.001)
– Semi Long(5J.JAM37.051)
– Long Zoom1(5J.JAM37.031)
– Long Zoom2 (5J.JAM37.041)

Lamp life results will vary depending on environmental conditions and usage.
Actual product’s features and specifications are subject to change without notice.
