SY SY-HDBT70-SLIM-EDGE-R HDBT > HDMI ontvanger met RS-232 tot 70m met PoC (Power over Cable)

Productbeschrijving

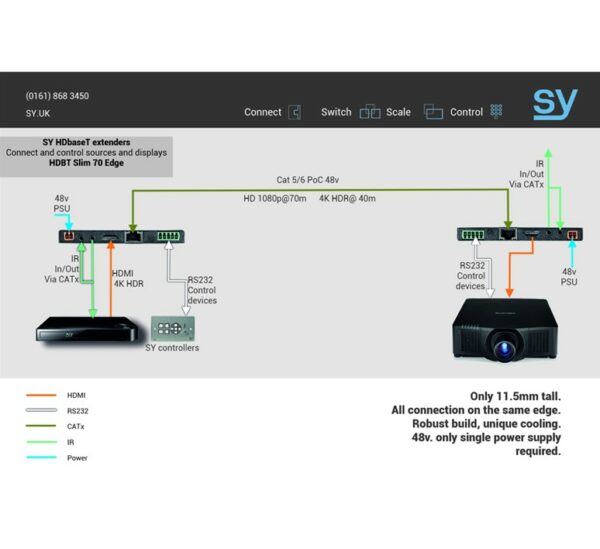

The HDBT-70-SE Slim Edge Receiver is the slimmest HDBaseT extender receiver available on the market, measuring only 108 x 70 x 11,5mm.
The ergonomic design places all I/Os on the same edge for fast and discrete installations.
The receiver accepts HDMI 4K 30 UHD video up to 40m (3840 x 2160) and 1080p up to 70m.
With two-way IR control, bi-directional RS232 data, CEC and PoC (power over cable).
SY’s ingenuous chassis cooling system ensures maximum reliability for demanding environments.
The unit comes supplied with IR eye and 1 PSU.

Features:
– receiver, HDBT-70-SE-R
– HDMI 1080p up to 70m and 4K 30 UHD up to 40m
– bi-directional RS232, IR control and PoC (power over cable)
– bi-directional control via Phoenix connectors for flexible operation of remotely controlled displays and sources, with two-way IR control and PoC
– ergonomic I/O design
– easy access is achieved with the positioning of all I/O connections on the same panel edge, speeding up and simplifying installations
– superior cooling
– ultimate reliability under demanding conditions

Specificaties

– slimmest HDBT (only 11,5mm)
– 70m HDBaseT Output @ 1080p
– 40m @ 4K 30 UHD
– bi-directional RS232
– IR in and out
– HDCP2.2 and CEC compatible
– 48VDC power
– PoC from either end
– data rate 10,2Gbps
