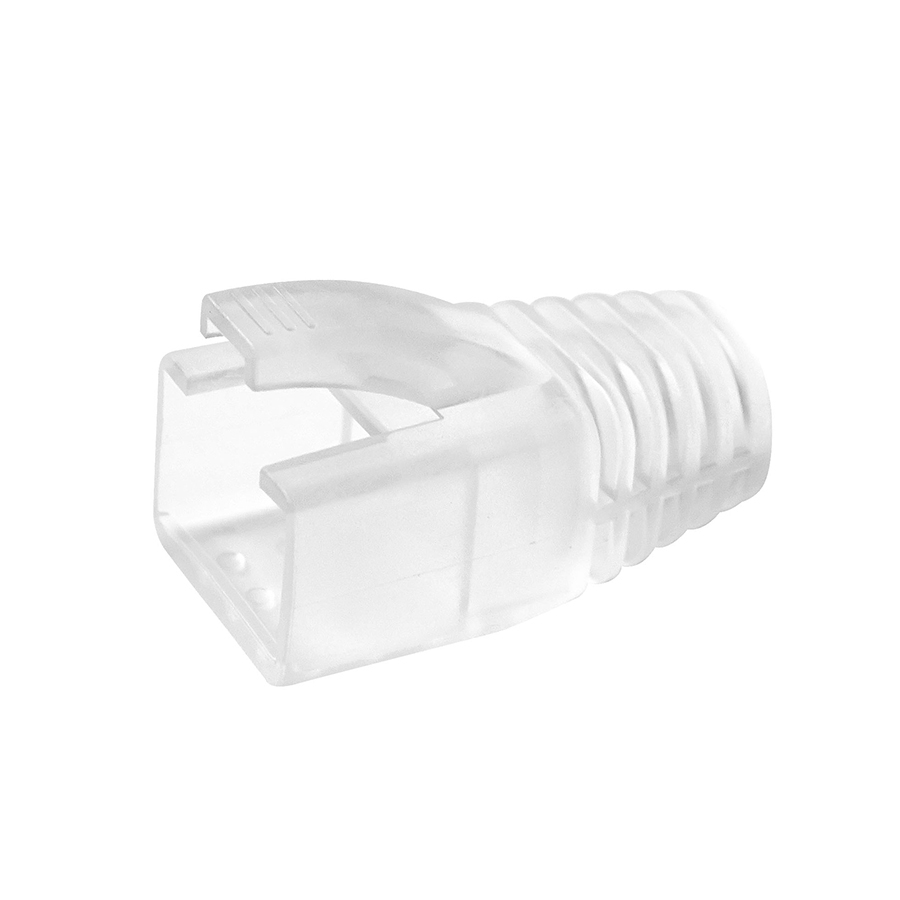

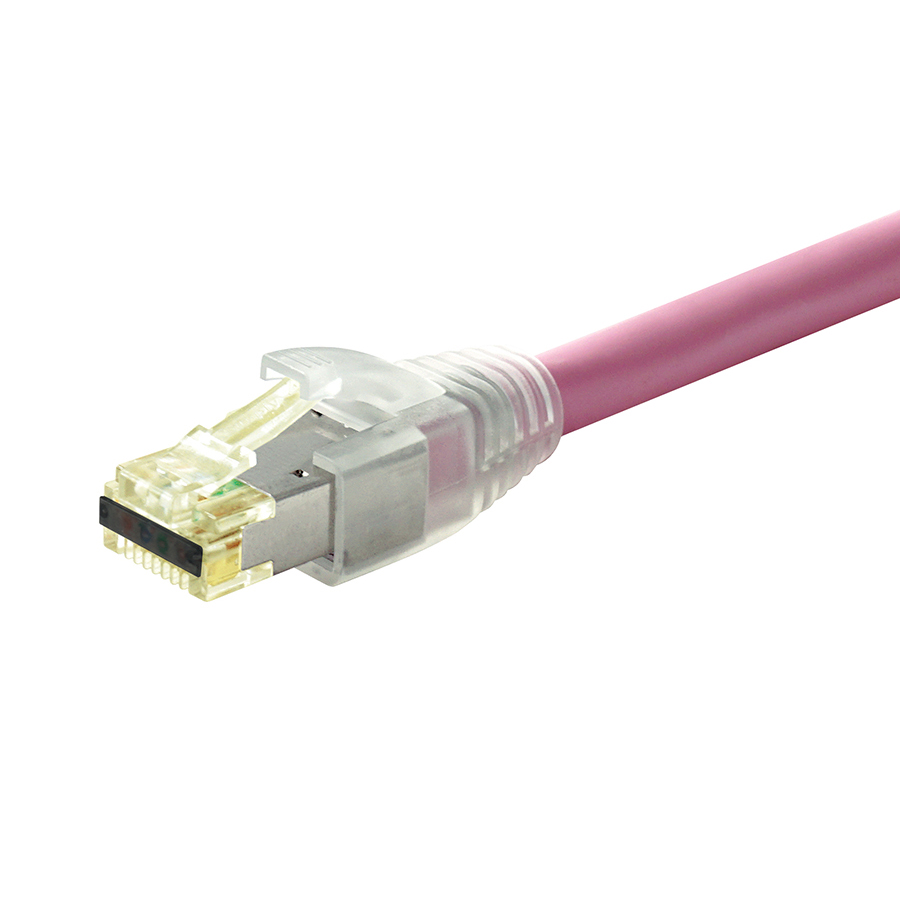

Simply S45-1155 Cat6A/7/7A RJ45 persconnector 10G STP AWG23 dmax=8mm incl. trekontlasting

Simply S45-1155 Cat6A/7/7A RJ45 persconnector 10G STP AWG23 dmax=8mm incl. trekontlasting

Artikelnummer: CISRJ0075

3,95  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

>10 op voorraad

  • Gratis verzending v.a. €350,-

Productbeschrijving

Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
Up until now, using an RJ45 modular plug to terminate shielded 10G LAN cables such as Cat7a, Cat7 and Cat6a were time-consuming, frustrating, and if you ever put a Fluke test on longer distance links or channels, the results were not exactly stellar.
Of course, you could use an industrial-style RJ45 Field Plug connector, but those are expensive and still require more effort than they should.
The Simply45 engineering team did extensive testing and development to design a high-performing Standard WE/SS (8P8C) RJ45 modular plug solution that was both easy to use and cost-effective.

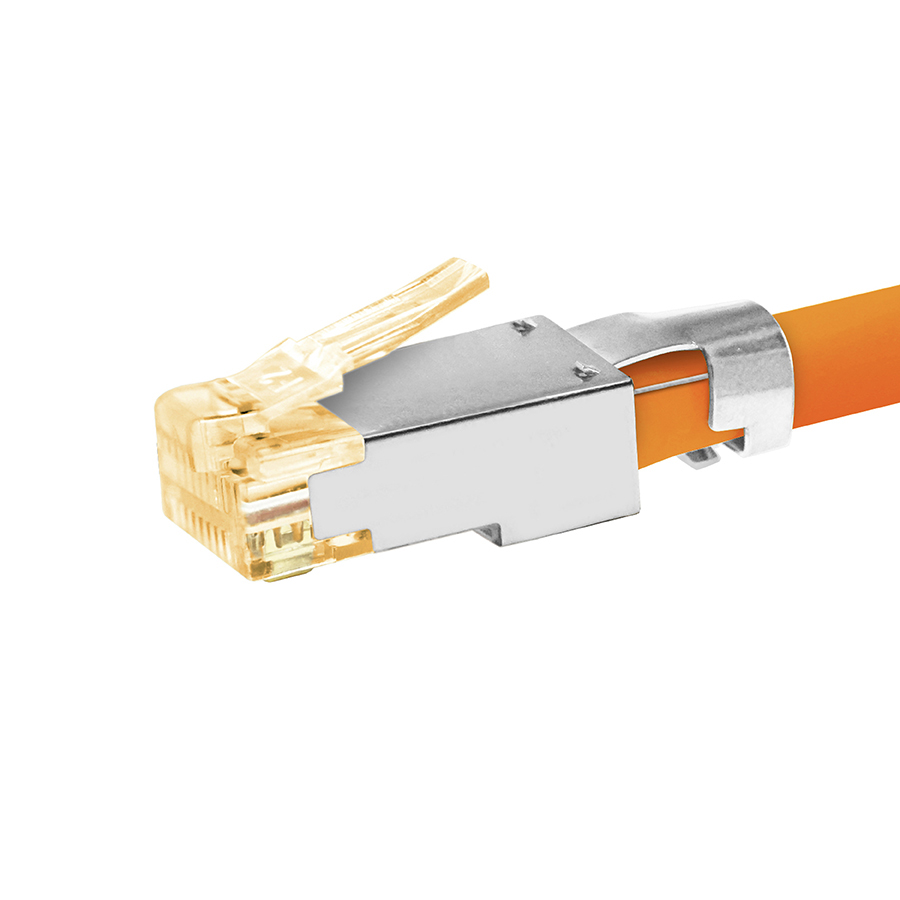

Introducing our S45-1155 Standard WE/SS Shielded with External Ground RJ45 Modular Plugs for 10G LAN cables with FPE insulated wires.
FPE (foam polyethylene) insulated wires are found on most of today’s 10G Shielded LAN such as Cat7a, Cat7, Cat6a with S/FTP, U/FTP, and F/FTP LAN cable constructions.
The S45-1155 are IEEE 802.3 10GBase-T compliant.

Note:
If you are using a larger diameter shielded LAN cable with PE (solid polyethylene) we recommend using our S45-1150 Standard RJ45 modular plug or the Simply45® ProSeries Pass-Through part S45-1755P.

The uniquely designed Simply45 S45-1155 simplifies and improves the terminated plug performance for shielded 10G LAN cables.
The S45-1155 shielded modular plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate 10G Shielded LAN cables with FPE insulated wires.

The S45-1155 incorporates the following features:

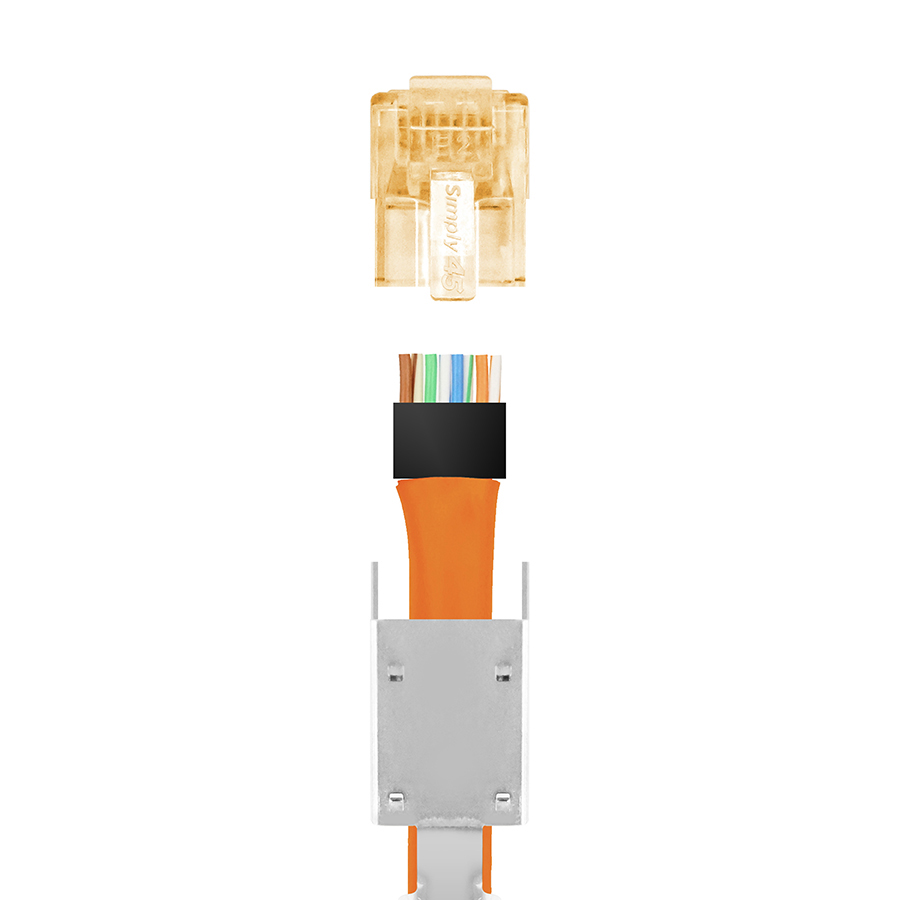

Two-Piece Plug:
We tried all that we could to use a one-piece design, but it proved too difficult to work with during the testing trials.
As such, we separated the metal shell shield from the RJ45 body.
This allowed us to make additional modifications and the result is a dramatically improved termination process that is faster and easier to use.
The metal shell quickly and easily snaps onto the plug body prior to crimping the plug.
Separating the plug body from the metal shield allows the large diameter shielded LAN cables to be inserted further into the plug.
This is a significant advancement in RJ45 design because this feature improves NEXT performance by reducing the length of untwisted wires inside the plug.
Please refer to our Technical Bulletin “It’s All About Those Twists” for more information on how this feature raises RJ45 performance.

The S45-1155 supports performance standards:
ANSI/TIA 568.2-D for Cat7 and Cat6a; ISO/IEC 11801 Class F, Ea and E. Supports 10GBaseT performance applications over PE insulated shielded twisted pair cables.

Bar45 Load Bar:
The exclusive Simply45 Bar45 are load bars designed to match specific Simply45 RJ45 modular plugs to improve termination performance and SIMPLIFY the termination process.
The innovative Bar45 that is designed specifically for our part S45-1155 are the easiest to use load bars ever made for terminating 10G LAN cables with FPE insulated wires.
The S45-1155 Bar45 is designed specifically for our S45-1155 Standard Shielded with External Ground WE/SS (8P8C) RJ45 modular plug.

S45-1155 Bar45 does several things to improve performance of 10G twisted pair cables and make it easier to use than any other load bar:
S45-1155 Bar45 is made of materials that provide better signal isolation and substantially reduces the effects of crosstalk inside the RJ45 mod plug.
Bar45 absorbs and limits both near-end crosstalk (NEXT) and far-end crosstalk (FEXT), thereby improving 10G cable performance.
The S45-1155 Bar45 innovative design reduces the length of untwisted wires inside the plug improving twisted pair signal performance and substantially reduces the introduction of NEXT into the signal.
S45-1155 Bar45 combined with Simply45’s internal RJ45 design innovations allows the LAN cable itself to be inserted further into the plug, reducing the length of untwisted wires.
This symbiotic design of load bar and internal RJ45 plug design helps maintain improved headroom performance and better signal integrity than any other Standard RJ45 solution for shielded 10G cables.
The uniquely designed Bar45 does not require the frustrating tasks of trying to insert larger wire conductors in the very small holes found on most other load bars.
That design was not acceptable to Simply45.
Bar45 simply requires you to insert 4 wires into Bar45 and then insert another 4 wires (according to the wire pattern being used).
Trim the wire, then simply slide Bar45 back to the LAN cable jacket.
Fast… Simple… and Easy to Do.
No more headaches fiddling with wires trying to get them inserted into a load bar.
The S45-1155 Bar45 design is also used with the Simply45 Pass-Through RJ45 modular plug for Shielded LAN cables, part S45-1755P.
Once you have used the S45-1155 or S45-1755P Bar45 you will never want to use anything else for terminating 10G Shielded LAN cables for Cat7a, Cat7, Cat6a with S/FTP, U/FTP, or F/FTP cable constructions.

Works in all compliant RJ45 modular plug sockets.
Supports performance standards: ANSI/TIA 568.2-D and ISO/IEC 11801.

3 Prong Pin Design with 50µ of True 24ct Gold Plating.
All Simply45 standard WE/SS RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on many other Standard RJ45 modular plugs.
A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2.
This improves electrical performance and signal integrity.
A 3-prong pin also holds stronger onto the wire conductors.

Solid LAN Cables:
The S45-1155 is ideal for most shielded 10G LAN cables with FPE (foamed polyethylene) wire conductors.
Supports 23 AWG LAN cables with a maximum cable diameter of 8mm and wire conductor sizes 1,21mm – 1,45mm.
The S45-1155 works great with Cat7a, Cat7, Cat6a LAN cables with S/FTP, U/FTP, and F/FTP cable constructions.

Improved Crosstalk Performance:
The unique internal design of the S45-1155 Standard RJ45 modular plug allows the LAN cable to be inserted further into the RJ45 plug.
This reduces the length of untwisted wires improving NEXT performance.
Our S45-1155 plug design and Bar45 provide the best crosstalk performance of any shielded RJ45 plug on the market.

Commercial Rated:
These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations.
These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.

Color Tinted RJ45 Modular Plugs:
The S45-1155 comes with a light Orange tint for easy pass-through RJ45 modular plug identification.
No more trouble identifying which plug is which.
All Simply45 RJ45 modular plugs are color-coded for easy identification.

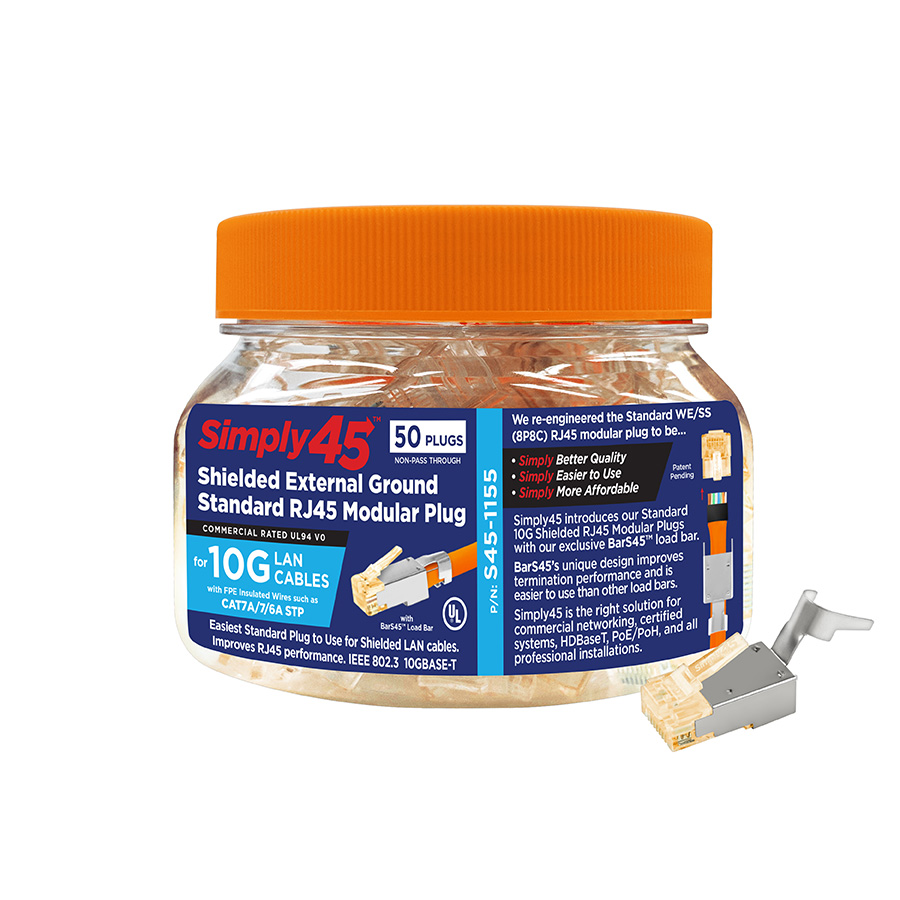

Wide Mouth Jar for Easy Hand Access:
No need to spill RJ45 mod plugs out of the jar just to reach them.
Most hands (unless you are “Shrek”) can easily reach the last plug in the jar.

Color-Coded Jar Caps:
The S45-1155 jar cap is Orange matching the color tint of the RJ45 mod plug.
This makes it very easy to find identify the items in your bag or kit.
Saves time identifying the RJ45 modular plugs that you need to use.

UL Listed:
The S45-1155 Standard WE/SS RJ45 modular plugs are UL Listed and bear the UL Logo on the Simply45 packaging.
Only Simply45 provides the UL Listed logo for quality and safety on pass-through RJ45 modular plugs.
UL is the strictest 3rd party verification service in the world and products bearing the UL mark represent the highest quality and safety standards.

PoE/PoH Rated:
The S45-1155 is ideal for PoE/PoH applications.
The S45-1155 uses the correct 3-Prong Pin design; true 24ct gold plated pins; fully shielded and is made using the highest quality materials for RJ45 modular plugs.
This all ensures lower resistance and less heat build-up than cheaper made RJ45 that are out on the market.

Compliant to Industry Standards:
ANSI/TIA 568.2-D Class E, 1096-A; ISO/IEC 11801 Class E, 60603-7, 8877:1992; FCC

Lifetime Warranty:
We are so certain that you will be pleased with the performance of our S45-1155 that we now offer a Lifetime Limited Warranty.



Specificaties

– meets or exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
– wire 23 AWG 1,21mm – 1,45mm
– max LAN Cable OD 8mm
– supports PoE/PoH
– cable fire resistance ratings commercial rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
– flame Autoextinguish: UL94 V0, IEC 60695-11-10
– contact material Phosphor Bronze 0,012″ thick
– contact plating min 50 Micro-Inch Pure Gold – 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min
– nickel plating exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
– plug material Polycarbonate
– shielded material hard Brass
– shielded plating 80 Micro-Inch minimum Nickel Plating
– plug tolerances and dimensions meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
– conductor type solid and stranded
– operating temperature: -40C – +70C
– insertion/extraction life 2000 minimum cycles
– contact resistance 20 milli-Ohms maximum
– current/voltage 30 VAC/42 VDC at 1,5A
– compliance UL Listed, RoHS, FCC, NEC
