Newhank D-4000 8x 500W/4 Ohm klasse D digitale versterker NIET MEER LEVERBAAR

Productbeschrijving

NewHank D4000 is a 2 unit 8x 500W/4 Ohm class D digital power amplifier.

Features:

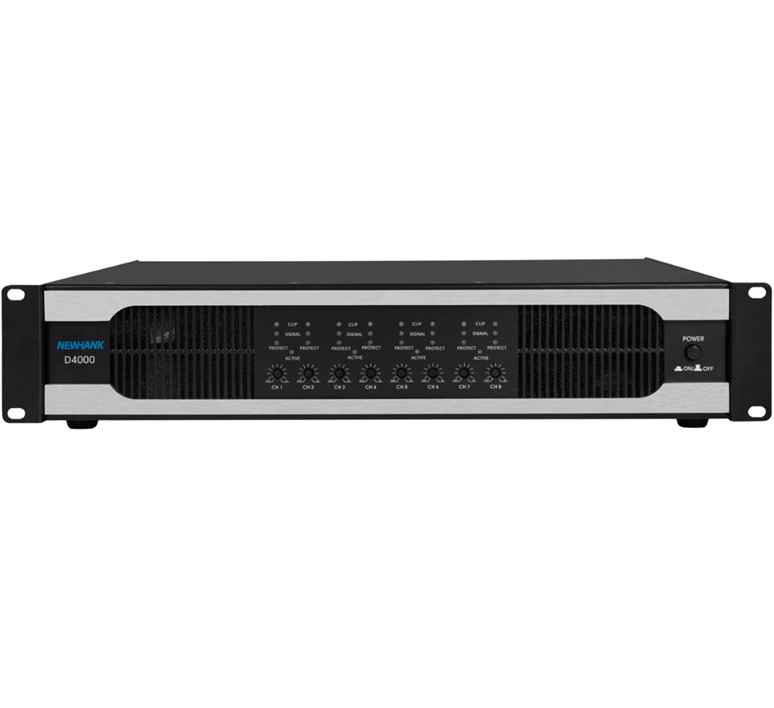

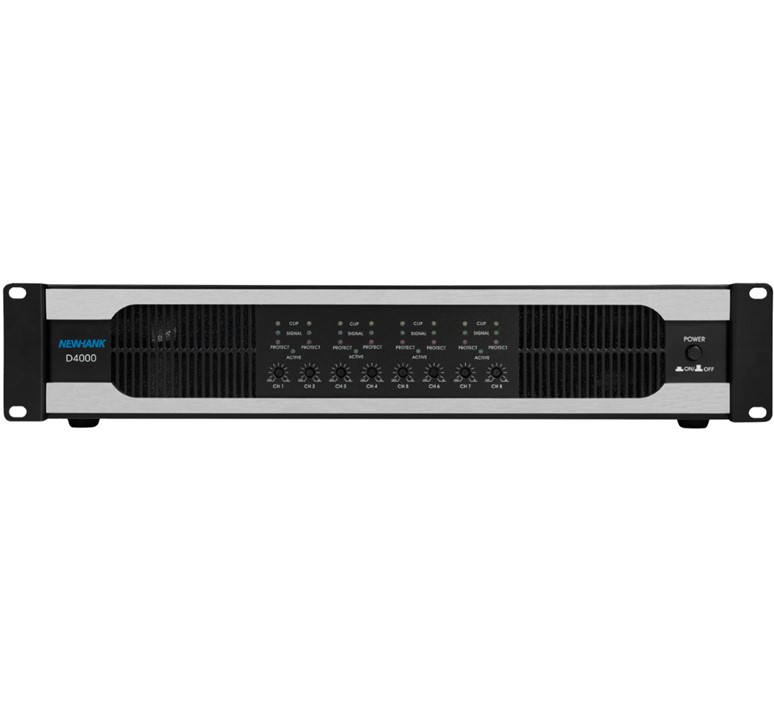

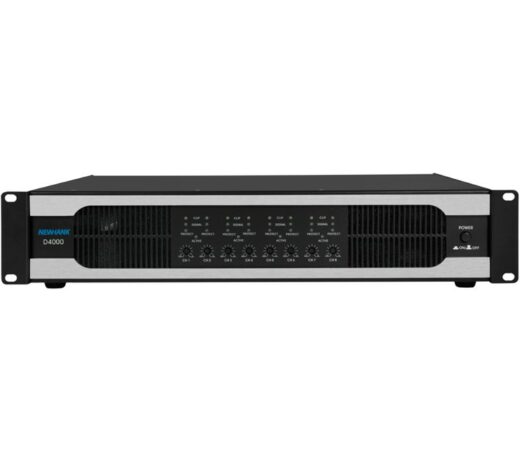

– unique and elegant front panel design with brush-finished color
– carefully selected high quality components
– compact structure and light weight
– class D toplogy integrated with switch power supply design
– powerful output and high efficiency
– low electricity consumption
– accurate volume control, switch on/off, signal
– clip and protection LED’s are located on the front panel
– fully automatic protection circuit for each channel including direct current protection
– thermal protection over-load protection and amplitude limit
– variable speed fan controller with temperature sensor
– XLR balance input and professional Speakon output
– stereo, mono or bridge operation

Specificaties

– frequency response (at 1 Watt) 20Hz-20KHz,+0/-1dB
– total harmonic distortion (THD) <0.2%
– power voltage 220-240V/50/60Hz
– power consumption 2700W
– power connector standard IEC connector
– output grade technology type class D
– voltage gain 40dB
– damping factor >300, 10Hz-400Hz
– S/N ratio (20Hz-20Khz, 4 Ohms) >100dB
– crosstalk -65dB
– input sensitivity 0,775V
– input impedance (nominal) 10K ohms/20K ohms
– input connectors XLR socket (female)
– output connectors Speakon
– front panel controls power on/off switch and volume control

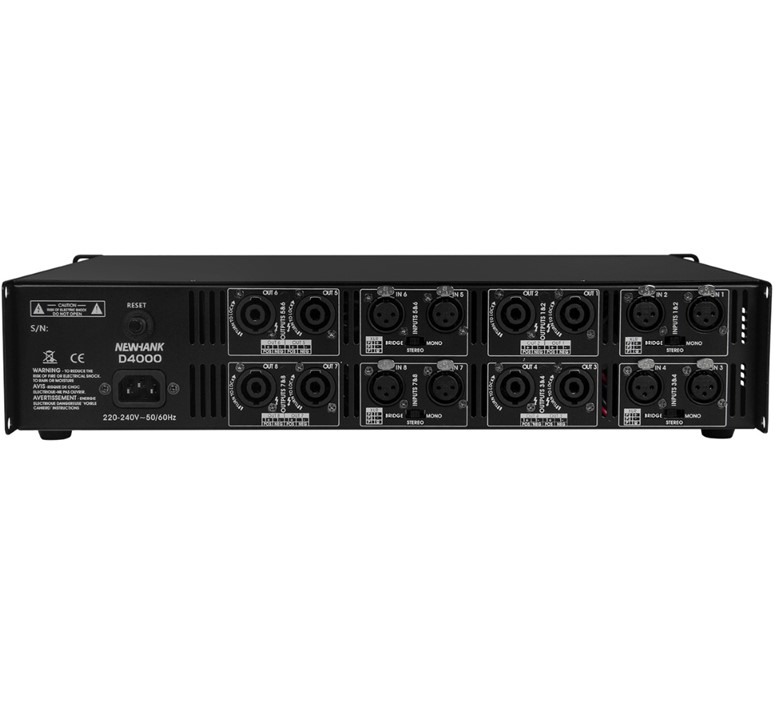

– rear panel controls output mode switch for mono, stereo or bridge selection
– LED indicators three LED lights for every channel clip/-10dB, signal and mono/bridge/status lights in front panel
– cooling system cooling fans with variable speed
– protection against short circuit, direct output current, over load lowvoltage and over-heat
– ventilation flow-through ventilation from front to back
– dimensions W x H x D 483 x 88 x 357mm
– net weight 12,6kg
– shipping weight 15,3kg
– accessories operation manual 1pc,power cord plug 1pc
