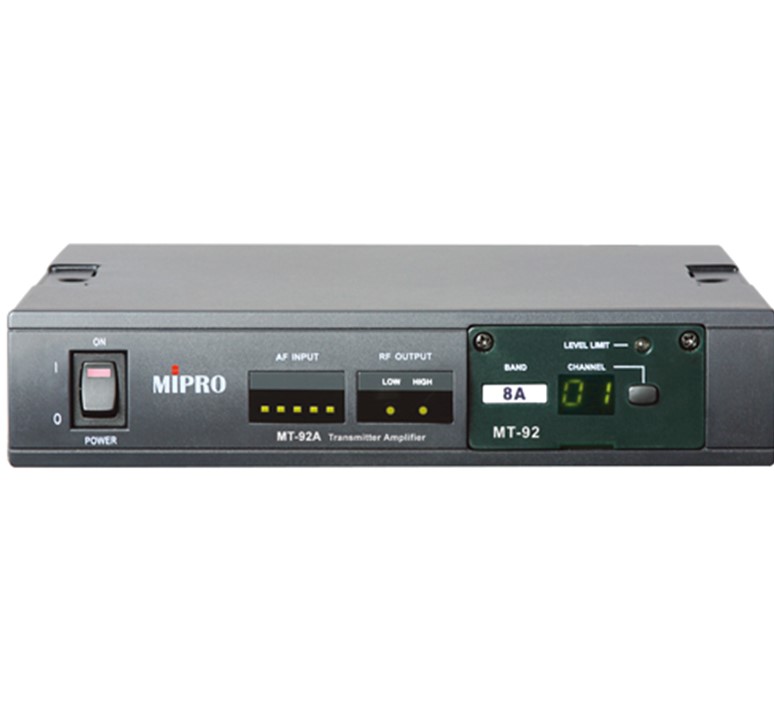

Mipro MT-92A draadloze interlink zender

Productbeschrijving

Features:
– modular design for easy installation and maintenance
– 16 selectable channels available by a push of a button
– numeric LED clearly indicates working channel
– high/low power output selectable
– LED indicators for RF and audio signal strength
– supplies +48 V phantom power for condenser microphones

Specificaties

– frequency range UHF 620 – 934MHz
– bandwidth 24MHz
– oscillation mode PLL synthesized
– frequency stability +/- 0,005% (-10 – + 60C
– modulation type FM modulation
– output power < 100 mW (low), < 500 mW (high)
– spurious < 4 nW
– frequency response 80 Hz – 15 kHz
– THD < 0,5% (at 1kHz, max. deviation)
– audio input XLR/6,3mm combo jack
– input sensitivity mic or line level
– input sensitivity control adjustable control for input gain
– phantom power switch on/off

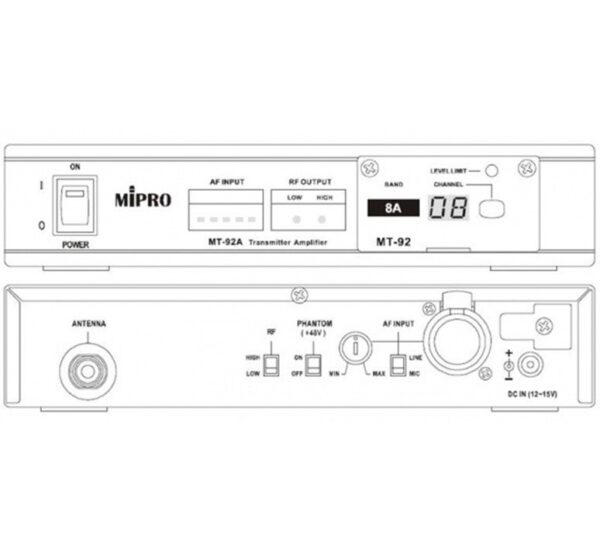

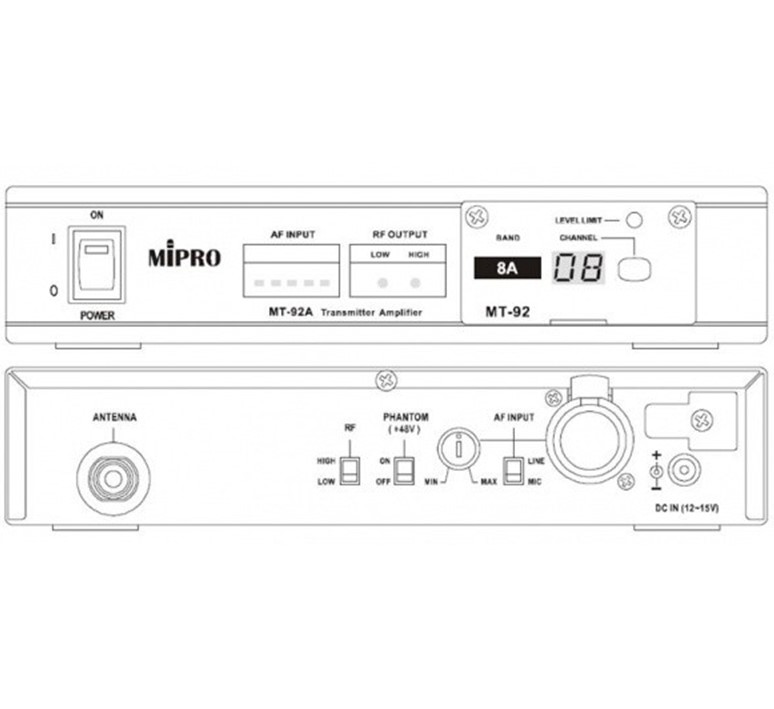

– panel display AF meter, AF limit, RF hi/low power indicators, numeric channel
– antenna connector 1x TNC 50 Ohm impedance
– dimensions W x H x D 210 x 44 x 206mm
– weight approx. 1,1kg
