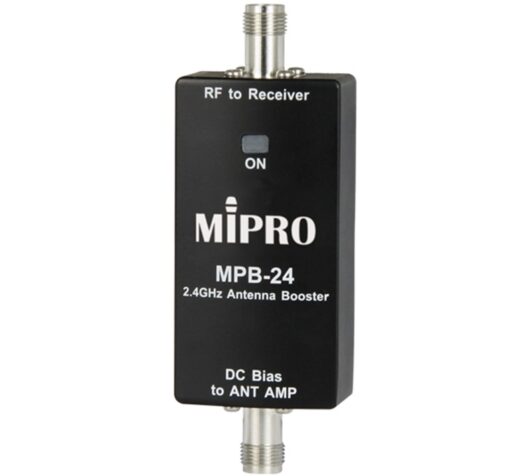

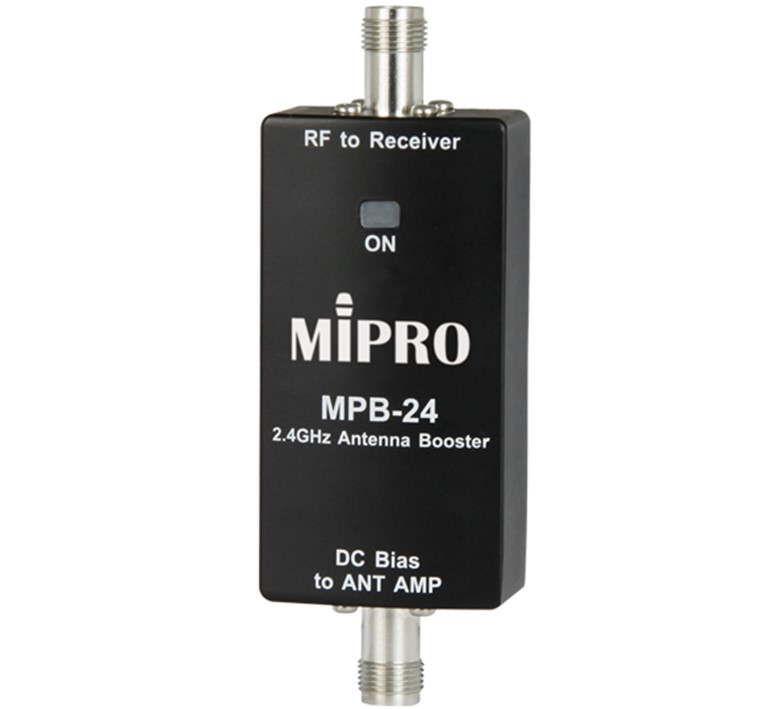

Mipro MPB-24 2,4GHz antenne booster

Productbeschrijving

MPB-24 2,4 GHz antenna booster the industry’s first MPB-24 2,4GHz antenna booster is optimized in the 2,4GHz frequency range to amplify the antenna signals, offering 20 dB gain to compensate for signal loss due to long antenna cables to enhance the reception range and signal stability.

With an aluminum casing, it features superb heat dissipation characteristics and constant stability.

Specificaties

– frequency range 2,4 – 2,4835 GHz
– gain fixed 20 +/- 1dB
– input/output connector 1 to 1 TNC 50 Ohm impedance
– input power 10 – 24V/DC (min. 350 mA)
– regulated power output equals to the bias
– dimensions W x H x D 114 x 24 x 41mm
– net weight approx. 226gr
