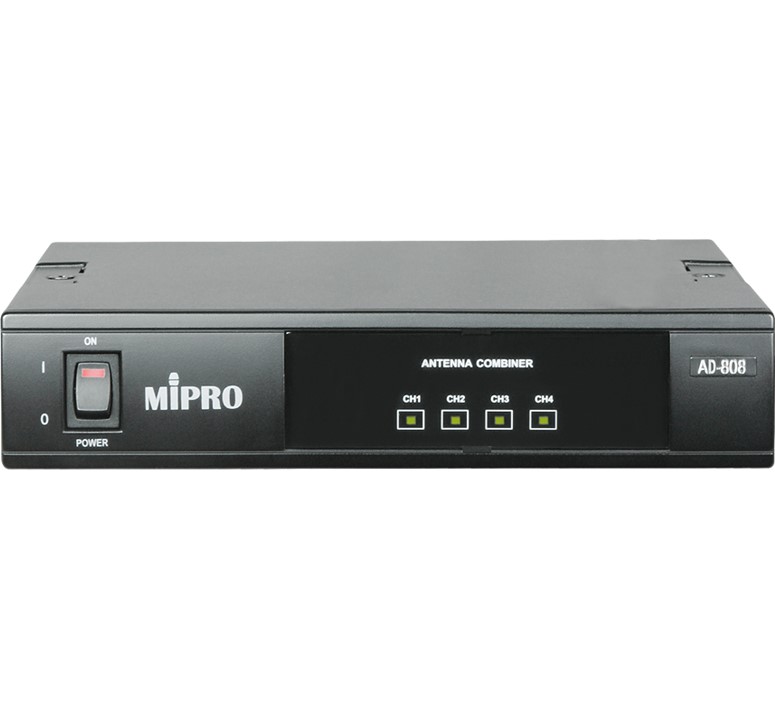

Mipro AD-808 actieve antenna combiner voor 4x IEM zender (alle merken) 4 inputs > 1 output

Productbeschrijving

Features:
– wideband frequency ranges from 470 – 960 MHz
– operates with up to 4 transmitters
– input signal indicator (threshold above +6 dBm)
– maximum RF input power +20 dBm (100 mW)
– ideal intermodulation characteristics
– 3rd order IM < -57 dBc under full band performance +15 dBm two-tone test

Specificaties

– frequency range UHF 470 – 960 MHz
– full system gain 0 +/- 2 dB
– VSWR input/output < 1.5:1
– maximum RF input power +20 dBm (100 mW)
– input signal indicator threshold +6 dBm
– power consumption 9,12 W (12 V, 760 mA)

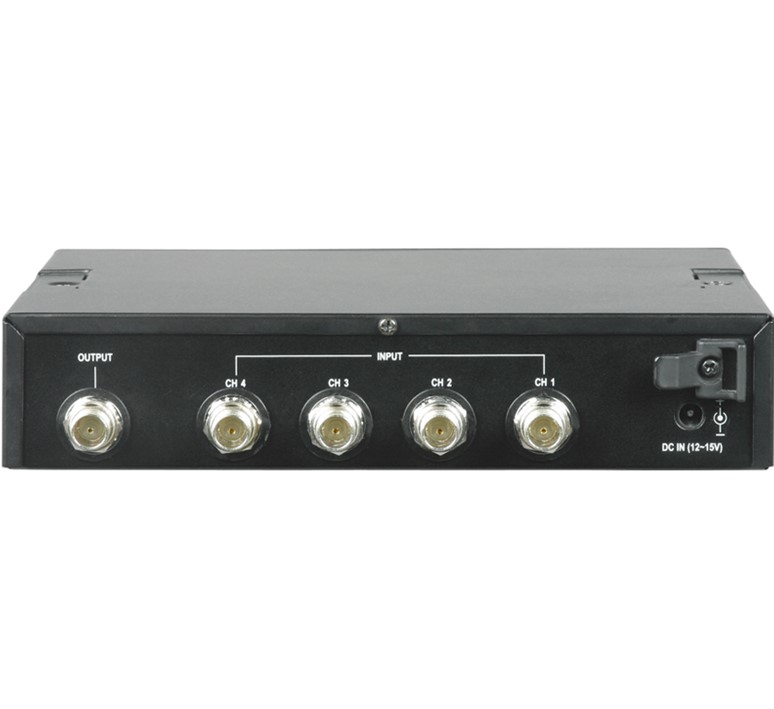

– input/output connectors TNC female (4-input, 1-output)
– system impedance 50 Ohm
– dimensions (W x H x D) 210 x 44 x 206 mm
– weight 1,1 kg
