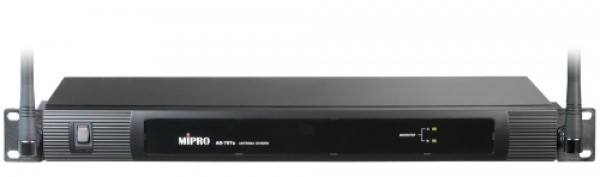

Mipro AD-707A 4 Kanaals antenne distributie systeem voor ACT serie ontvangers NIET MEE LEVERBAAR ZIE AD-708

Productbeschrijving

Features:
– Optimized for 470-850MHz carrier frequency range
– compatible with US and EU telecom regulations
– A single AD-707a supports up to four UHF diversity receivers from just a pair of antennas, greatly reducing antenna installations clutter and increasing receiving range and efficiency.
– Adopts the latest high dynamic range and low noise component, advanced circuit design featuring very low inter-modulation distortion and eliminates the spurious interference in multiple system usage.
– System output gain equals to approximately 1.

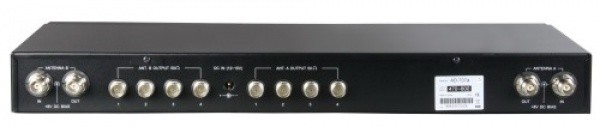

– 2 sets of antenna input/output connectors and 2 sets of 4-channel antenna output connectors for directly connecting to 4 sets of diversity receivers.
– The antenna input connector can be fitted with whip antenna or coaxial antenna of appropriate frequency band.
– Besides, through optional booster, it also can be linked to ground plane antenna or UHF wideband log antenna.
– The output connectors can be linked to the input connectors of another antenna divider for extended antenna distribution.
– The input connectors provide DC bias for the antenna boosters or active directional antennas.
– Booster power indicator to detect the linkage of booster.

Specificaties

– Antenna Splitter 2 sets of 1-to-4 active divider output, 2 sets of 1-to-1 active divider output.
– Frequency Range 470-850MHz
– IIP3 +32dBm
– RF Output Gain +1.0dB +/- 1dB
– Input/Output Gain +1.0dB +/- 1dB
– Output Port Isolation >18dB at 400-1000MHz
– Filter Selection Low sideband >35dB, High sideband >30dB
– Impedance 50 Ohm
– Connector TNC female
– Antenna Input Power Supply Antenna A/B input port supplies bias 8.3V DC, 230mA max. to the booster.
– Power Supply 12-15V DC
– Current Consumption Approx. 190mA at 12V DC
– Dimensions 482(W) x 44(H) x 190(D)mm
– Weight Approx. 1.5kg

Note
– Refer to actual product in the event of product discrepancy.
