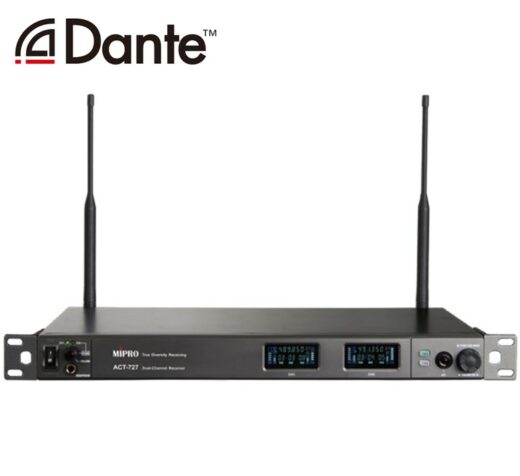

Mipro ACT-727 V2 19″ dubbele 1HE true diversity ontvanger (2x 104 freq.presets)

Mipro ACT-727 V2 19″ dubbele 1HE true diversity ontvanger (2x 104 freq.presets)

Artikelnummer: ACT727

890,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

1 op voorraad

  • 1 jaar jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

Features:
– EIA standard 1U rack-mountable metal receiver.
– Advanced true diversity technology for best reception quality.
– 104 selectable frequencies and 16 preset compatible channels per band. More with multiple bands.
– Industry’s only full-color VFD screen delivers a bright, clear viewing in day/night.
– Displays Group, Channel, Frequency, Performer’s Name, transmitter battery level, RF, Audio, – SQ level meters, diversity operation, RF interference warning indicator and Lock status.
– One-touch Autoscan for a clear, interference-free frequency.
– One-touch ACT syncs the transmitter and receiver frequency automatically.
– Dual “PiloTone & NoiseLock” circuits minimize interference.
– MIPRO RCS.Net software allows real-time computer set up, control and monitoring.
– Industry’s only RF interference warning indicator and control for management.
– Displays all pertinent parameters on the same screen for easy control and monitoring.
– All controls are intuitive and easily setup via a single rotary knob.
– RF, audio and transmitter battery status meters.
– Superb RF reliability and transparent audio performance.
– Receiver provides bias voltage for MIPRO antenna systems.
– 100m operating range.
– 100% made in Taiwan ensures high product quality and value.



Specificaties

– Receiver Bandwidth Narrow
– Channel Daul
– Chassis EIA standard 19″ 1U
– Display Color VFD displays Frequency, Frequency Code, RF & Audio Meters
– Transmitter Battery Meter, Diversity Signals, Interference Warning Indicator
– Programmable User Name, Group, -Channel, Squelch Meter, PC Address and Lock Status
– Frequency Range UHF 480-934MHz
– Bandwidth 24MHz
– Preset Frequencies 104 selectable channels
– Group 1-6 > 8 compatible channels
– Group 7-8 > 12 compatible channels
– Group 9-10 > 16 compatible channels
– Receiving Mode True diversity
– Oscillation Mode PLL synthesized
– Stability +/- 0.005% (-10 – +60)
– Sensitivity 6dBuV, at S/N>80dB
– S/N Ratio >105dB(A)
– T.H.D. <0,5% @ 1KHz
– Frequency Response 50Hz – 18KHz, with high-pass filter
– Squelch “PiloTone & NoiseLock” dual-squelch circuit
– Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
– Maximum Output Level Balanced: +16dBV / 0dBV / -6dB; Unbalanced: +10dBV / 0dBV / -6dB

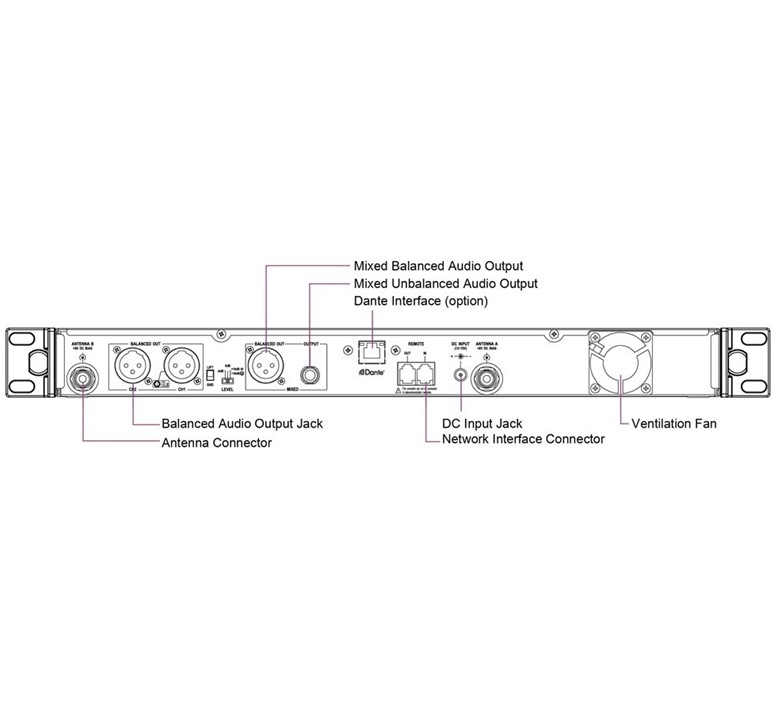

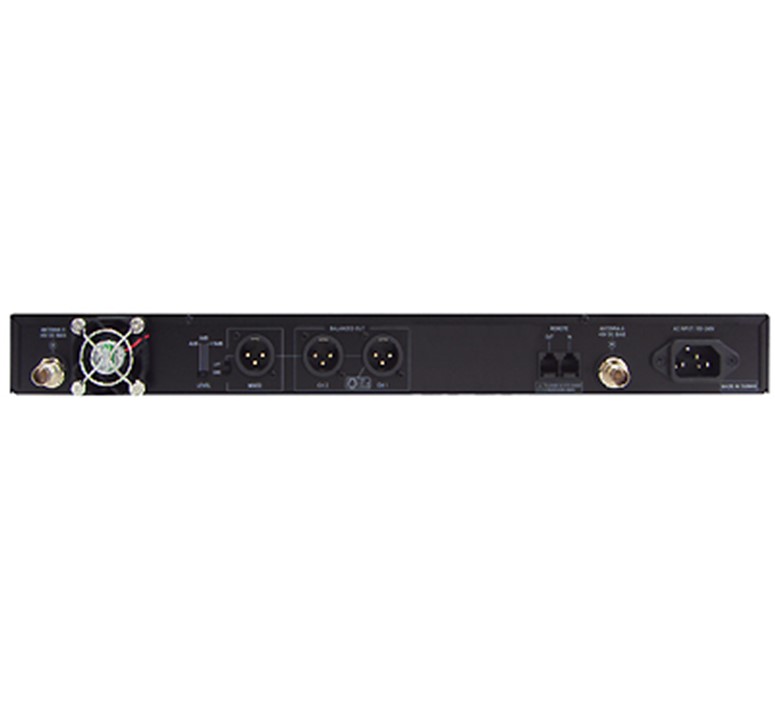

– Output Connectors Balanced XLR
– Output Switch Single channel output or mixed output
– Operation Manual or PC remote control via optional software
– Squelch Adjustment Rotary Controller
– Squelch Display VFD Screen
– Power Supply Built-in 100 – 240V AC Switching Power Supply
– Dimensions 482(W) x 44(H) x 266(D) mm
– Weight Approximate 3,0kg

Note:
– Refer to actual product in the event of product discrepancy.
– Frequency range and maximum deviation comply with the regulations of different countries.
