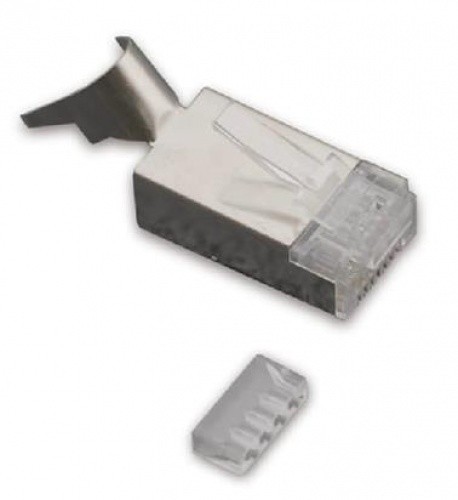

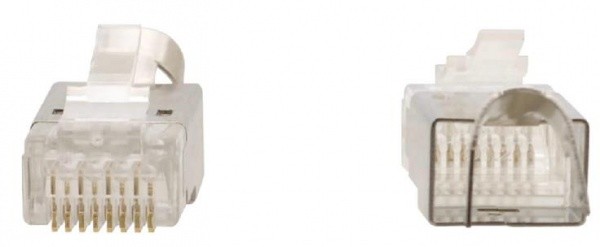

Kramer RJ-45 pers connector t.b.v. UNIkat Cat 6A kabel

Productbeschrijving

Krimp connector voor Kramer UNIkat en DGkat

Specificaties

– shielded RJ45 connector for CAT6/CAT6A cable
– applicable standards TIA/EIA-568C.2
– max current/Voltage 2A/250V
– contact resistance 20m Ohms
– insulation resistance 100M Ohms
– temperature rating (min/max): -25/55C
– max. insertion/extractions 200 mating cycles
– weight 6,8g
– plug housing Polycarbonate, UL94-V0
– contacts copper
– rear shield copper
– inner ferrule Polycarbonate
– wire AWG min/max (solid/stranded) 24AWG to 23AWG
– conductor diameter (min/max) 0,40/0,55mm
– cord diameter (max) 1,35mm
