Kramer RC-6iR 6 knops programmeerbare RS-232/IR inbouw sturing grijs of wit NIET MEER LEVERBAAR
Artikelnummer: RC6IR
Productbeschrijving

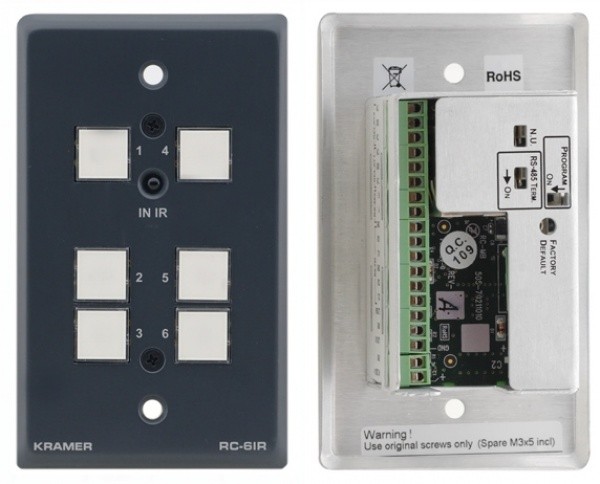

The RC-6iR is a 6-button room controller for multimedia rooms.
It controls audio components, video components, and other room facilities such as lights and screens.
6 Back Lit & Label Capable Buttons – Up to 15 commands per macro and 4 toggling macros per button.
Ethernet Port:
– Allows for easy setup with Kramer’s Windows-based configuration software from an internet connection anywhere in the world.
Note: Although under certain conditions the Ethernet port of the RC-6IR may be used to control an AV product, it is not designed for this purpose and we do not recommend doing this.
2x IR Port:
– IR Learning Function – Learn commands from IR remotes.
2x Relay Contact Closure Port:

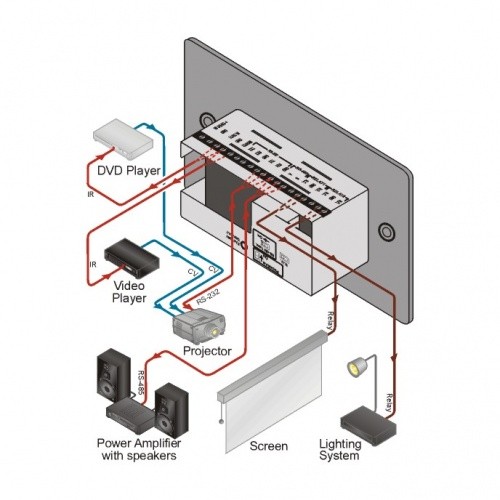

– Conveniently control other room items related to the AV system such as raising and lowering drapes, the screen or the projector.
2x Bidirectional RS-232 and 1 RS-485 Port:
– Control up to three additional devices via serial control protocols.
Lock Out Feature:
– The RC-6iR can be locked and unlocked to prevent tampering.
Specificaties
Ports:
– 2x RS-232 on terminal block connectors
– 1x RS-485 on terminal block connectors
– 1x Ethernet RJ-45 port
Outputs:
– 2x relays on terminal block connectors (36V AC or DC, 2A, 60V AC maximum on non- inductive load)
– 2x IR emitters on terminal block connectors
– 12V DC, 155mA
– weight 0,3kg approx

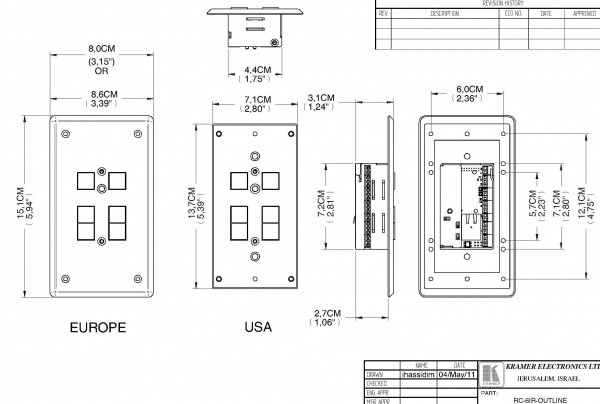

– dimensions 15,1cm x 3,14cm x 8,0cm (W x D x H)
– accessories Kramer 3.5mm to IR emitter control cable (C-A35/IRE-10), power supply
– two extra M3x5 screws, Java based control software (internal), Kramer’s Windows-based configuration software
– options RK-2WP 19″ rack adapter
