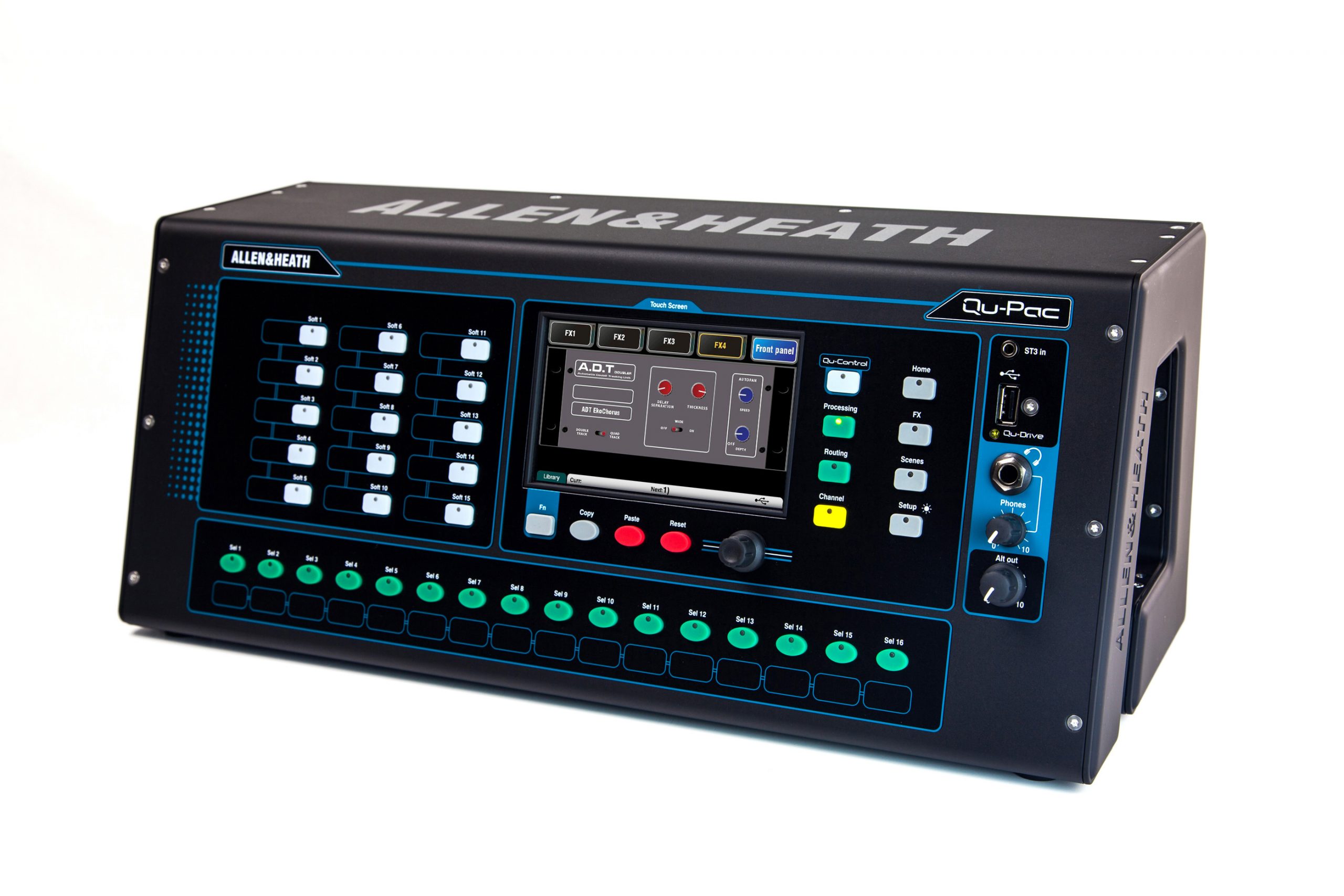

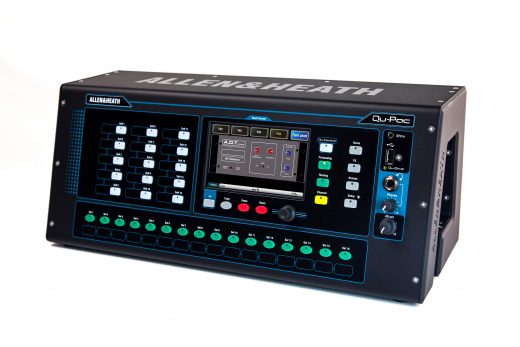

Allen & Heath QU-PAC portable rack digital mixer met 5″ touchscreen

Allen & Heath QU-PAC portable rack digital mixer met 5″ touchscreen

Artikelnummer: QUPAC

2.095,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw


  • 1 jaar jaar garantie
  • Gratis verzending v.a. €350,-

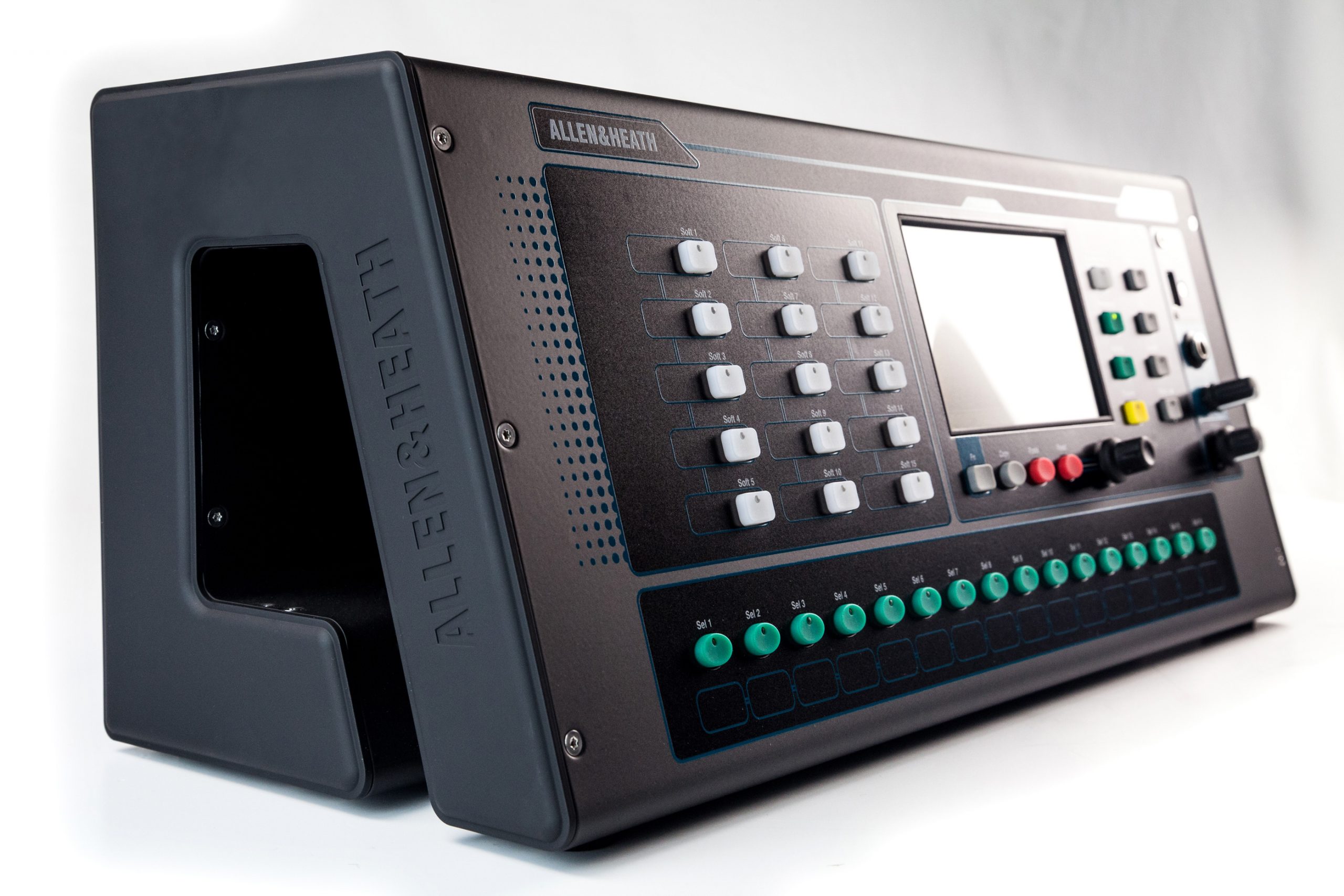

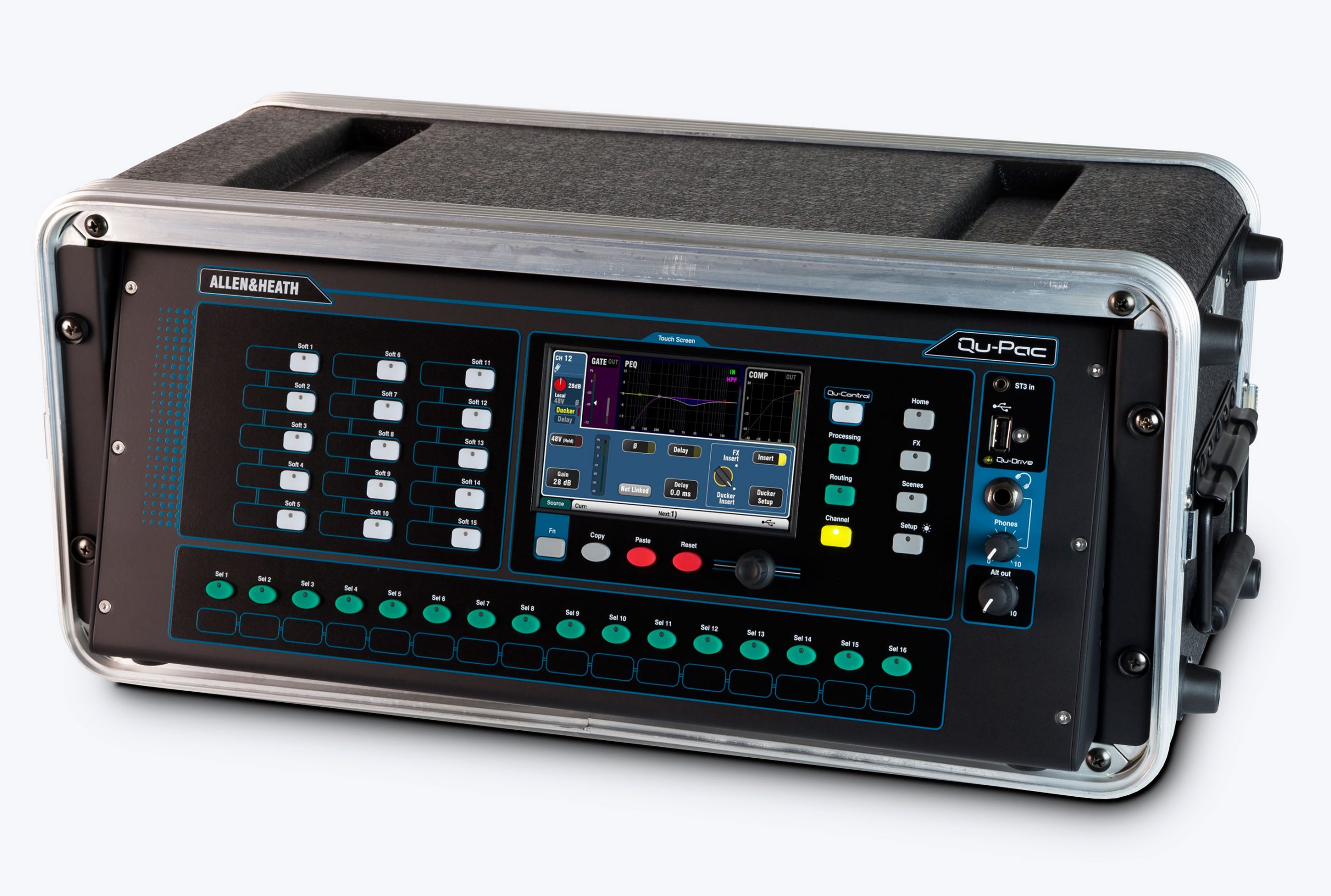

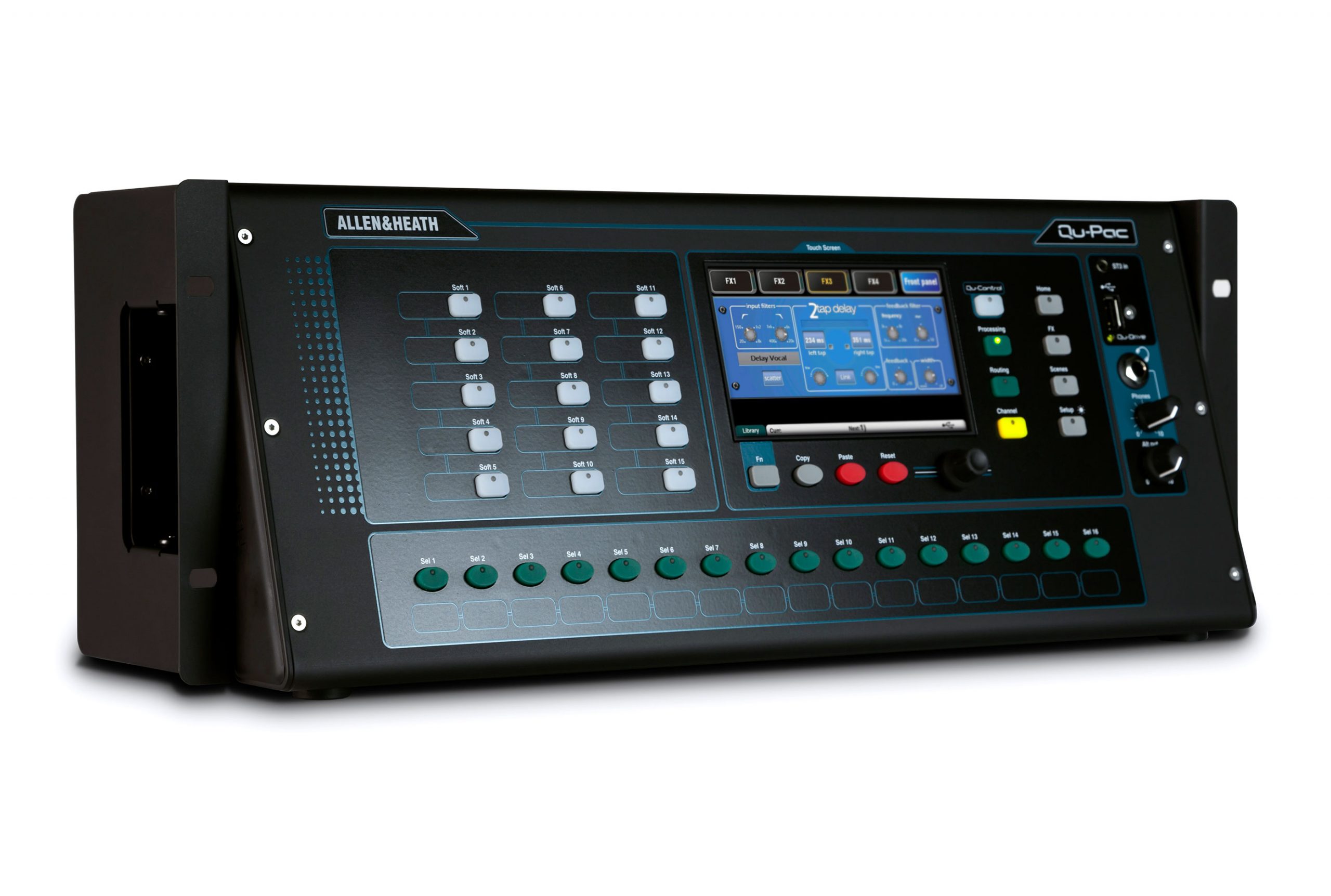

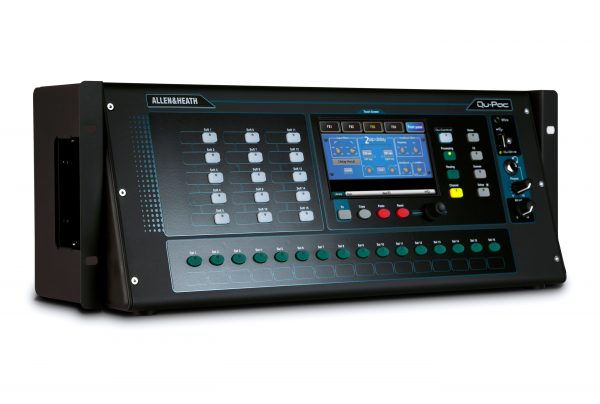

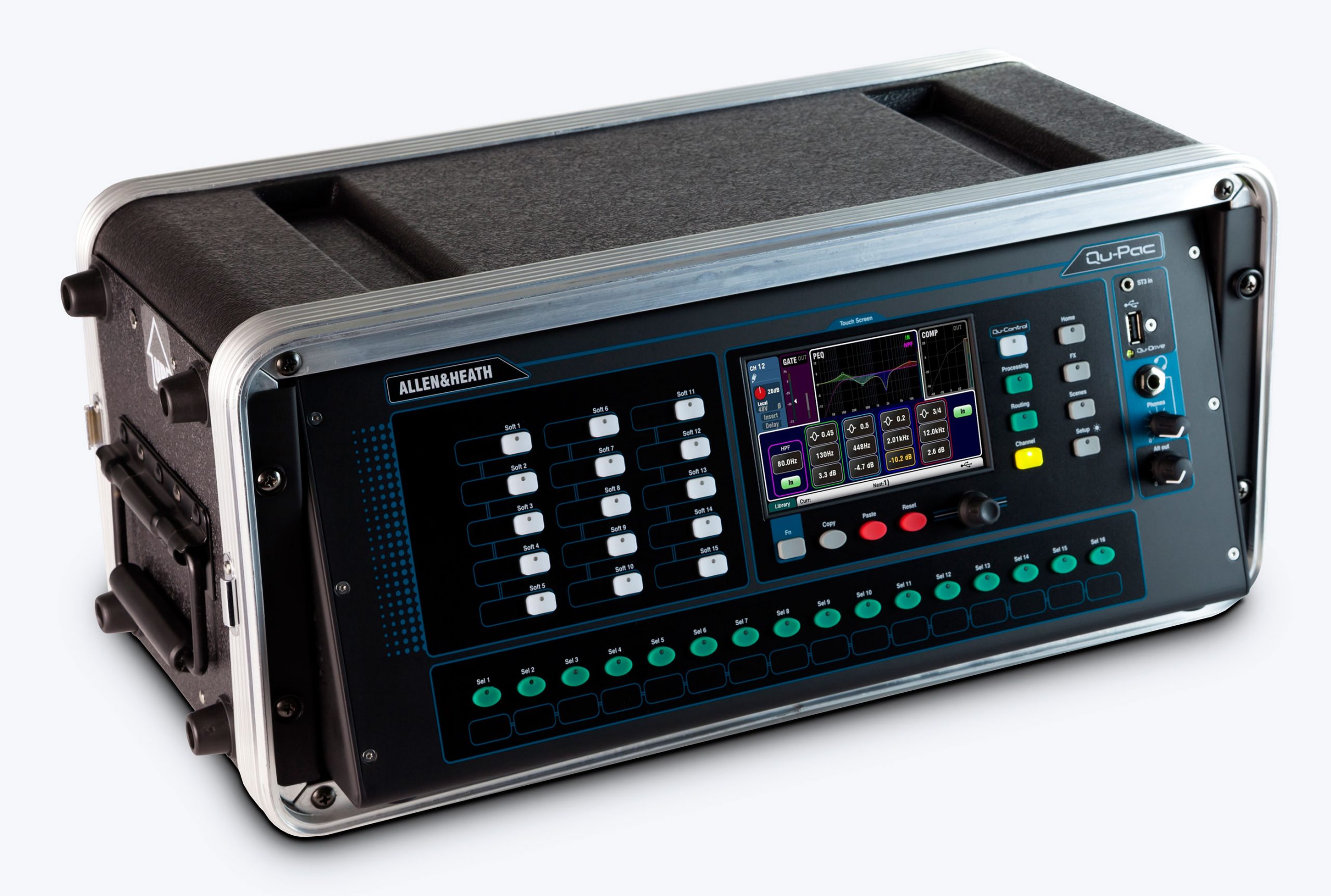

Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into an uber-compact desk or rack mount format.
Qu-Pac frees you to mix from your iPad, but the full functions of the mixer can also be accessed from the front panel and touchscreen.

With custom settings and Cat5 expansion up to 38 inputs, Qu-Pac provides a scalable, failsafe solution for hardworking bands, schools, hotels, corporate events, live music bars, conferences, personal mixing and many more scenarios requiring a pro mixing solution in a tiny footprint.

User permissions and the customizable Qu-Control screen make Qu-Pac convenient and safe for day-to-day use by non-technical staff.

– 16 acclaimed AnaLOGIQTM recallable preamps

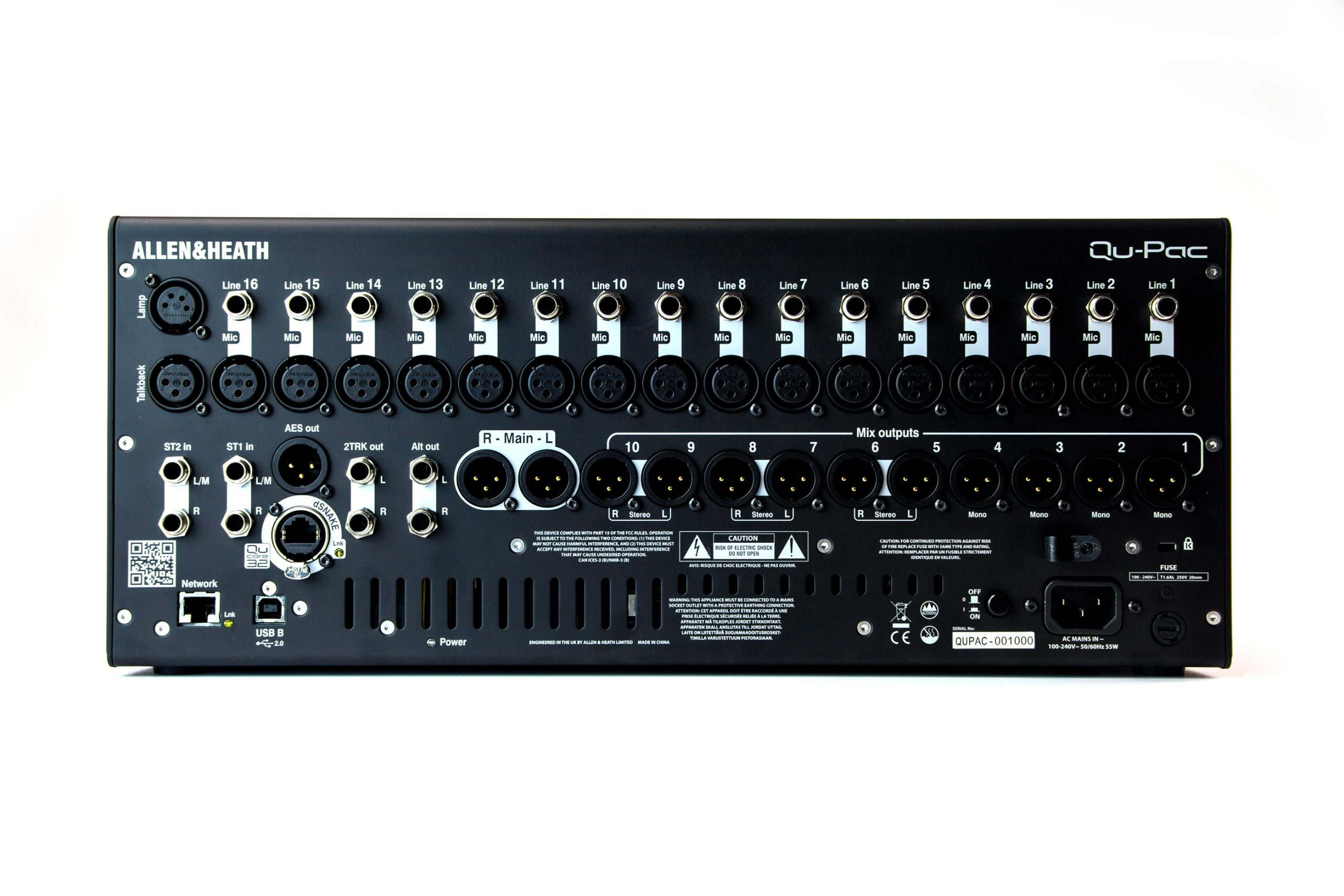

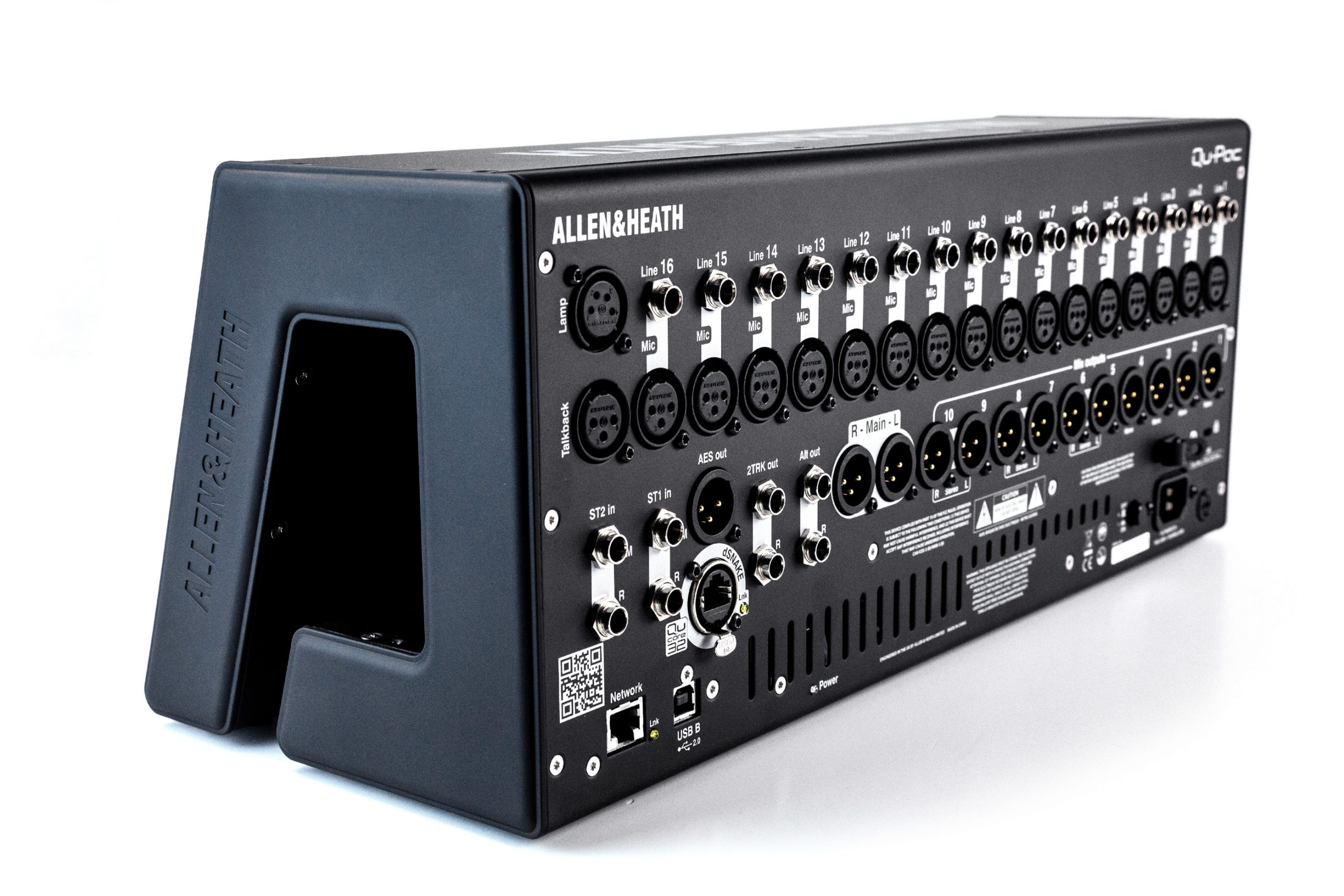

– 16 on-board Mic / Line Inputs (XLR / TRS)
– Expandable up to 38 inputs via dSNAKETM
– 3 Stereo Inputs (TRS)
– 32 Mono + 3 Stereo Input Channels
– 12 on-board Mix Outputs (XLR)
– 4 Stereo Groups
– 2 Stereo Matrix Outs
– AES Digital Out
– 4 DCA Groups
– 4 Mute Groups
– Qu-Pad iPad App for all live mixing controls
– Qu-You iPhone App for personal monitoring

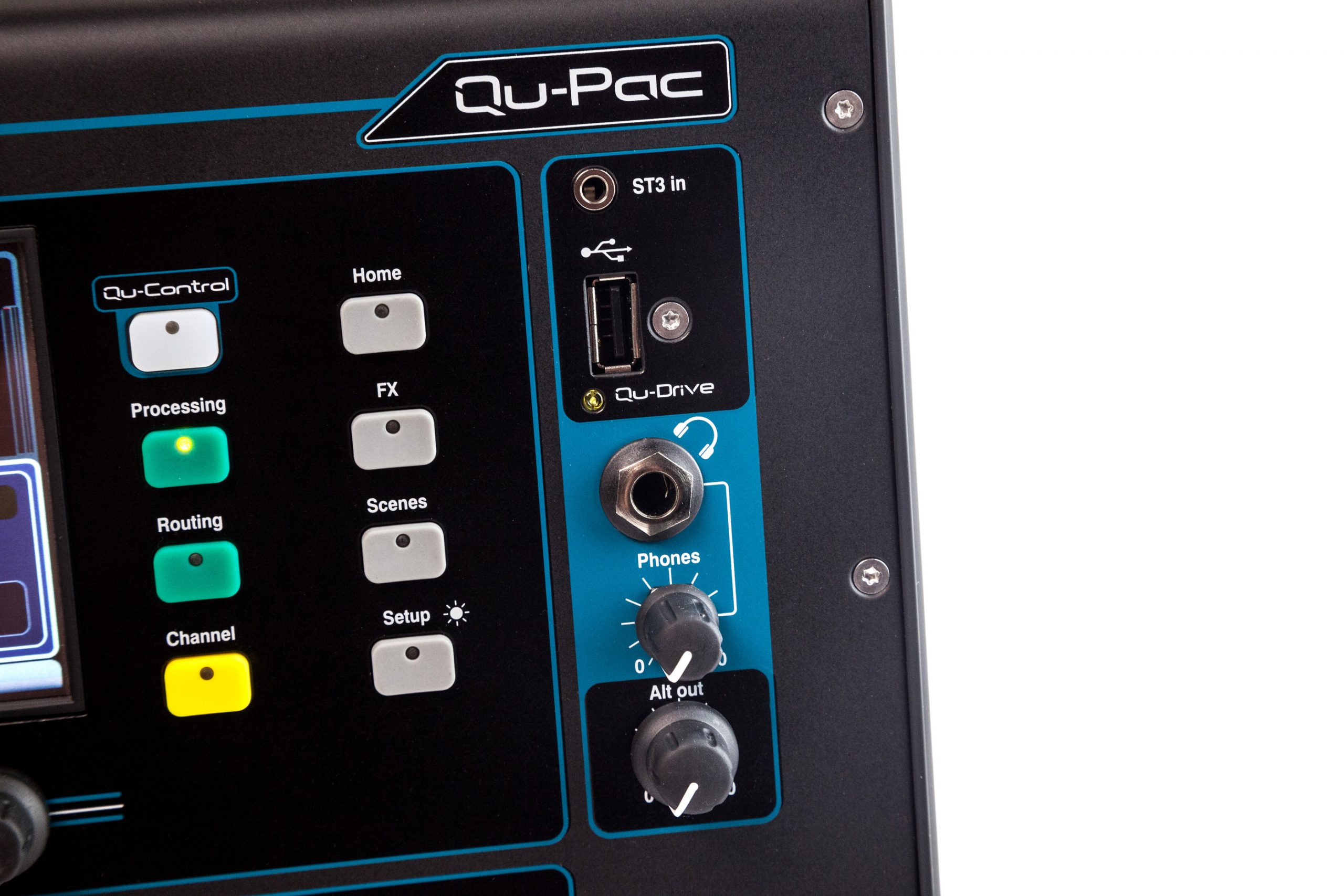

– Qu-Drive direct Multitrack Recording / Playback on USB drives
– 15 Soft Keys
– 16 Custom Select keys
– Qu-Control custom screen to suit application
– 4 FX Engines
– 4 FX Sends / Returns
– 32×32 USB Audio Interface
– 5” Touchscreen
– iLive FX Library
– Compatible with ME Personal Mixing System
– Trim, polarity, HPF, gate, insert / ducker, 4-band PEQ
– compressor and delay on all Inputs
– Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
– Built-in Signal Generator
– RTA with Peak Band indication

Add the Qu-Pad iPad app to your Qu setup and you’re free to adjust the monitors on stage, roam around the venue whilst tweaking the PA, and then mix the show from the heart of the audience.
Qu-Pad connects to the mixer over Wi-Fi and gives instant access to all live mixing parameters and settings.
Requires the connection of a Wi-Fi router or access point to the Qu Network port.

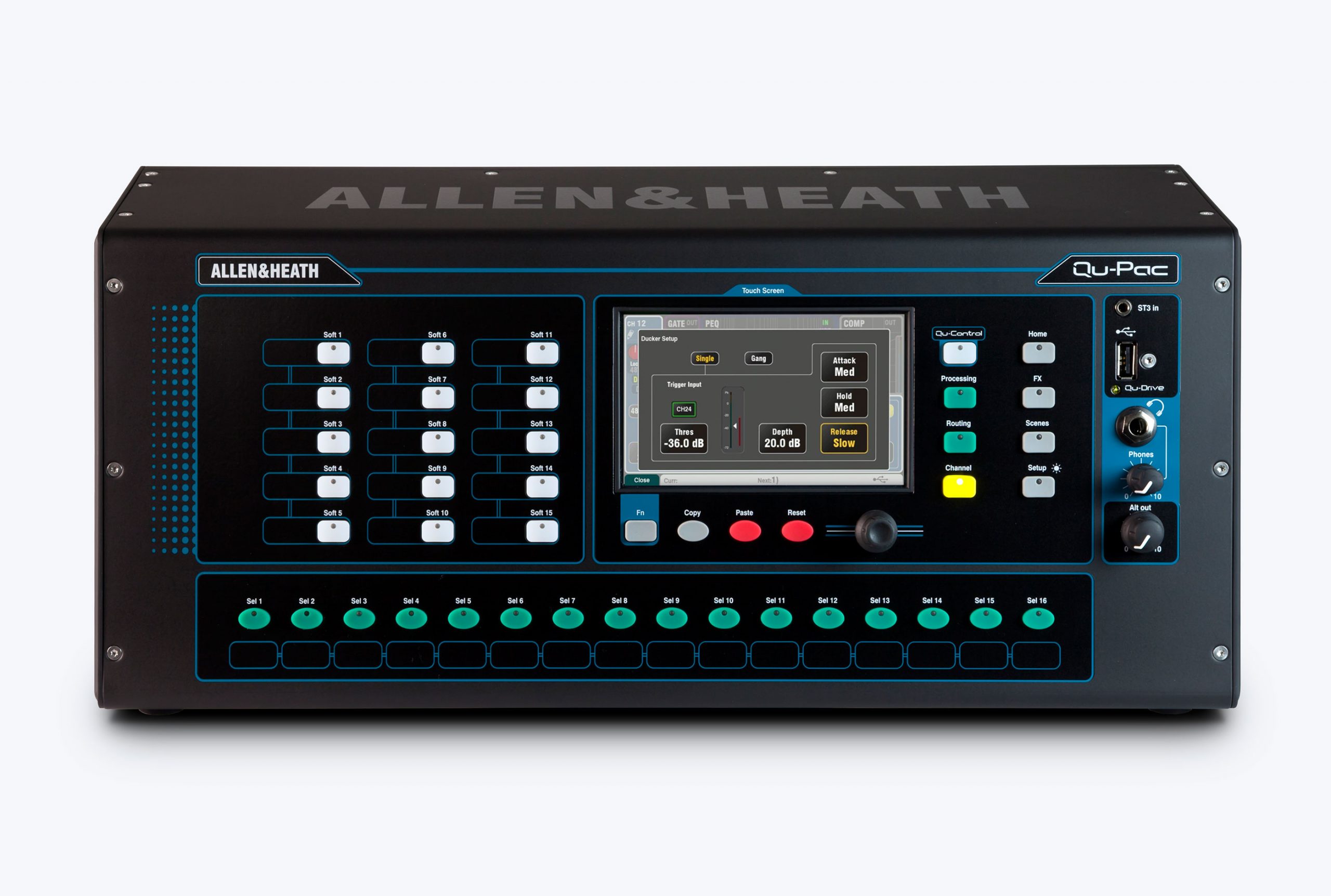

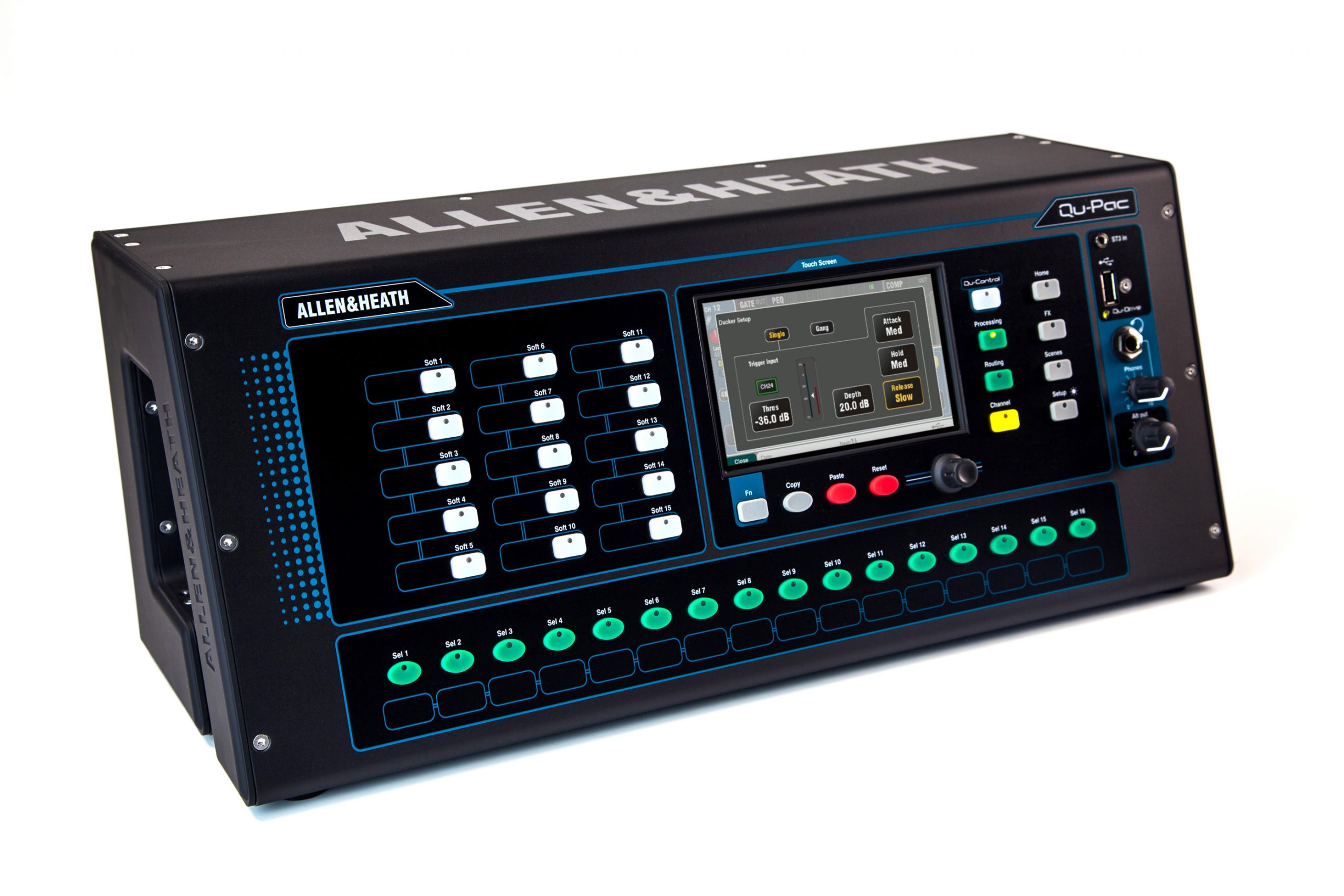

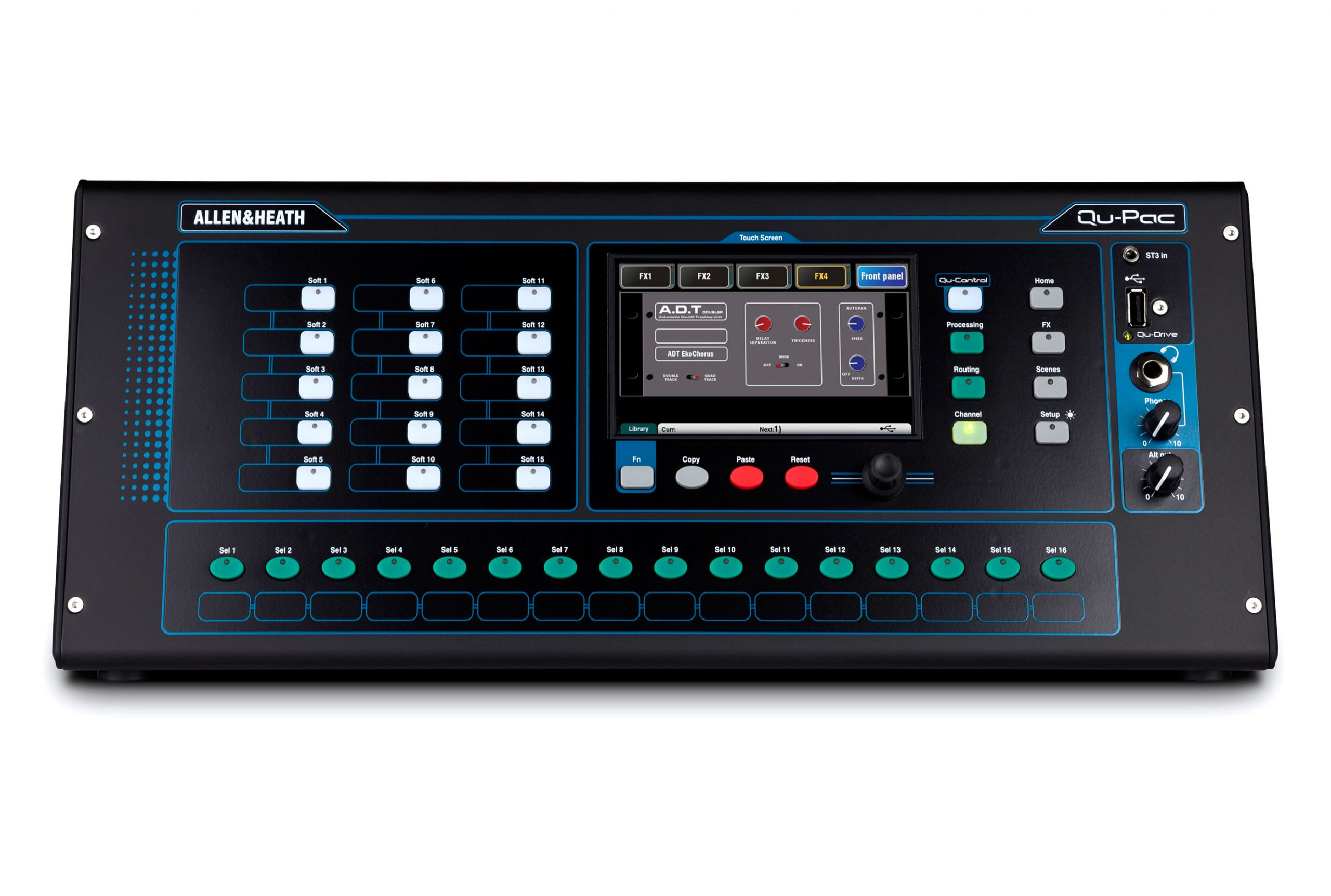

Qu-Pac’s 5 inch, 800 x 480, sixteen million colour Touchscreen and its dedicated data encoder form the heart of the Qu interface, providing super-fast, easy access to all settings.
The user-friendly interface has been designed with clarity in mind.
Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.

The Qu-Control key brings up a fully customizable screen which gives access to channels and settings tailored to the user and application.
Several ‘widgets’ can be assigned to the page, these include channel levels, mutes and assignment on/off switches and are arranged to suit the user requirement, for example as a source selection and level control of background music to one or multiple zones.

Our AnalogiQ total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency.
The analogue signal is captured by high class, low latency 24bit analogue to digital converters matched to high quality 24bit digital to analogue converters to deliver the required outputs.
The AnalogiQ design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.

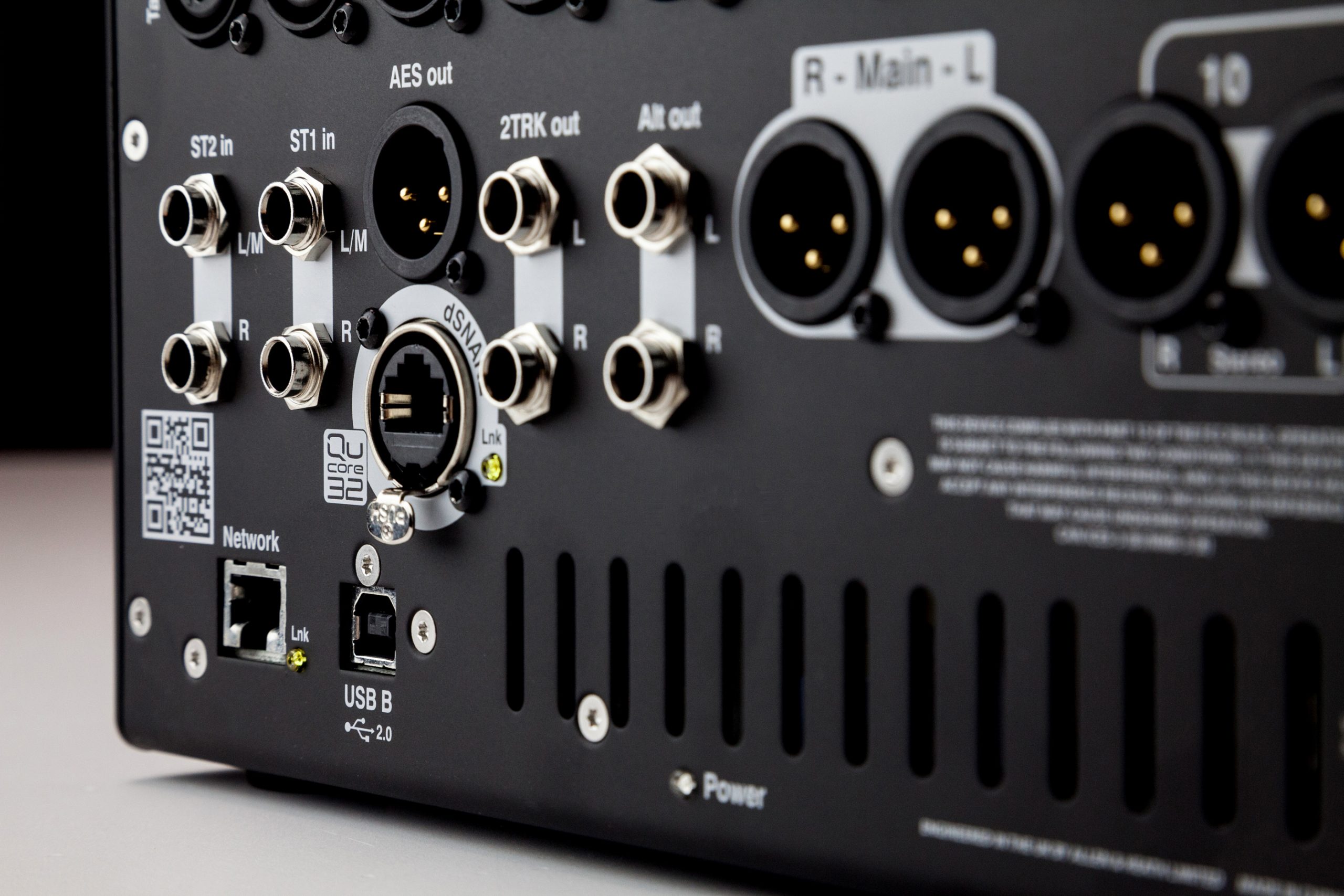

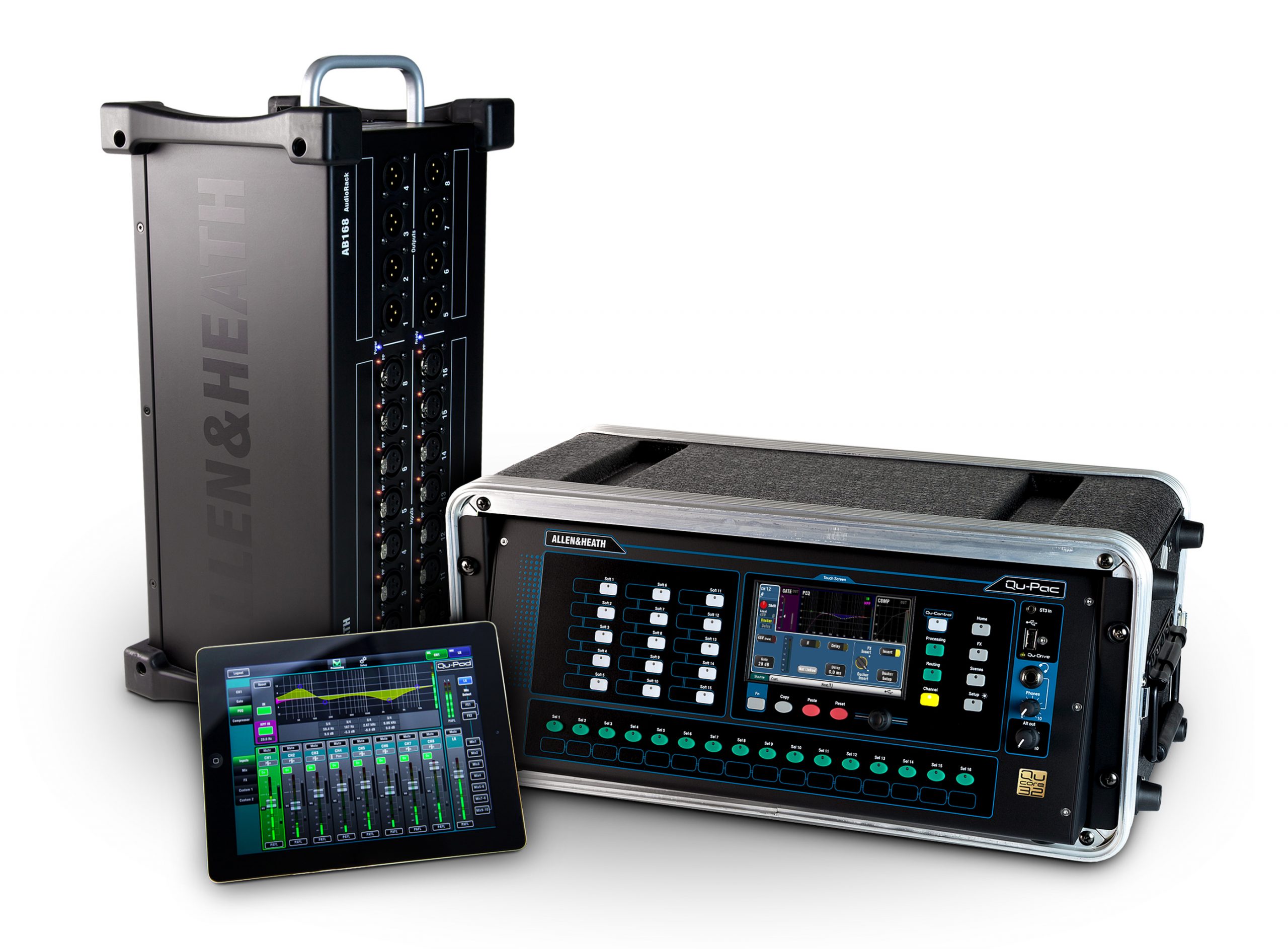

Qu mixers are self-contained, so if you’ve already got the analogue cables you’re good to go. If you’re thinking of trading in the copper multicore for a Cat5 digital snake, Qu’s dSNAKE port has you future-proofed, allowing connection to a combination of AR2412, AR84 or portable AB168 AudioRacks.

dSNAKE is our proprietary networking solution, boasting a transport latency of only 105us over cable runs of up to 120m.
So if you’re mixing FoH you can place your I/O on the stage and run a single Cat5 cable back to the Qu mixer in the mix position.

Qu’s dynamics and FX algorithms are derived from the FX used in our iLive pro touring series. Some of the world’s most respected audio engineers have chosen to use iLive’s FX on tour in preference to top-end plug-ins and external FX units. All Qu models boast 4 stereo iLive FX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more.

The FX library has the ability to grow with future firmware releases.
FX are returned to the mix on dedicated return channels, so you’re not tying up your mono and stereo input channels.
Each Stereo FX Return has a dedicated 4 band PEQ.
