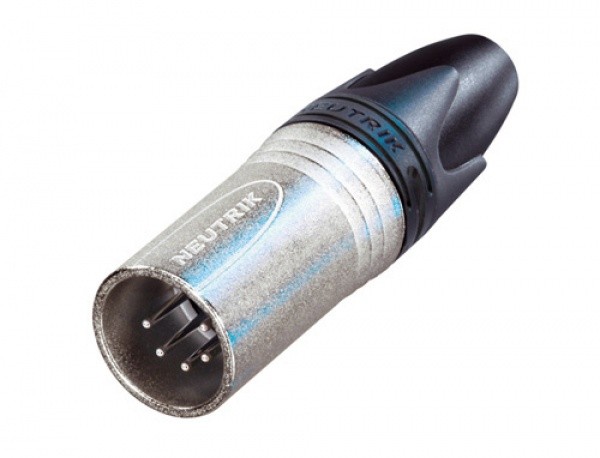

XLR 5p Male connector Nickel housing & silver contacts

XLR 5p Male connector Nickel housing & silver contacts

Artikelnummer: NC5MXX

7,25  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

4 op voorraad

  • 2 jaar jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

The next generation of the worldwide accepted standard of XLR cable connectors.
The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

5 pole male cable connector with Nickel housing and silver contacts.

Features & Benefits:
– Male connector with improved locking recess without “window”, more stringent housing
increases durability
– Improved chuck type strain relief provides higher pull-out force and makes assembly easier
and faster
– Boot with polyurethane gland gives high protection to cable bending stresses
– Colored rings and boots available for coding or identification
– Sleek and ergonomic design – valuable and handy
– Rugged zinc diecast shell, longlasting and dependable
– Internal thread on shell is well proteced against any damage



Specificaties

– Connector Type XLR
– Gender male
– Capacitance between contacts = 7 pF
– Contact resistance = 3 mO
– Dielectric strength 1,5 kVdc
– Insulation resistance > 2 GO (initial)
– Insulation resistance > 1 GO (after damp heat test)
– Rated current per contact 7,5 A
– Rated voltage 50 V
– Cable O.D. 3.5 – 8.0 mm
– Insertion force = 20 N
– Withdrawal force = 20 N
– Lifetime > 1000 mating cycles
– Wire size max. 1.0 mm
– Wire size max. 18 AWG
– Wiring Solder contacts
– Locking device latch lock
– Boot Polyuretan
– Bushing Polyamide (PA 6 15% GR)
– Contact plating 2 um Ag over 2 um Ni
– Contacts Brass (CuZn39Pb3)
– Insert Polyamide (PA 6.6 30 % GR)
– Locking element Zinc diecast (ZnAl4Cu1)
– Shell Zinc diecast (ZnAl4Cu1)
– Shell plating Nickel
– Strain relief Polyacetal (POM)
– Flammability UL 94 HB
– Standard compliance IEC 61076-2-103
– Protection class IP 40
– Solderability Complies with IEC 68-2-20
– Temperature range -30C to +80C
