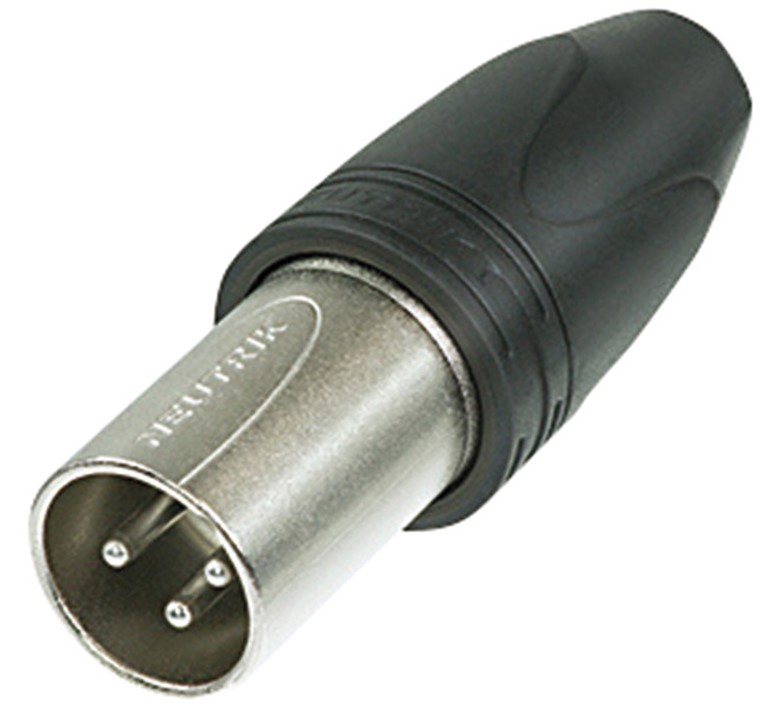

XLR 3p Male connector IP65

XLR 3p Male connector IP65

Artikelnummer: NC3MXXHDD

9,45  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • 2 jaar jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

The Neutrik XX-HDD Series is a “heavy duty” XLR cable connector for outdoor use.
All metal design, dust and water protected according to IP 65 by mating with related XX-HD cable connector or MPR-HD chassis connector.
Gold contacts are standard.

Features:
– “Heavy duty” cable connector for outdoor use
– Rubber sealing jacket protects against water ingress and mechanical shock
– Rugged zinc diecast shell, long-lasting and dependable
– Internal thread on shell is well protected against any damage



Specificaties

Electrical:
– Capacitance between contacts ≤ 4 pF
– Contact resistance ≤ 3 mOhm (inner)
– Rated current per contact 16 A
– Rated voltage 50 V
Mechanical:
– Cabel O.D. 3,5 – 8,0 mm
– Wiresize max. 2.5 mm
– Wiresize max. 14 AWG
– Wiring Solder contacts
– Locking device Latch lock
Material:
– Boot Polyurethan
– Contacts Brass
– Insert Polyamide
– Shell Zinc diecast
– Shell plating Nickel
– Strain relief Polyacetal
Environmental:
– Flammability UL 94 HB
– Standard compliance IEC 61076-2-103
– Protection class IP 40
– Solderability Complies with IEC 68-2-20
– Temperature range -30C to +80C
