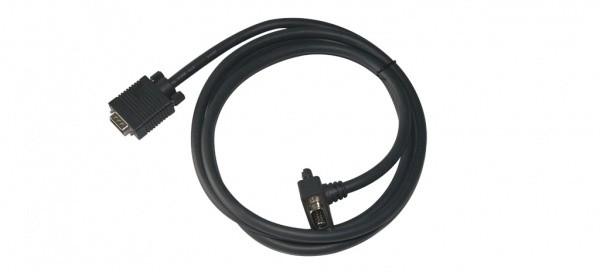

VGA kabel Kramer 0,9m Male/HAAKS Male

VGA kabel Kramer 0,9m Male/HAAKS Male

Artikelnummer: 115321

18,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • Gratis verzending v.a. €350,-

Productbeschrijving

Kramer’s GM/GM and GM/GF computer graphics videocables are high performance cables with molded 15-pin HD connectors on both ends.
They are used for connecting computer graphics video signals between computers or video scalers and plasma, LCD or other popular display technologies.

– Quality Construction
– High resolution 26 gauge mini coax for video.
– Easy Installation – Pre-terminated with molded 15-pin HD connectors, gold plated pins and thumbscrews for easy connection.
– Varied Selection of Lengths – Available in 1 to 150 foot versions (0,3m to 45,7m).



Specificaties

– Attenuation (dB/100 ft.):
– -0.5 dB @ 1MHz.
– -1.3 dB @ 5 MHz.
– -1.9 dB @ 10 MHz.
– -4.0 dB @ 50MHz.
– -5.7 dB @ 100MHz.
– -8.0 dB @ 180MHz.
– -14.0 dB @ 400MHz.
– Conductor: 26 AWG 7/34 tinned copper.
– Dielectric: Foam polyethylene with red, green, blue color coding.
– Shield: (A) 90% spiral 38 AWG tinned copper. (B) aluminum-foil/mylar 25% overlap rate.
– Inner Jacket: PVC.
– Jacket Colors: Black.
– Outer Jacket Color: Dark gray w/white lettering.
– Outer Diameter: 0.393 inches, 10.0mm.
– UL: CL2.
– CSA: C(UL) CL2.
– Conductors: 26 AWG 7/34 tinned copper.
– Jacket: HD-polyethylene.
– Diameter: 0.34 inch, 0.88mm.
– Jacket Colors: Red, orange, brown, yellow, black, red/black.
– Shield: (A) 85% braid 36 AWG tinned copper. (B) aluminum-foil/mylar 25% overlap rate.
– Outer Jacket: PVC.
– Temperature: – 20 to 75 celsius.
– Conductor: 26 AWG 7/34 tinned copper.
– Jacket: HD Polyethylene.
– Diameter: 0.34 inch, 0.88mm.
– Shield: (A) 85% braid 36 AWG tinned copper. (B) mylar 25% overlap rate.
– Jacket Colors: White & white/black, red & red/black.
– Center Conductor: 0.019 inches, 0.48mm.
– Dielectric: 0.076 inches, 1.95mm.
– Individual Coax: 0.102 inches, 2.6mm.
