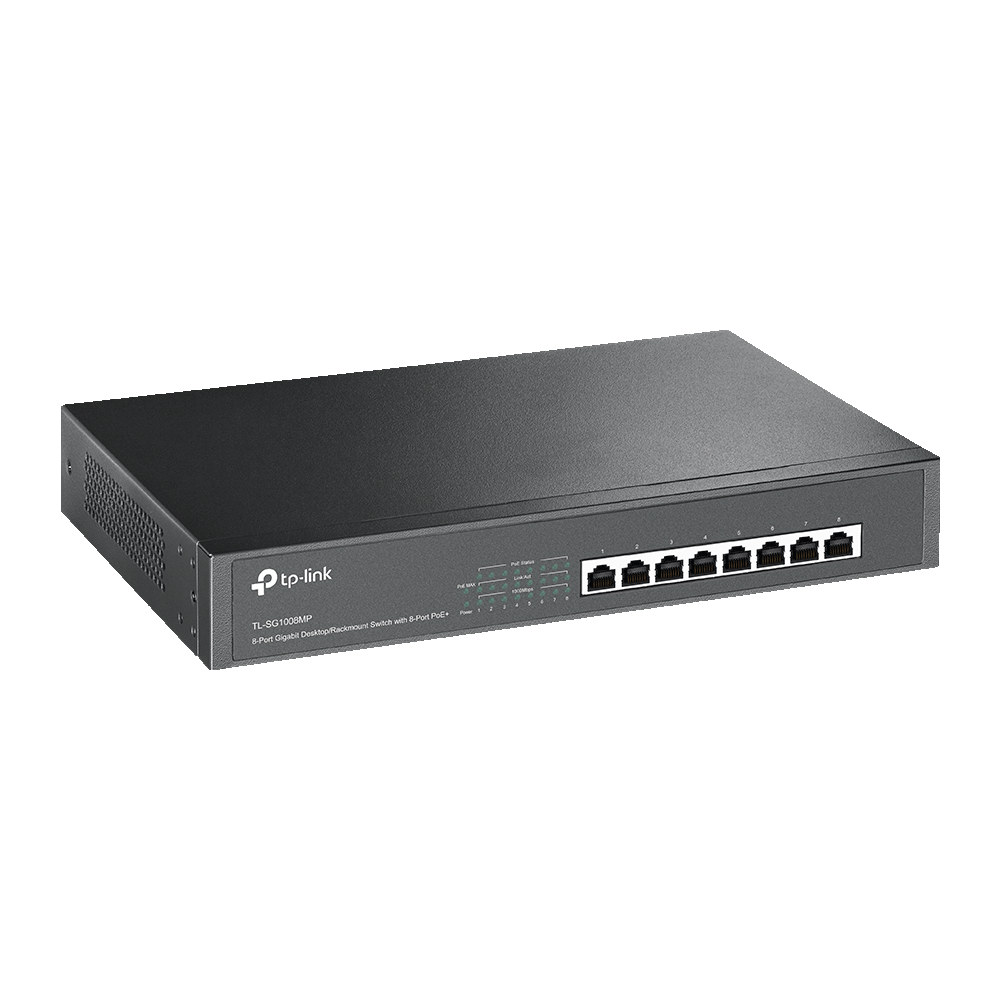

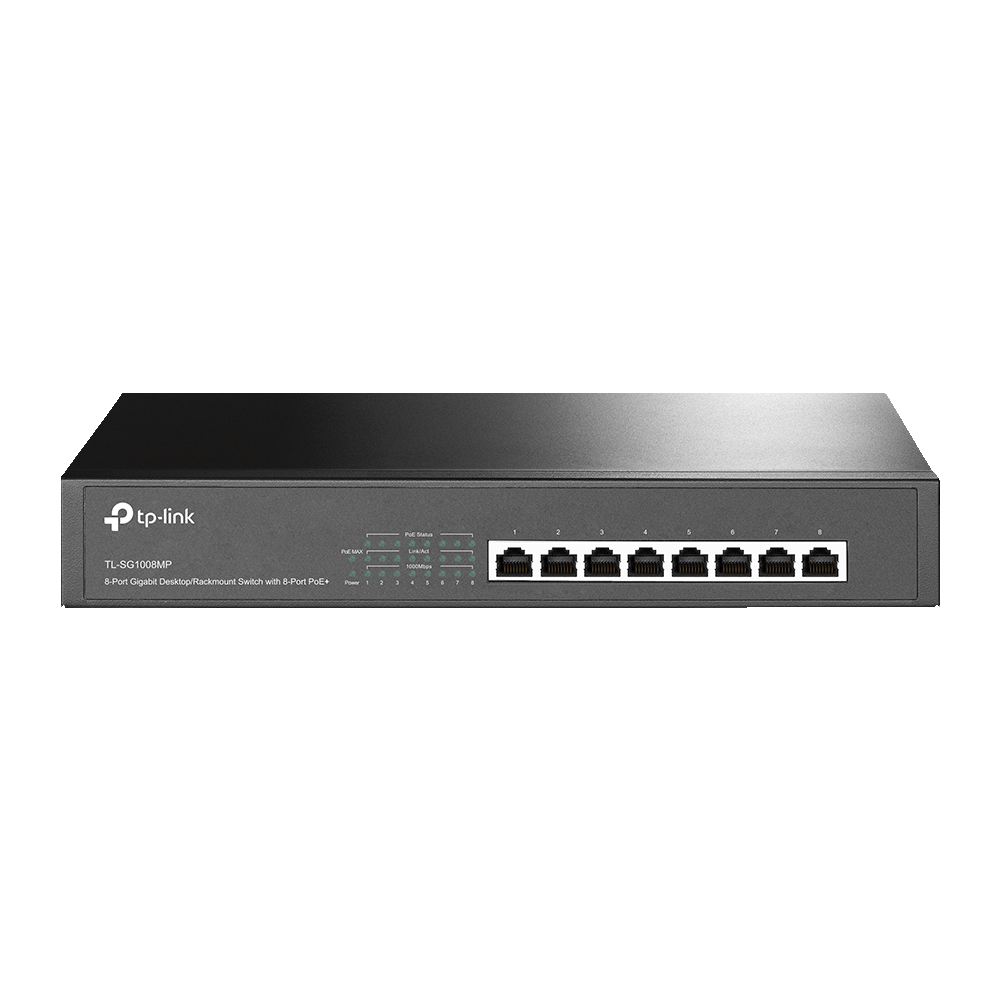

TP-Link 8-poort Gigabit 19″ rackmount switch met 8x PoE+ IEEE 802.3af/at

Productbeschrijving

8-poort Gigabit 19″ rackmount switch met 8-poort PoE+POE voor oa Bose CC-1 (2 &3)D wandreglaars

Features:
– 8x 10/100/1000Mbps RJ45 ports
– equipped with 8 PoE+ supported ports to transfer data and power over a single cable
– works with IEEE 802.3af/at compliant devices, expanding home and office networks
– innovative energy-efficient technology reduces power consumption by up to 75%
– supports PoE+ standard with total power budget of 126W and up to 30W per port
– plug and play design, no configuration required

Specificaties

– interface 8x 10/100/1000Mbps RJ45 ports
– auto negotiation/AUTO MDI/MDIX
– netwerkmedia 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100Ohm STP (maximum 100m)
– 100BASE-TX UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100Ohm STP (maximum 100m)
– 1000BASE-T UTP category 5, 5e, 6 or above cable (maximum 100m)
– EIA/TIA-568 100Ohm STP (maximum 100m)
– 1x ventilator

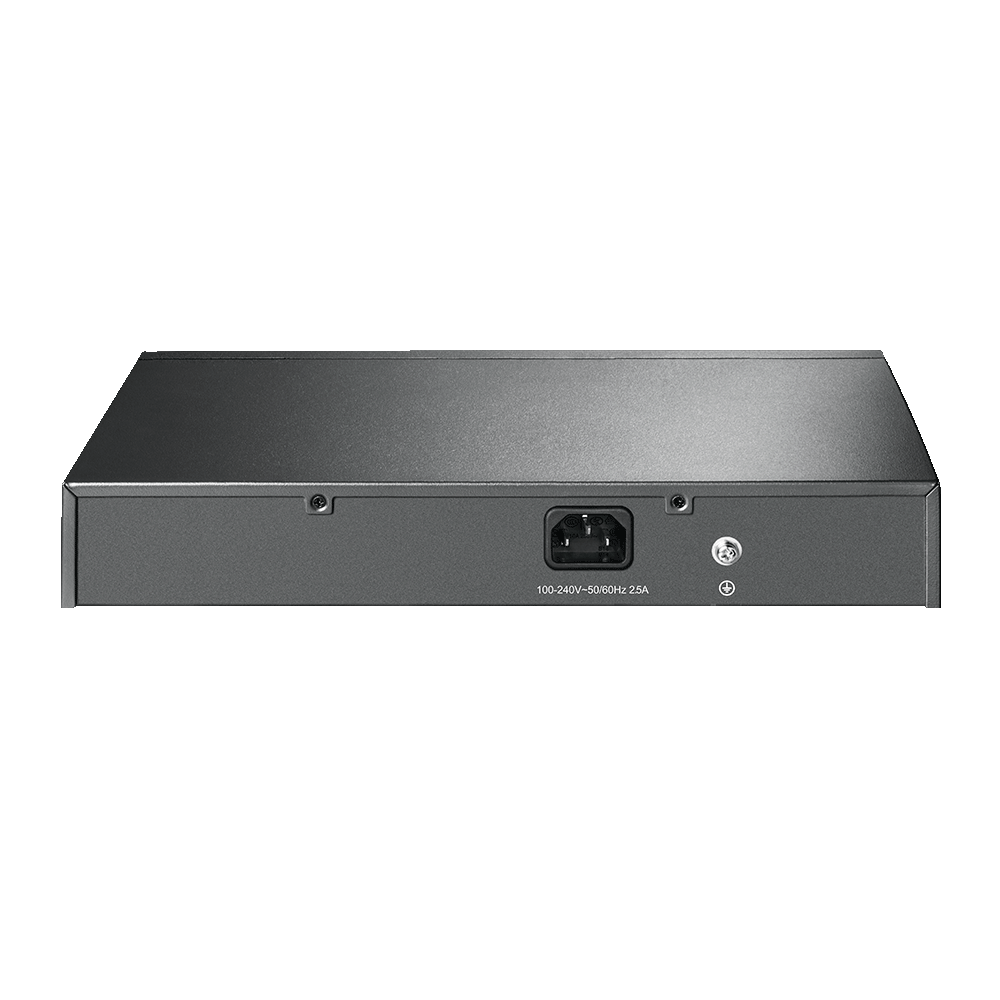

– uitgangsvermogen 100-240VAC, 50/60Hz
– PoE+ poorten (RJ45) standard 802.3at/af compliant
– 8 PoE+ poorten
– power supply 126W
– backbound bandbreedte 16Gbps
– adressentabel MAC 4K
– buffergrootte 1,5Mbits
– afmetingen (B x D x H ) 294 x 180 x 44 mm
– 19″ rack mountable
– max power consumption 9,89W(220V/50Hz. no PD connected), 140,67W(110V/60Hz. with 126W PD connected)
– max heat dissipation 33,74BTU/h(no PD connected), 492,56BTU/h (with 126W PD connected)
– compatible met IEEE 802.3af/at compliant PDs
– priority function
– Mac address auto-Learning and auto-aging
– IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode
– overdrachtsmethode store-and-forward
– certificatie FCC, CE, RoHS
– pakketinhoud TL-SG1008MP, power cord, installation guide, rackmount kit, rubber feet
– operating temperature 0 – 40C
– storage temperature -40 – 70C
– operating humidity 10% – 90% non-condensing
– storage humidity 5% – 90% non-condensing
