Tascam SS-R100 USB/SD/CF audio recorder 19″ 1HE

Tascam SS-R100 USB/SD/CF audio recorder 19″ 1HE

Artikelnummer: SSR100

525,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • 1 jaar jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

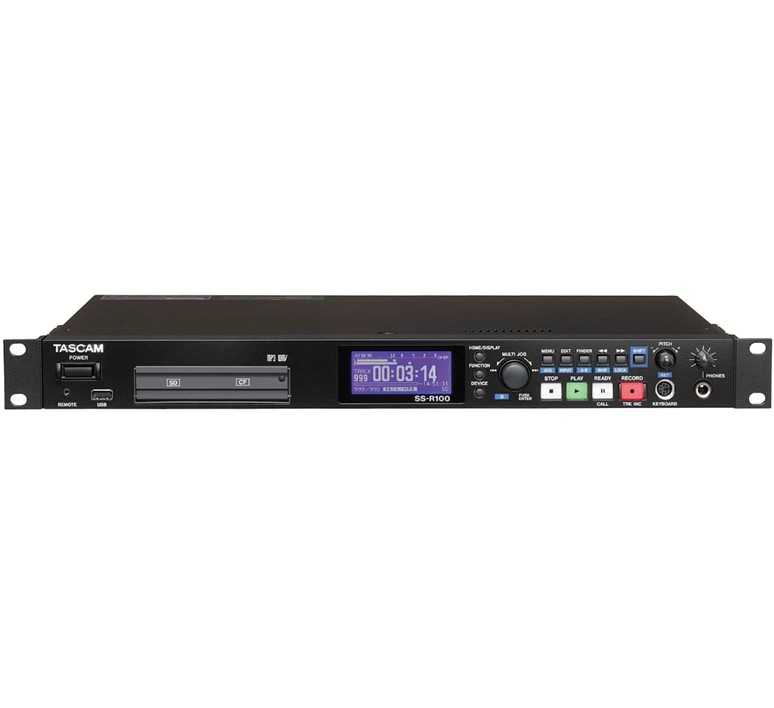

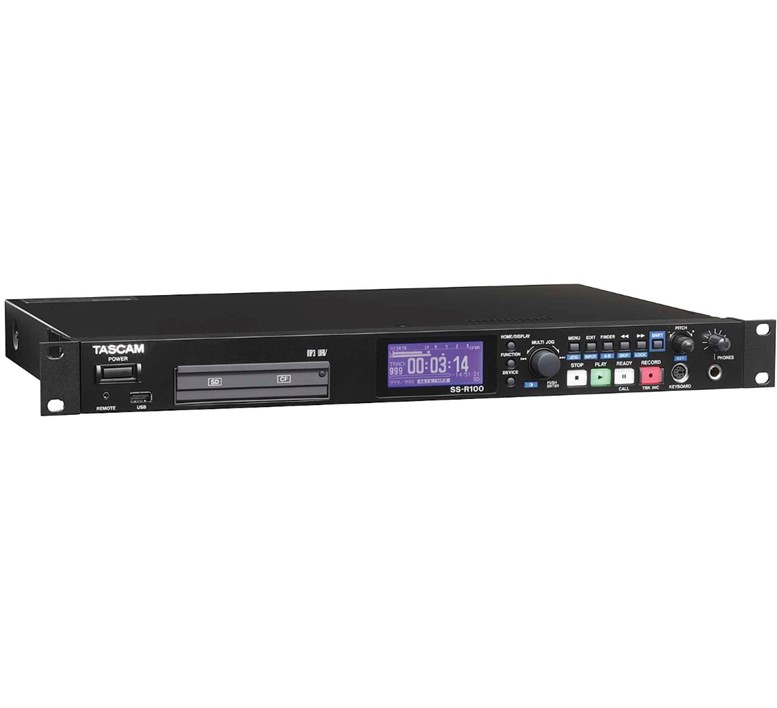

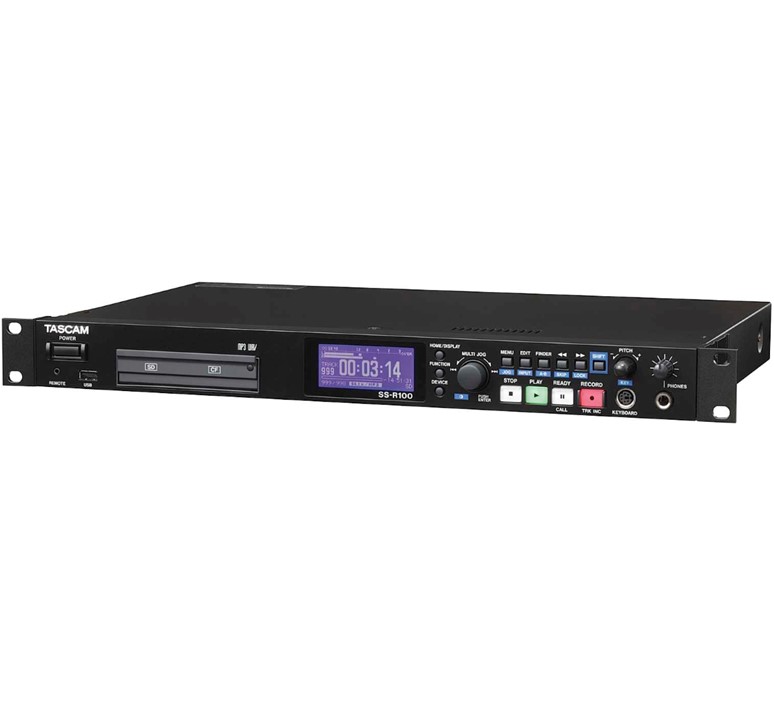

The SS-R100 is a single-rackspace solid state recorder designed for applications that currently use a cassette, CD or MiniDisc recorder.
The SS-R100 records to SD, CF or USB memory in WAV format – or in MP3 format to achieve extended recording times.

Solid State technology provides hours of recording to affordable and secure media, and recordings can be transferred quickly to computers for editing, archiving or publishing on the internet.

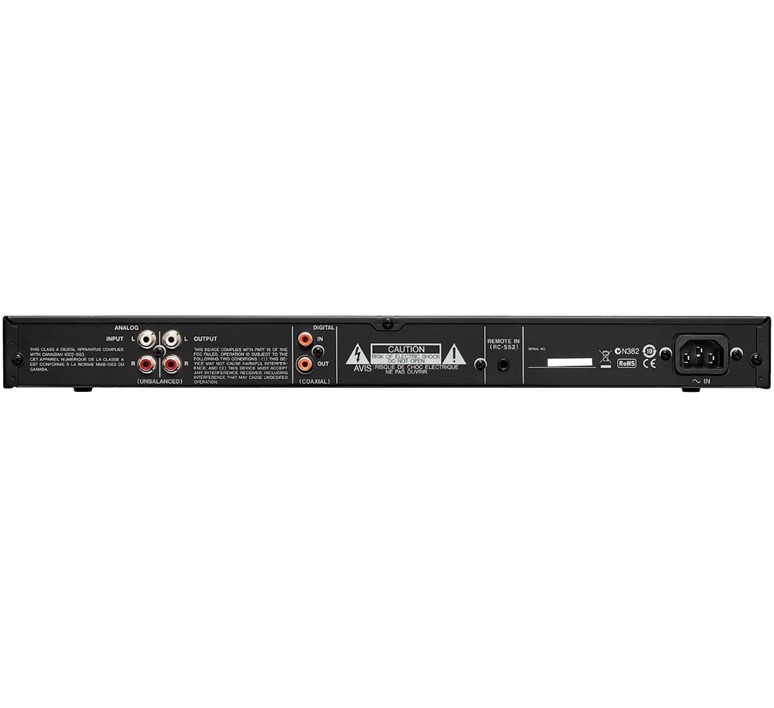

The SS-R100 is equipped with unbalanced audio inputs and outputs, SPDIF coaxial digital in and out with sample rate converter, a wired remote control and a computer keyboard input for folder/file naming and remote control.
And, of course, users don’t need to do without traditional features like pitch control, key control, auto cue, and many more.

Main Features
– solid state stereo audio recorder SD, CF or USB memory as recording media
– no moving mechanism for high reliability
– supports WAV and MP3 file recording/playback
– remarkable space-saving 1-U rack-mount unit
– ideal for replacement of current cassette deck, CD or MD recorder
– long-term recording for meeting minute recording
– long-term playback and various playback modes for sound installations
– 24-bit WAV file playback
– pitch control (+/- 16 %) and key control (+/- 6 semi-tones)
– auto cue, auto ready and call functions
– incremental playback
– resume playback
– linked playback (operate two units by one)
– sync recording (automatic recording start by input level)
– auto or manual track increment
– flash start feature (up to 20 tracks)
– edit functions for WAV files (divide, combine, erase, rename)
– ID3 tag and CD-Text display
– sampling rate converter
– dither function
– power-on play (timer function)
– built-in clock for time stamping
– RCA unbalanced analogue I/O
– coaxial SPDIF digital I/O
– mono mix playback
– computer keyboard input (PS/2 or USB) for folder/file name editing and remote control
– wired remote control included (5 m)
– footswitch for transport and pitch control available as an option (RC-3F)



Specificaties

Recording media:
– USB memory (512 MB – 64 GB)
– SD card (512 MB – 2 GB)
– SDHC card (4 – 32 GB)
– CF card (512MB – 64GB, Type I only)

Recording and playback file formats:
– MP3: 44.1/48 kHz, 64/128/192/256/320 kbps
– WAV: 44.1/48 kHz, 16-bit, 24-bit (playback only)
– Number of channels 2 channels (stereo) 1-channel (mono)

Analogue audio inputs and outputs:
– unbalanced analogue input RCA pin jack
– input impedance 22 kOhm
– nominal input level -10 dBV (0.316 Vrms)
– maximum input level +6 dBV (2.0 Vrms)
– minimum input level -20 dBV (0.1 Vrms) or more (min. input level adjustable)
– unbalanced analogue output RCA pin jack
– output impedance 200 Ohm
– nominal output level -10 dBV (0.316 Vrms)
– maximum output level +6 dBV (2.0 Vrms)
– headphones output 6,3mm stereo jack
– maximum output power 2x 45 mW (THD 0.1% at 32 Ohm)

Digital audio inputs and outputs:
– digital audio input RCA pin jack
– formats IEC60958-3 (SPDIF) and AES3-2003/IEC60958-4 (AES/EBU)
– detected automatically
– supported input sampling frequencies 32-48 kHz
– digital audio output RCA pin jack
– formats IEC60958-3 (SPDIF) and AES3-2003/IEC60958-4 (AES/EBU)
– switchable

Control inputs and outputs:
– remote connector (REMOTE, for RC-3F and RC-20) 2,5mm TRS jack
– USB port USB A-type 4-pin
– protocol USB 2.0 HIGH SPEED (480 Mbps)
– computer keyboard connector mini-DIN connector (PS/2)
– remote connector (REMOTE IN, for RC-SS2) 3,5-mm TRS jack

Audio performance:
– frequency response 20 Hz – 20 kHz, +/- 0,5 dB
– distortion 0,005% or less
– S/N ratio 95 dB or more
– dynamic range 95 dB
– channel crosstalk 95 dB
Note: All ratings are for performance when recording according to JEITA CP-2150 standards

Power supply and other specifications:
– power supply AC 100-240 V, 50-60 Hz
– power consumption 20 W
– dimensions (W x H x D) 483 × 45 × 301 mm
– weight 3,4 kg
– operating temperature range 5-35C
