Tascam SD-20M 4 sporen solid-state SD recorder 19” 1HE met 2x mic. XLR ingangen NIET MEER LEVERBAAR ZIE Tascam SS-R250N

Prijs op aanvraag
Tascam SD-20M 4 sporen solid-state SD recorder 19” 1HE met 2x mic. XLR ingangen NIET MEER LEVERBAAR ZIE Tascam SS-R250N

Artikelnummer: SD20M


Mail ons voor meer informatie

Productbeschrijving

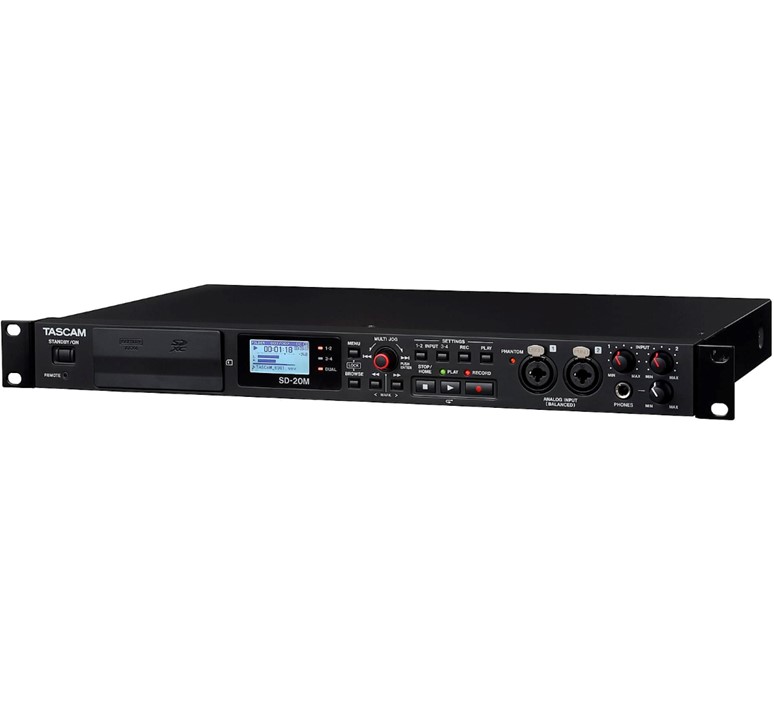

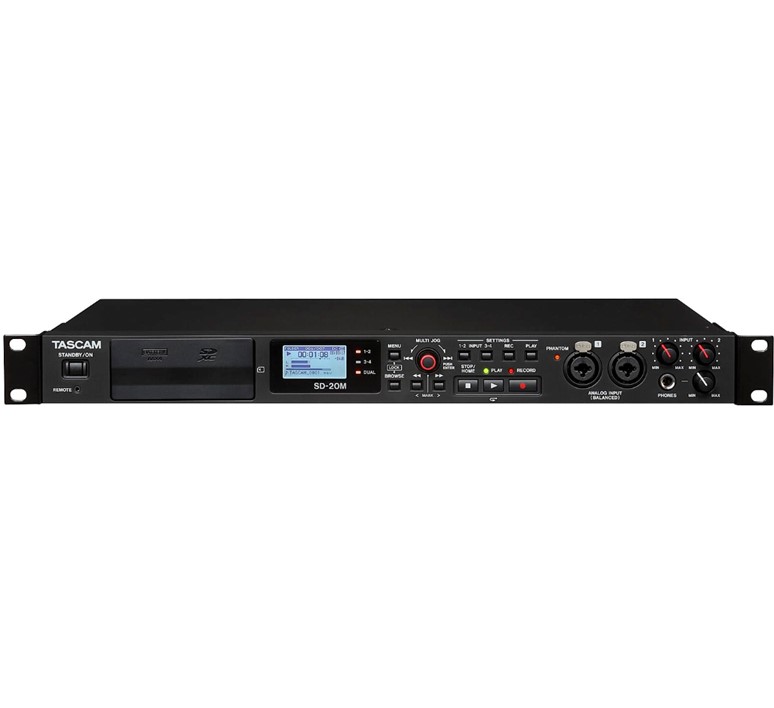

The SD-20M is a simple-to-use solid-state recorder at a breakthrough price.
The 1-U rackmount includes a pair of microphone preamps with phantom power for direct microphone recording.
Both the mic inputs and line inputs can be recorded simultaneously in four-track mode.
The dual recording mode captures a copy of your audio at a lower level, as insurance against distorted takes.

The SD-20M includes a battery backup system: AA batteries can keep recording for hours in case of power loss.
A wired remote or footswitch can be attached to control recording and playback.
Variable speed playback allows the playback to be changed without affecting the pitch.

Designed for installations like schools, house of worship, and conferences, the SD-20M is a flexible, affordable solution for long-form recording.



Specificaties

– recording media SD card (64 MB – 2 GB), SDHC card (4 GB – 32 GB), SDXC card (48 GB-128GB)
– recording/playback formats
BWF: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 16/24 bits
WAV: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 16/24 bits
MP3: 44.1/48 kHz, 32/64/96/128/192/256/320 Kbit/s
– 4 channels (stereo x 2)

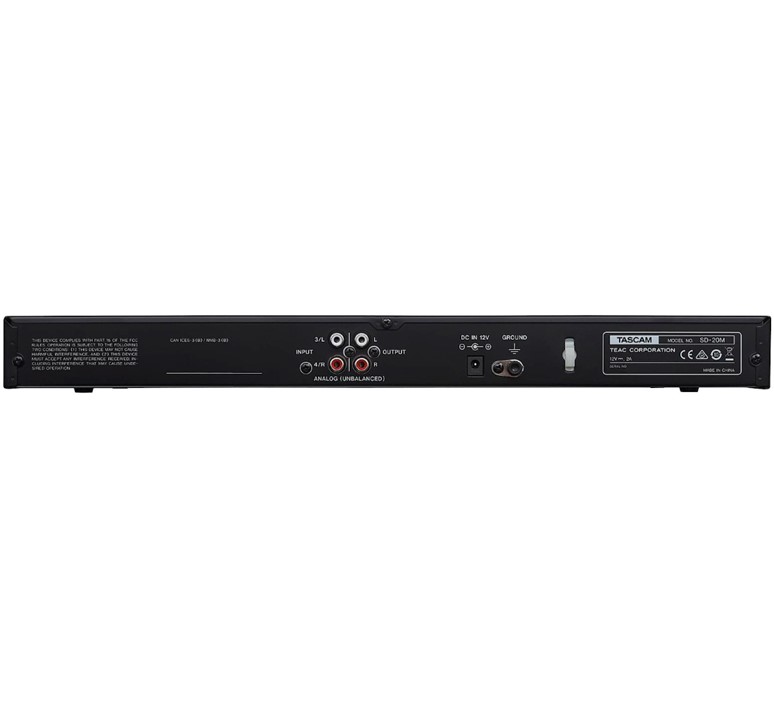

– analogue audio inputs and outputs
– mic/line input 1/2 (balanced combo jacks XLR, 6,3mm standard trs jack
– set to mic (phantom power supported) input impedance 2,7 kohm
– maximum input level 0 dBu (gain: LOW)
– minimum input level -67 dBu (gain: HIGH)
– set to LINE input impedance 10 kohm or higher
– nominal input level +4 dBu
– maximum input level +20 dBu
– minimum input level -12 dBu
– line inputs 3/L and 4/R (unbalanced) RCA jack
– input impedance 10 kohm or higher
– nominal input level -10 dBV
– maximum input level +6 dBV
– minimum input level -26 dBV
– outputs RCA jack
– nominal output level -10 dBV
– maximum output level +6 dBV
– output impedance 200 Ohm
– headphones output 6,3mm standard stereo jack
– maximum output power 20 mW + 20 mW (32 Ohm load, 0,1 % distortion)
– control input/output remote control connector 2,5mm TRS micro jack
– frequency response 20 – 20 kHz +1/-3 dB
– distortion 0,01 % or less
– S/N ratio 100 dB or more
– power supply dedicated AC adapter (Tascam PS-P1220E)
– 4x AA batteries (alkaline, NiMH or lithium)
– power consumption 5 W (maximum)
– input current 1 A (maximum)
– dimensions (W x H x D) 483 mm x 45 mm x 300 mm
– weight 2,8 kg (including batteries), 2,7 kg (excluding batteries)
– operating temperature range 5-35 C
– approximate battery operation time in hours: minutes (continuous operation)
1-2 channels/line input, recording 2 channels, 44,1kHz/16-bit WAV A 2:45, N 3:45, L 7:00
1-2 channels/mic input, phantom power used, recording 2 channels, 44.1kHz/16-bit WAV A 1:45, N 2:30, L 5:15
1-2 channels/mic input, phantom power off, line input on channels 3-4, recording 4 channels, 44.1kHz/16-bit WAV A 1:15, N 1:45, L 5:00
A: Alkaline batteries (Evolta)
N: NiMH batteries (eneloop)
L: lithium batteries (Energizer Ultimate Lithium)
