SY Electronics SY-MS-42-18G 4 in > 2 uit HDMI 2.0 18G 4K60 4:4:4 matrix switch en scaler met monitor sturing en audio uitgang incl 19″ rack mount

SY Electronics SY-MS-42-18G 4 in > 2 uit HDMI 2.0 18G 4K60 4:4:4 matrix switch en scaler met monitor sturing en audio uitgang incl 19″ rack mount

Artikelnummer: SYMS4218G

779,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • 2 jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

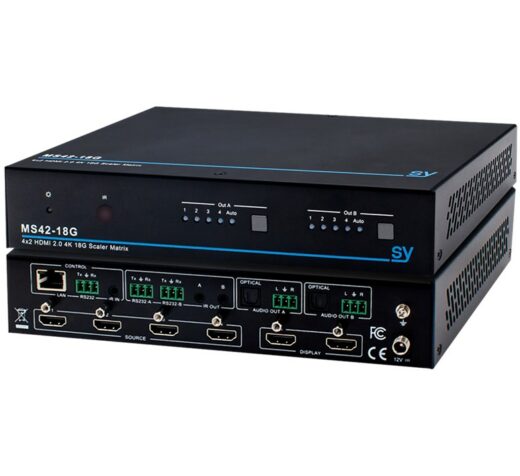

The SY-MS42-18G is a superb HDMI matrix video switcher with 4 HDMI inputs and 2 scaling HDMI outputs.

Each input and output supports up to 4K60 4:4:4 HDMI 2.0 18Gbps signal bandwidth, supporting HDR and HLG.

The outputs can be individually scaled for from 4K to 1080p with HDCP 2.2 to HDCP 1.4 conversion for HDBaseT compatibility.
De-embedded audio can output as L+R analogue and optical TosLink on both outputs.
Auto option ensures automatic input selection when the last input signal is lost, or when the first video input is detected.

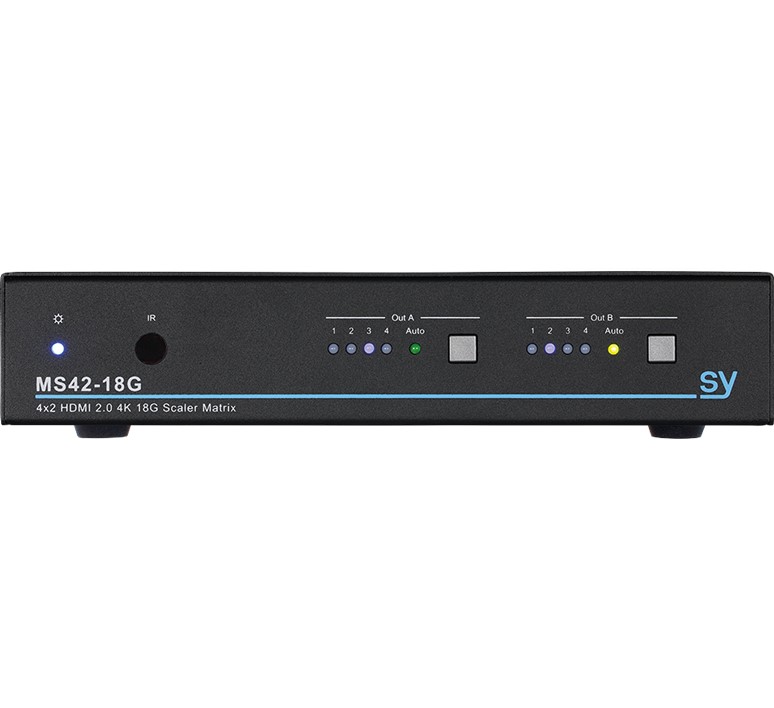

This switcher can be controlled from the front panel buttons, RS232, IR, or LAN.

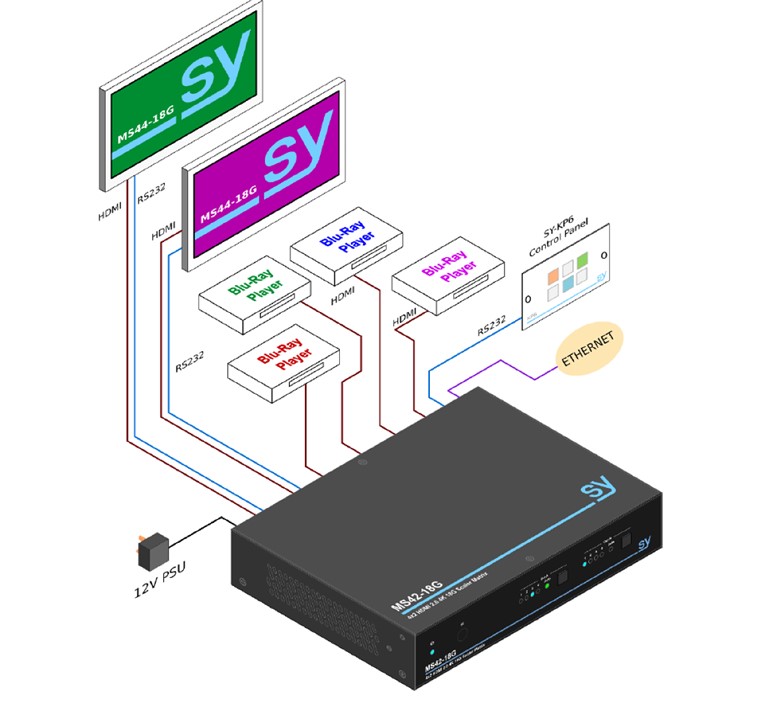

The SY-MS42-18G can automatically control the connected display device using RS232, CEC or IR.

Extra built-in tools include a test pattern generator for verifying the link, testing and setting up connected displays.

Feature rich unit for reliable switching of HDMI signals.
Ideal for boardrooms, function rooms and residential applications.

Features:
– 4x 18G HDMI 2.0 video input
– 2x 18G HDMI 2.0 video output
– supports 4K60 4:4:4 resolution ​
– independent output scaling for 4K, 1080p or HDBaseT mode
– control via front panel, RS232, IR and LAN
– analogue and TosLink de-embedded HDMI audio outputs
– ARC decoding to the audio outputs
– test pattern generator mode
– Web GUI for LAN control



Specificaties

SY-MS42-18G
Video resolutions/formats:
– 4K2K 50/60Hz 4:4:4
– 4K2K 50/60Hz 4:2:0
– 4K2K 30Hz 4:4:4
– 1080p, 1080i 720p, 720i, 480p, 480i
– all HDMI 3D TV formats
– all PC resolutions including 1920 x 1200
– HDCP compatible with all versions up to 2.2
– HDMI 2.0

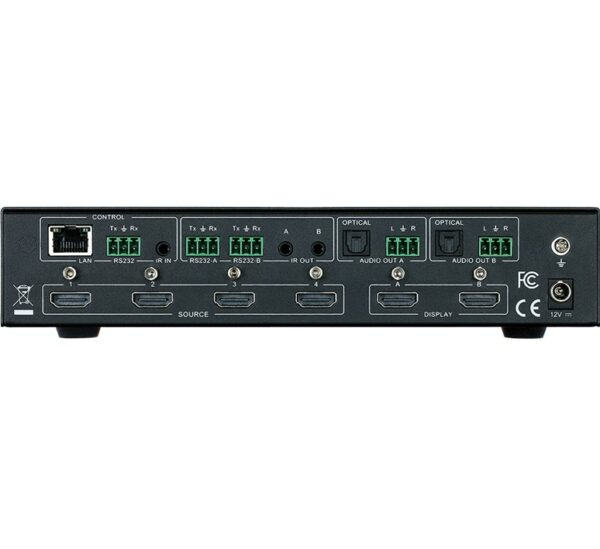

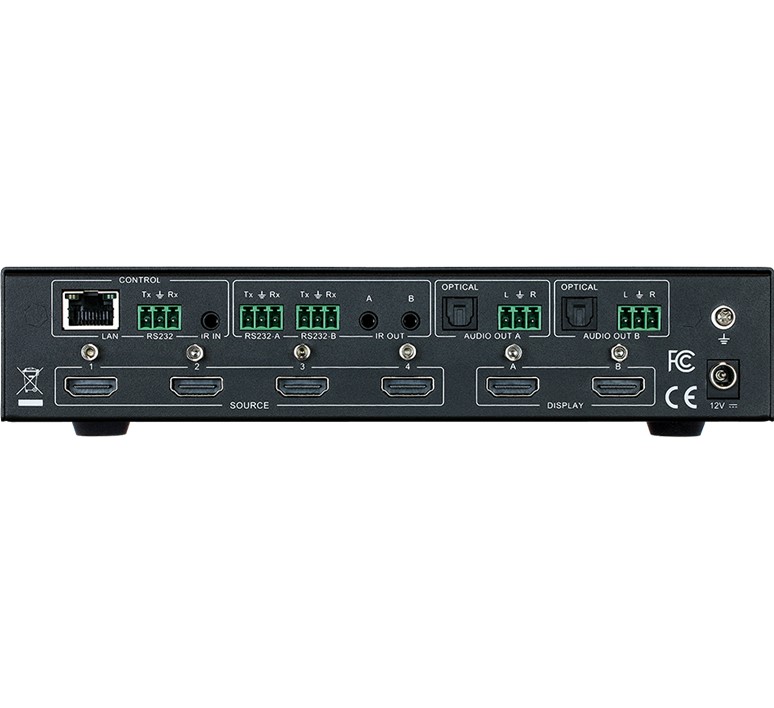

Inputs:
– 4x HDMI video
Outputs:
– 2x HDMI video
– 2x stereo audio from three-terminal pluggable block
– 2x TosLink optical audio output

Control ports:
– 3,5mm TRS jacks for IR control to the display devices
– RS-232
– LAN

– power supply 12V/DC 1A
– power consumption 4,3W max
– weight 1,05kg
– dimensions (W x H x D) 218 x 43 x 140mm

What’s in the box:
– 1x MS42-18G
– 2x 19″ rack mounting ears
– 2x wall mounting ears
– 1x IR remote
– 1x 20-60 kHz IR receiver
– 2x wired IR emitters
– 5x 3-pin pluggable terminal connectors
– 1x 12V 1A locking power adapter
– 1x user manual
