SY-AD-18G 4K 18 Gbps HDMI 2.0 Stereo audio De-embedder met HDMI Repeater & coaxiaal S/PDIF

SY-AD-18G 4K 18 Gbps HDMI 2.0 Stereo audio De-embedder met HDMI Repeater & coaxiaal S/PDIF

Artikelnummer: 250222.00

159,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

1 op voorraad

  • 2 jaar jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

The AD-18G de-embedder is HDMI 2.0, 4K60 4:4:4 (18Gbps) rated, with HDR, EDID and CEC pass-through.

In 2ch mode, it de-embeds the audio simultaneously to all 3 audio outputs (balance stereo, unbalanced & coaxial S/PDIF).
In bitstream mode, the audio is de-embedded only to the coax S/PDIF.
Although it accepts HDCP 1.4/2.2 on the input, it always outputs HDCP 1.4, to ensure that even legacy equipment can receive a valid signal.

The unit is suitable for mounting behind other equipment, thanks to its design and form factor.
Mounting brackets are part of the design, to enable fitting to rack shelves, TV brackets, AV credenzas and furniture.

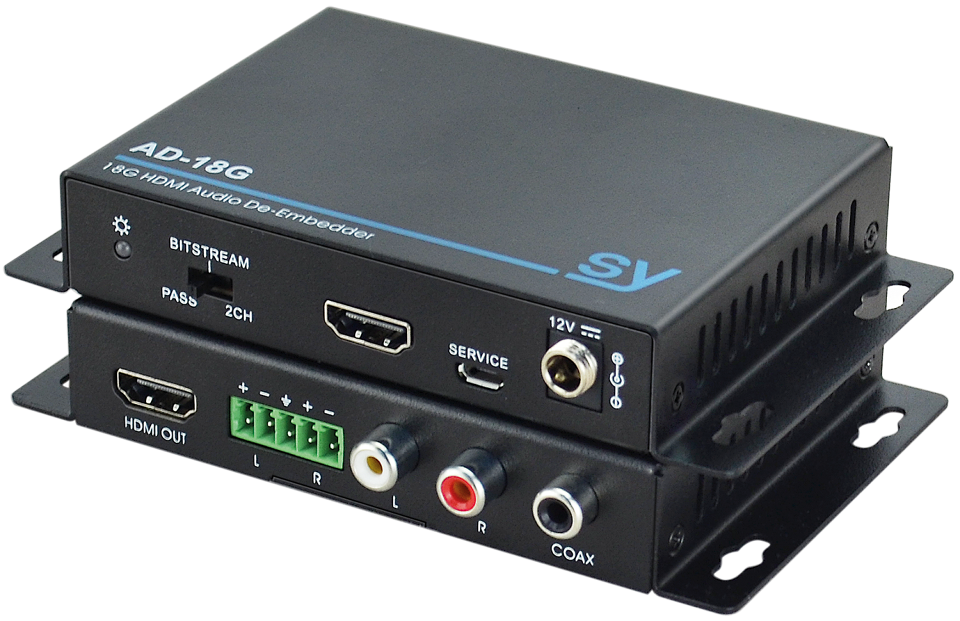

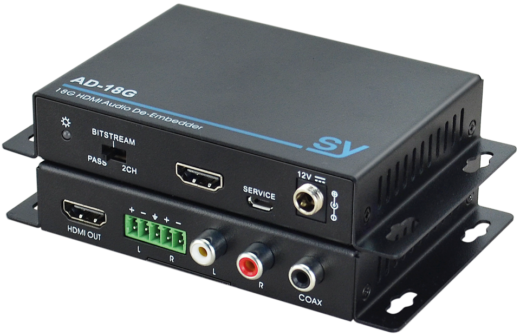

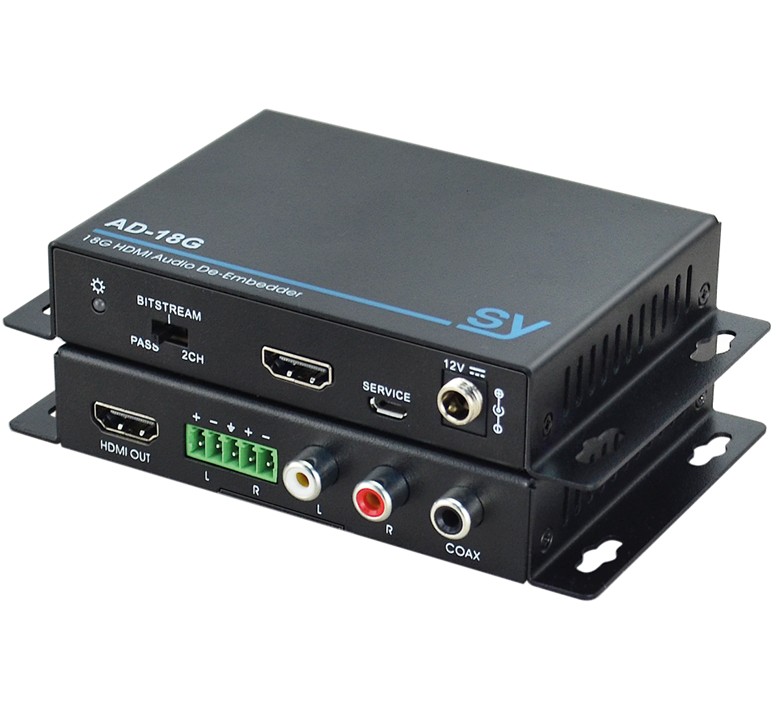

To ease installation, all inputs are on one side, with all outputs on the opposite side.
The ability to pass 4K signals is imperative in todays word of Hi-Def cinema.

For example, the AD-18G therefore is good choice for connecting up a UHD Bluray source via an AVR to a laser projector.
With AD-18g one could divert the audio signal out to the AVR for surround sound processing, while transmitting the video signal further up the chain and onto the home cinema projector.

Features:
– HDMI 2.0, 4K60 4:4:4 (18G), HDCP 2.2, HDR and CEC compliant
– HDMI HBR (high Bit Rate) supported in PASS model
– LPCM 2.1, Dolby 2/5.1 and DTS 2/5.1
– balanced stereo analogue and Coax S/PDIF audio outputs
– audio De-embed, even when no display connected
– supported audio input modes pass-through, bitstream, PCM





Specificaties

HDMI video resolution:
– VESA and SMPTE 480p to 2160p with 3D
– all HDMI resolutions to 3840x2160p @60Hz 4:4:4 (18 Gbit/s)
– 480p@60Hz
– 576p@50Hz
– 720p@60Hz
– 1080p@24Hz
– 1080p@50Hz
– 1080p@60Hz
– 4K@24Hz
– 4K@30Hz
– 4K@60Hz 4:4:4
– all PC resolutions to 1920×1200@60Hz
– HDMI version 2.0 – all HDMI versions to 2.0v HDCP Version (Input) 1.4 and 2.2
– HDCP version (output) 1.4 only
– coax digital audio format LPCM 2ch, Dolby Digital 2 or 5.1ch, DTS 2 or 5.1ch

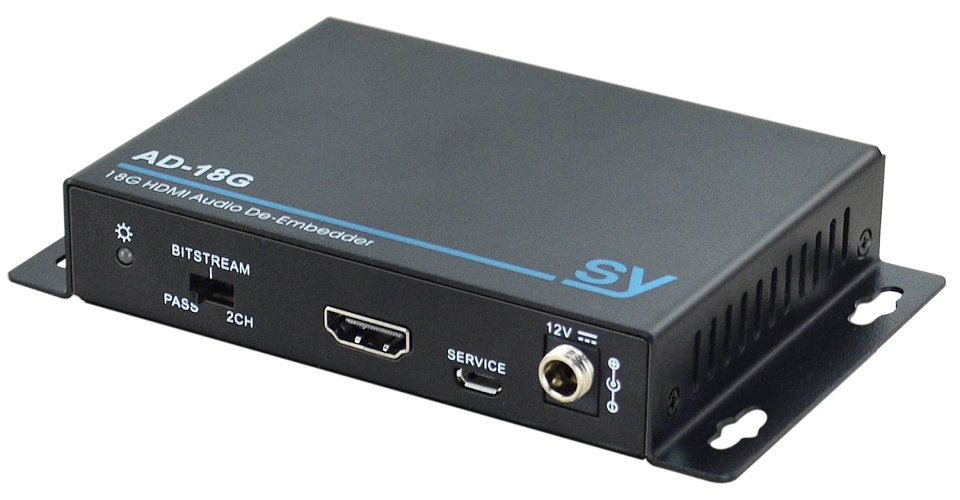

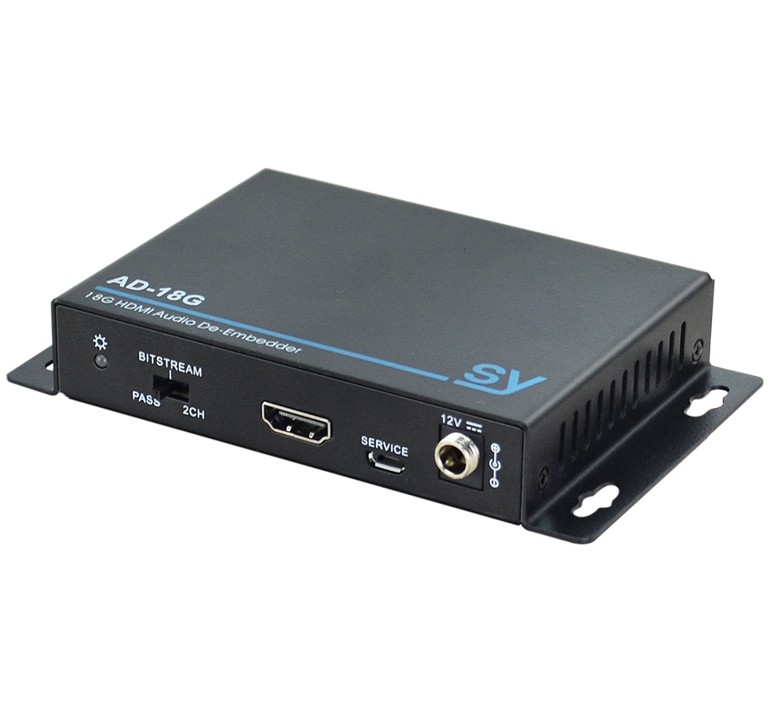

– input connectors 1x HDMI & 1x 2,1mm DC connector

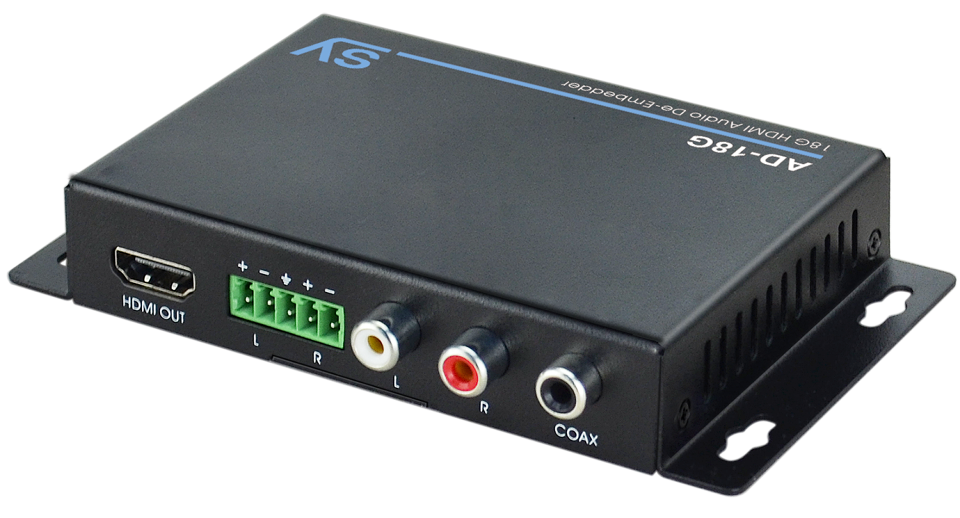

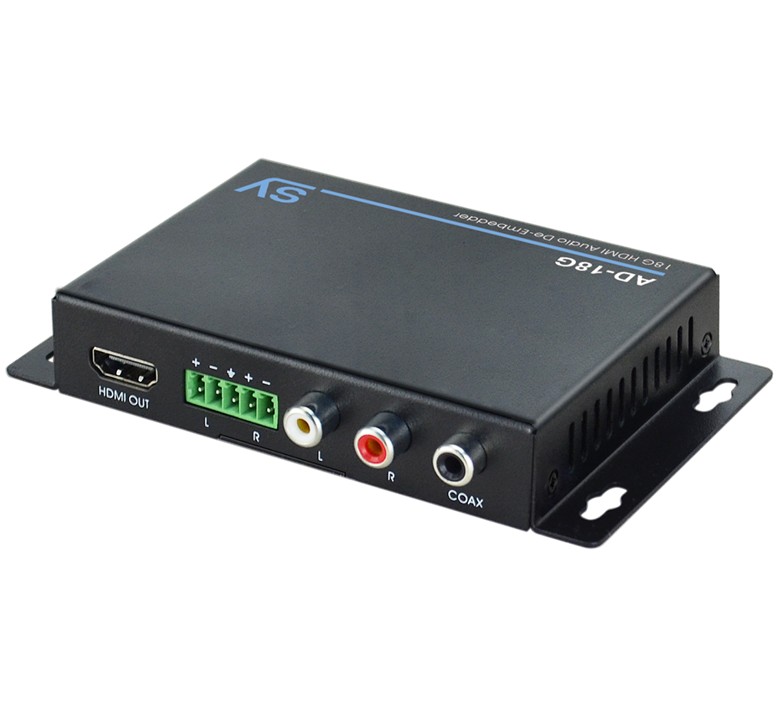

Output connectors:
1x HDMI
1x 5 way pluggable screw terminal for L+R balanced audio
2x RCA for L+R unbalanced audio
1x RCA for coax S/PDIF audio

– power supply 12V DC @ 1A max
– power consumption 3W max
– operating temperature -10 to +55C
– operating humidity 10 to 90 % RH (non-condensing)
– weight 245g
– physical dimensions (W x H x D) 129 x 21.5 x 77mm
– case material steel chassis
– 1x affixed wall brackets​
– 1x 12V PSU
– 1x user manual
