PTZ Optics 30x-NDI-GY 30x optische zoom NDI, 3G-SDI, HDMI, CVBS, IP stream 1920 x 1080p 60,7o grijs

PTZ Optics 30x-NDI-GY 30x optische zoom NDI, 3G-SDI, HDMI, CVBS, IP stream 1920 x 1080p 60,7o grijs

Artikelnummer: PT30XNDIGYC

2.419,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • 3 jaar jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

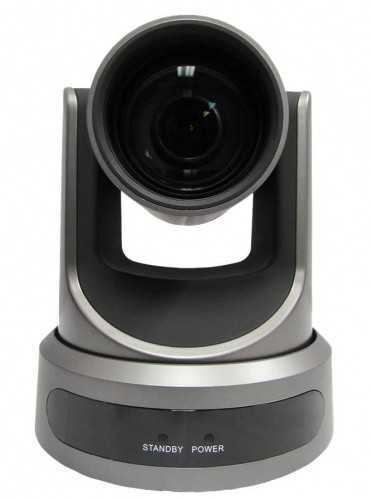

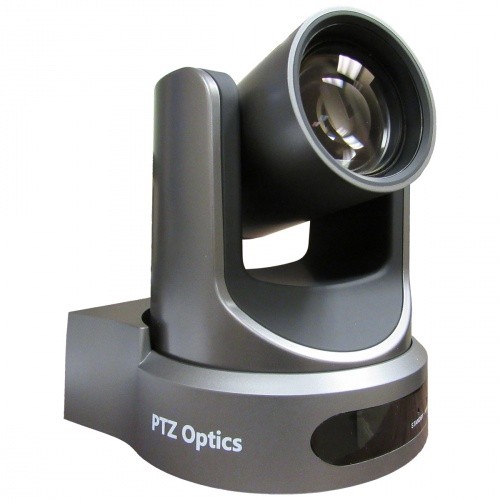

The PTZOptics 30X-NDI is a 1080p camera with 30X optical zoom for capturing HD images at long distances.
With support for NDI|HXTM, 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.

Features:
– 60,7 degree wide-angle lens
– high performance in low light scenarios with wide dynamic range
– full 1920 x 1080p HD resolutions up to 60 frames per second
– 2D and 3D noise reduction with our latest “low noise CMOS sensor”
– RS232 & RS485 (serial), IP (LAN/WAN) & NDI-HX control
– H.264, H.265, & MJPEG streaming over RJ-45 LAN port
– HDMI, 3G-SDI, & NDI or IP streaming (3 simultaneously)
– PoE (power over ethernet) or 12V/DC
– RTMP, RTSP and NDI-HXTM



Specificaties

– video sensor 1/2,7” CMOS 2,07 mega pixels
– frame rates 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25
– frame rates (CVBS) 576i/30, 480i/30
– focal length 30x F4,42mm-132,6mm F1,8-F2,8
– lens zoom 30x
– field of view 60,7o
– min lux 0,5 lux at F1,8 AGC ON
– shutter speed 1/30s – 1/10000s
– SNR >55dB
– vertical flip & mirror supported
– horizontal angle of view 2,28o (tele) to 60,7o (wide)
– vertical angle of view 1,28o (tele) to 34,1o (wide)
– pan movement +/- 170o
– tilt rotation up 90o down 30o
– presets 10 via IR (255 via Serial or IP)

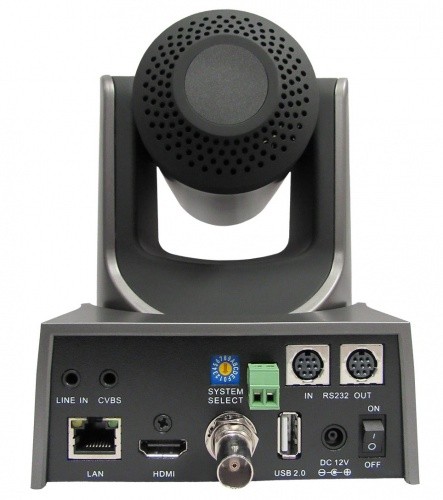

– video output NDI-HX, HDMI, 3G-SDI, IP, CVBS
– network interface RJ45
– audio interface line in 3,5mm (NDI, HDMI & IP stream)
– communication RS-232, RS485, PELCO-D/P, NDI
– baud rate 2400/4800/9600 bits
– power supply JEITA type power adapter (DC IN 12V)
– 3G-SDI interface BNC 75Ohm female
– USB 2.0 interface future use
– power supply 12W (max)
– input voltage 12V/DC (10,8 – 13,0V/DC) or PoE 802.3af
– dimension 142mm W x 164mm H x 169mm D (198mm H max w/ tilt)
– camera weight 1,41kg
