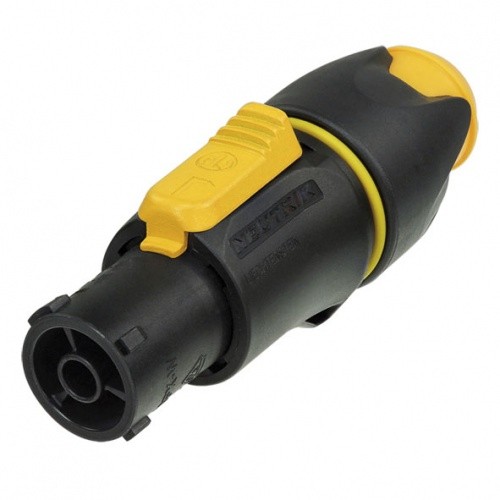

PowerCon True1 power-in IP65 female connector

PowerCon True1 power-in IP65 female connector

Artikelnummer: NAC3FXW

9,50  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • 2 jaar jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

The PowerCon True1 is a locking true mains connector.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCon True1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features:
– Lockable 16 A single phase connector
– Extremely robust and reliable
– Easy and reliable twist lock system



Specificaties

– Title NAC3FX
– Gender female
– Contact resistance < 3 mOhm (inner)
– Number of electronical contacts 2 + PE
– Rated current per contact 16A max
– Rated maximum voltage 250 V ac
– Cable Outside Diameter 6 – 12 mm
– Wiresize 1.0 – 2,5 mm
– Temperature range -30C to +80C
