PLE-30-080 8 ch. Chainhoist controller

Productbeschrijving

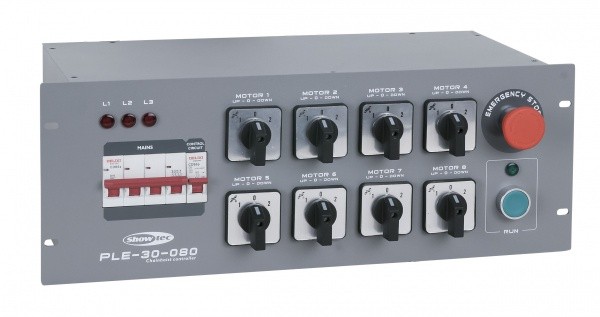

The Showtec Chainhoist controller is a dedicated controller for all popular direct controlled chainhoists such as CM Lodestar.
Each of the 8 hoists can be selected individually to go up or down or to be deselected.

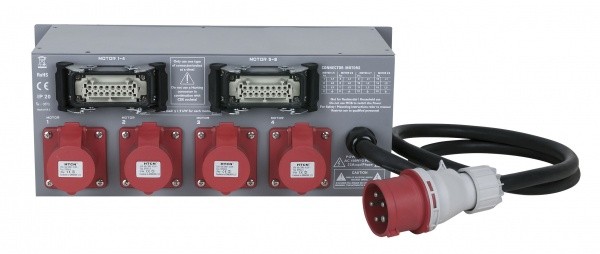

On the backside the unit has 4 x 4 pole CEE connectors as well as 2 pieces of 16 pole multipin to connect a break/out box.

Specificaties

– power supply 400V/50Hz
– dimensions 19″ 4U
– power connector CEE 5 pole 32A
– output connector CEE 4 pole 16A
– 16 pole multi-connector
– safety emergency button
