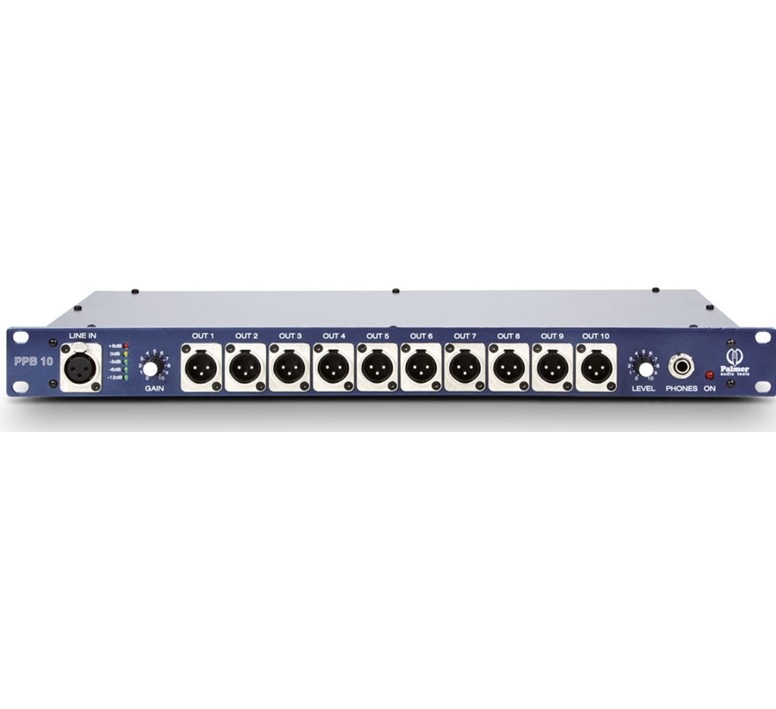

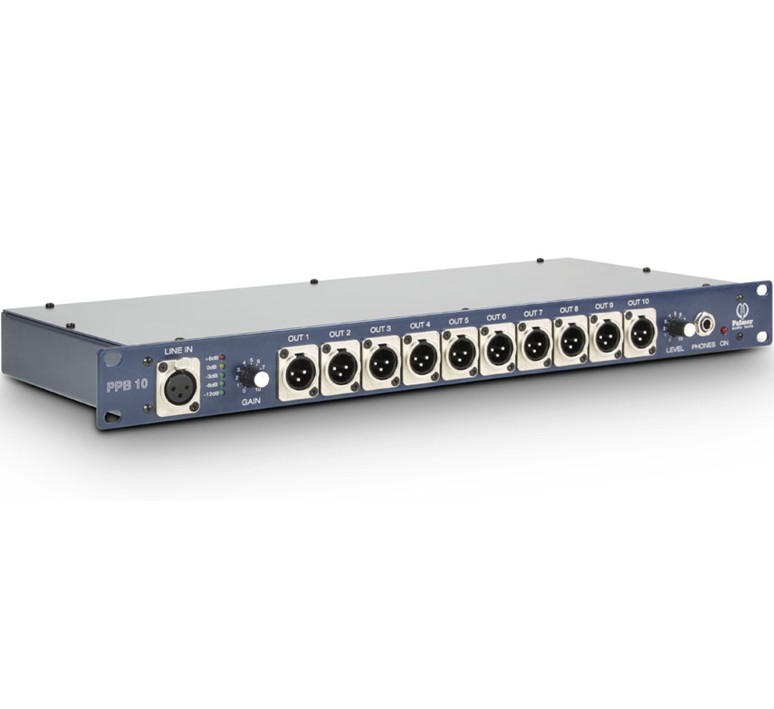

Palmer PB-10 10 voudige audio pers verdeel box 19″ rackmount

Productbeschrijving

The PPB10 is a compact version of the well known and established PPB20 from Palmer.
The PPB10 is a 10 channel audio splitter for press conferences and other applications.

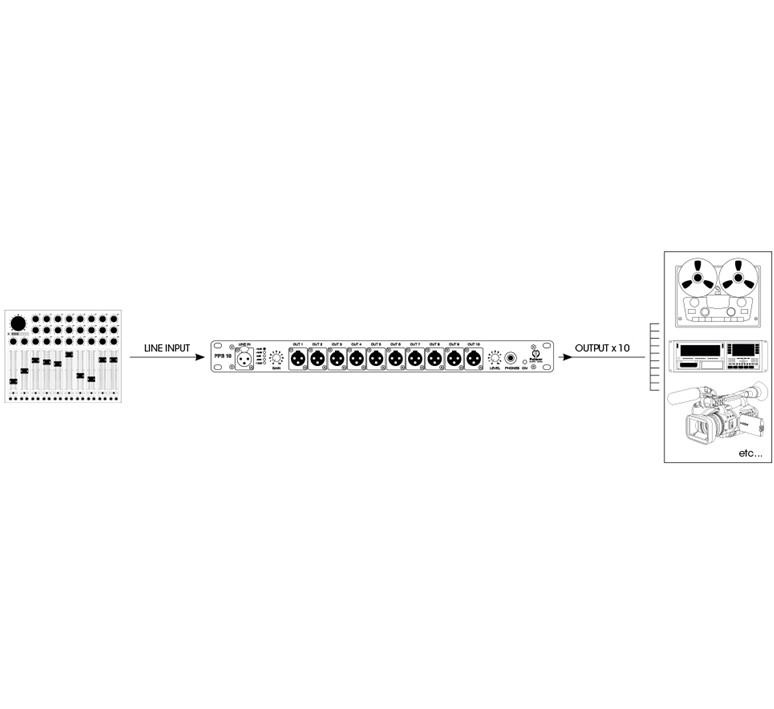

On a transformer split basis, one line input is split out to ten outputs.

Features:
– all inputs and outputs are balanced transformer isolated
– extremely reliable: Should one output be shorted, the other outputs remain unaffected
– line input and outputs
– adjustable input gain (-8 to +25dB)
– level meter
– headphone output to monitor the input level, headphone volume adjustable

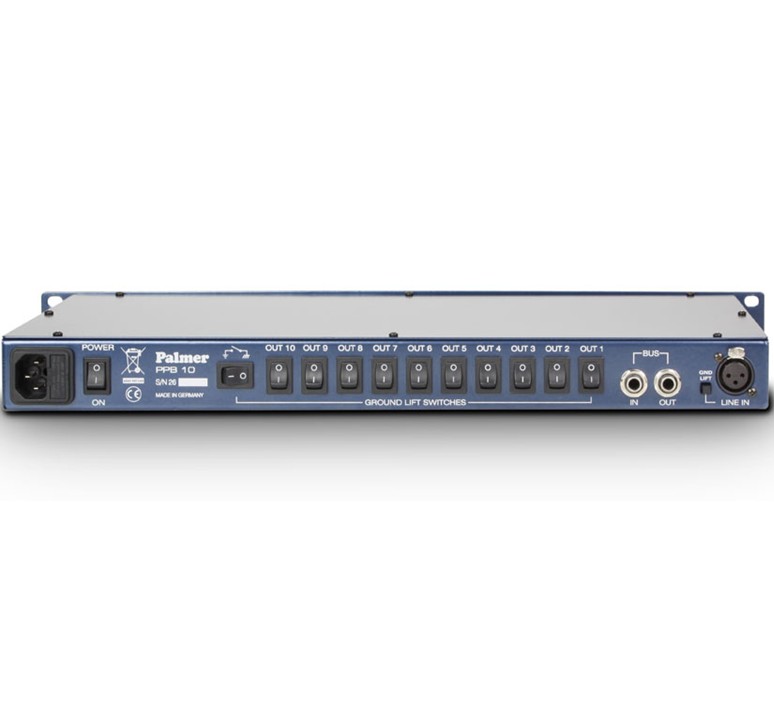

– individual ground lift switches for each output
– ground Lift switch for the input
– expandable setup thanks to the Bus In/Out sockets – allowing you to cascade numerous PPB10 (or PPB20)

Specificaties

– typeline split
– split type1 in 10
– 1 input
– input connectors XLR
– max. input level +20dB
– adjustable input
– 10 split-outputs per canal
– thru outputs/channel
– max. output level +4dB
– output connectors XLR
– transformer isolated outputs
– controlsground lift, input gain, phones level, power
– operating voltageintegrated 115/230V
– cabinet material sheet steel
– cabinet surface powder coated
– width 480mm/19 “
– depth 205mm
– height 45mm/1HE
– weight 4,18kg
