Newhank D-1000 2x 500W/4 Ohm klasse D digitale versterker NIET MEER LEVERBAAR ZIE Blaze PowerZone Connect 1002 EU

Productbeschrijving

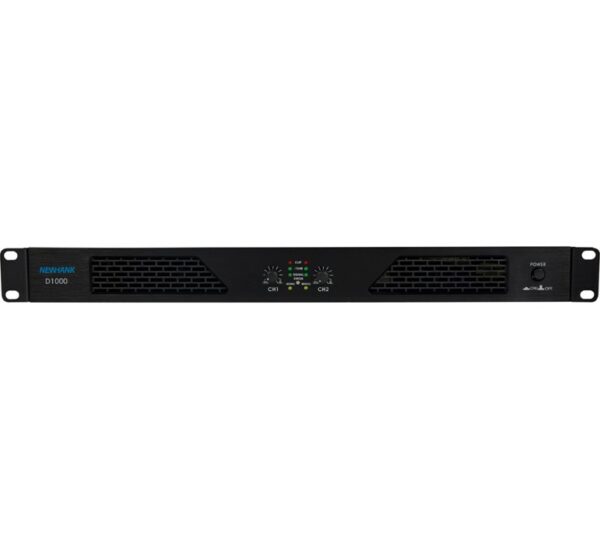

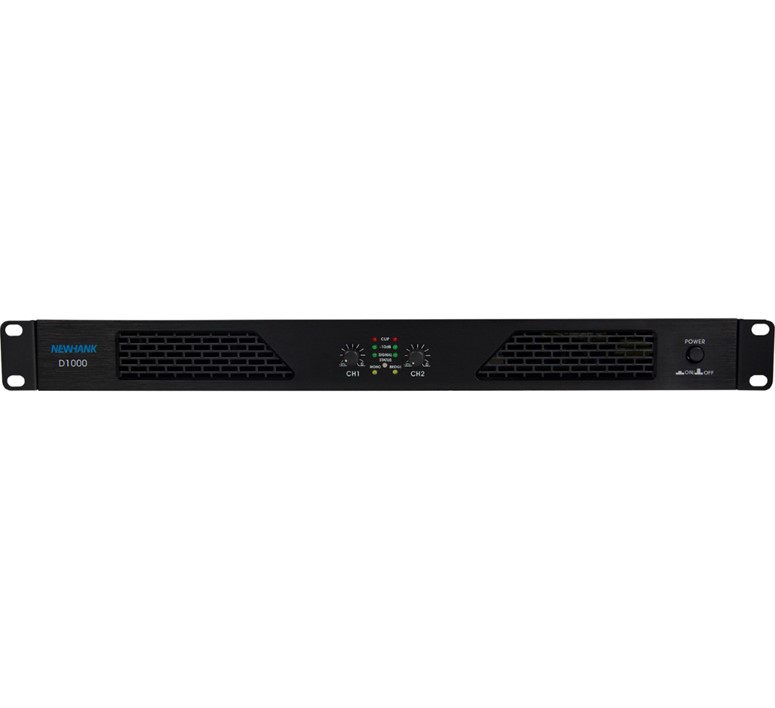

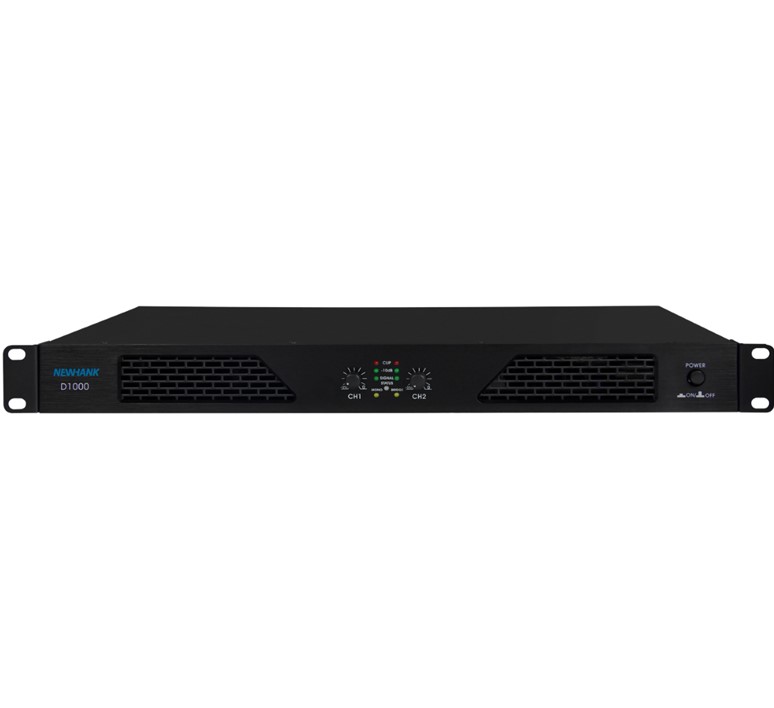

NewHank D1000 is a 1 unit 2x 500W/4 Ohm class D digital power amplifier.

Features:
– unique and elegant enclosure design
– carefully selected high quality components
– class D toplogy integrated with switch power supply design
– powerful output and high efficiency
– low electricity consumption
– accurate volume control, switch on/off, signal
– clip and protection LED’s are located on the front panel
– fully automatic protection circuit for each channel
– including direct current protection, thermal protection
– over-load protection and amplitude limit
– variable speed fan controller with temperature sensor
– XLR balance input and professional Speakon output connectors
– stereo, mono or bridge operation
– just 1 unit high and only 4,95kg, easy to move and install

Specificaties

– frequency response (at 1 Watt) 20Hz-20KHz,+0/-1dB
– total harmonic distortion (THD) <0.2%
– power voltage 220-240V/50/60Hz
– power consumption 680W
– power connector standard IEC connector
– output grade technology type class D
– voltage gain 40dB
– damping factor >300, 10Hz-400Hz
– S/N ratio (20Hz-20Khz, 4 Ohms) >100dB
– crosstalk -65dB
– input sensitivity 0,775V
– input impedance(nominal) 10K ohms/20K ohms
– input connectors XLR socket ( female)
– output connectors Speakon
– front panel controls power on/off switch and volume control

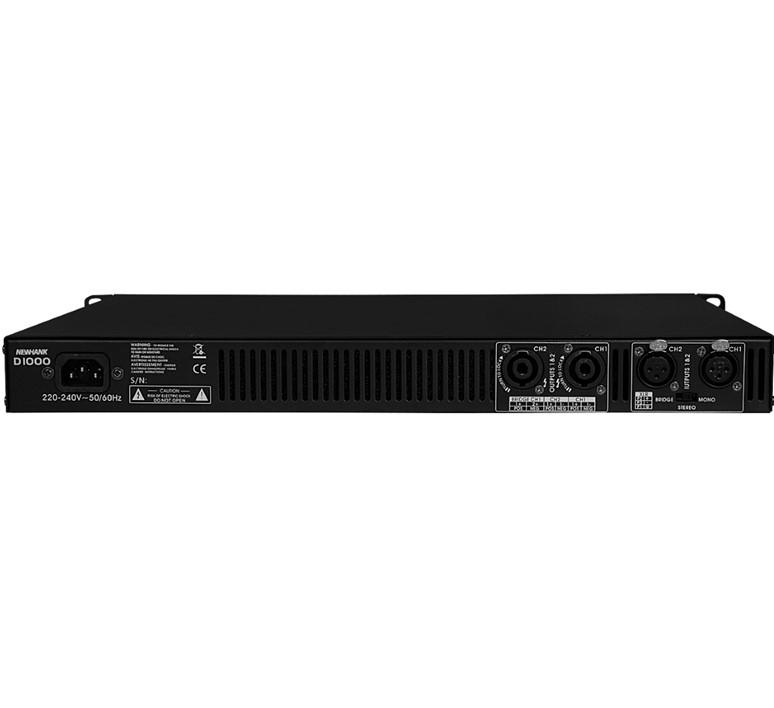

– rear panel controls output mode switch for mono, stereo or bridge selection
– LED indicators three LED lights for every channel clip/-10dB
– signal and mono/bridge/Status lights in front panel
– cooling system cooling fans with variable speed
– protection against short circuit, direct output current, over load lowvoltage and over-heat
– ventilation flow-through ventilation from front to back
– dimensions (WxHxD) 483 x 44 x 350mm
– net weight 4,95kg
– shipping weight 6,30kg
– accessories operation manual 1pc,power cord plug 1pc
