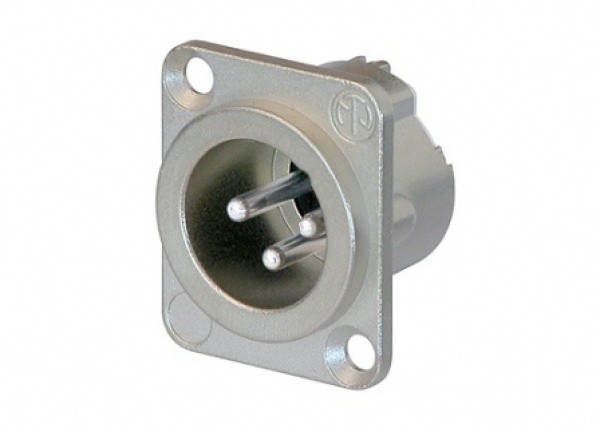

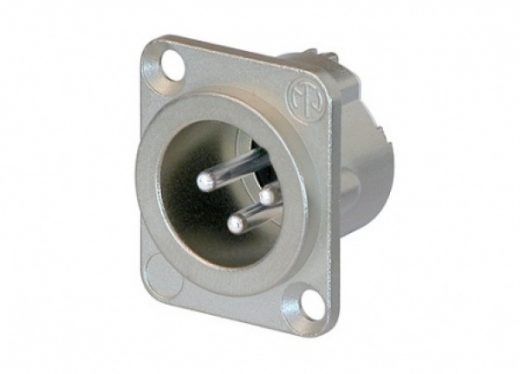

Neutrik XLR male chass.deel 3p

Neutrik XLR male chass.deel 3p

Artikelnummer: NC3MD-LX

3,70  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

>10 op voorraad

  • 2 jaar garantie
  • Gratis verzending v.a. €350,-


3 pole male receptacle, solder cups, Nickel housing, silver contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
It is the ideal match for mating with Neutrik’s EMC XLR cable connector.

Features & Benefits:

– All metal housing offers best overall RF protection and electromagnetic shielding
– New duplex ground contact for excellent contact integrity between chassis and cable connector
– Male connector’s retention bar replaces plastic design with all metal version improving pull-out force
– Larger solder contacts for easier termination
– Optional connection to easily join pin1 to chassis ground
– D-style housing provides installation compatibility with industry standard D mounting dimensions



– merk Neutrik
– 3 contacten
– maximale geleider dikte 2,5qmm
– maximale geleider dikte AWG 14 AWG
– IP waarde IP65
– behuizing metal
– kleur zwart
– ring kleur zwart
– contact weerstand 3 < mOhm
– vergrendelingstype latch
– contact type verguld
– maximale omgevingstemperatuur 80C
– minimale omgevingstemperatuur -30C
