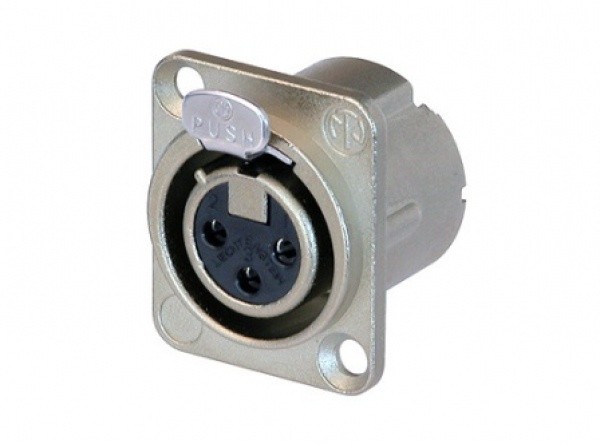

Neutrik XLR female chass.deel 3p

Neutrik XLR female chass.deel 3p

Artikelnummer: NC3FD-LX

3,80  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

>10 op voorraad

  • 2 jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

3 pole female receptacle, solder cups, Nickel housing, silver contacts.

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
It is the ideal match for mating with Neutrik’s EMC XLR cable connector.

Features & Benefits
– All metal housing offers best overall RF protection and electromagnetic shielding
– New duplex ground contact for excellent contact integrity between chassis and cable connector
– Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
– Female contact incorporates a solder barrier to prevent solder running into the contact mating area
– Larger solder contacts for easier termination
– Optional connection to easily join pin1 to chassis ground
– D-style housing provides installation compatibility with industry standard D mounting dimensions



Specificaties

– Connector Type XLR
– Gender female
– Capacitance between contacts = 4 pF
– Contact resistance = 5 mO
– Dielectric strength 1,5 kVdc
– Insulation resistance > 2 GO (initial)
– Insulation resistance > 1 GO (after damp heat test)
– Rated current per contact 16 A
– Rated voltage 50 V
– Insertion force = 20 N
– Withdrawal force = 20 N
– Lifetime > 1000 mating cycles
– Wire size max. 2.5 mm
– Wire size max. 14 AWG
– Wiring Solder contacts
– Locking device latch lock
– Mounting direction front & rear
– Chassis shape D
– Contact plating 2 um Ag over 2 um Ni
– Contacts Bronze (CuSn6)
– Insert Polyamide (PA 6.6 30 % GR)
– Locking element Steel Ck67
– Shell Zinc diecast (ZnAl4Cu1)
– Shell plating Nickel
– Flammability UL 94 HB
– Standard compliance IEC 61076-2-103
– Protection class IP 40
– Solderability Complies with IEC 68-2-20
– Temperature range -30C to +80C
