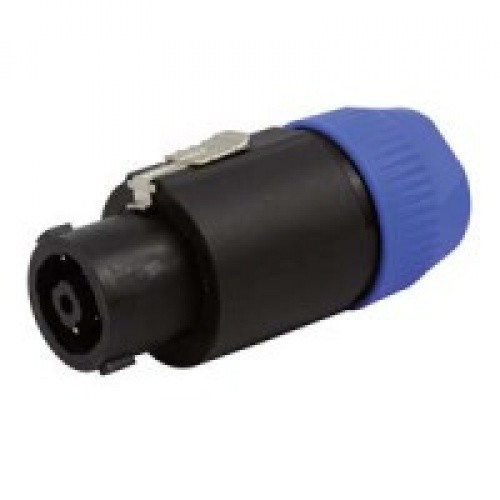

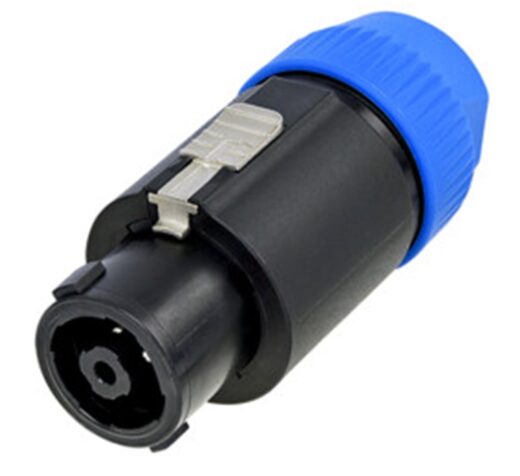

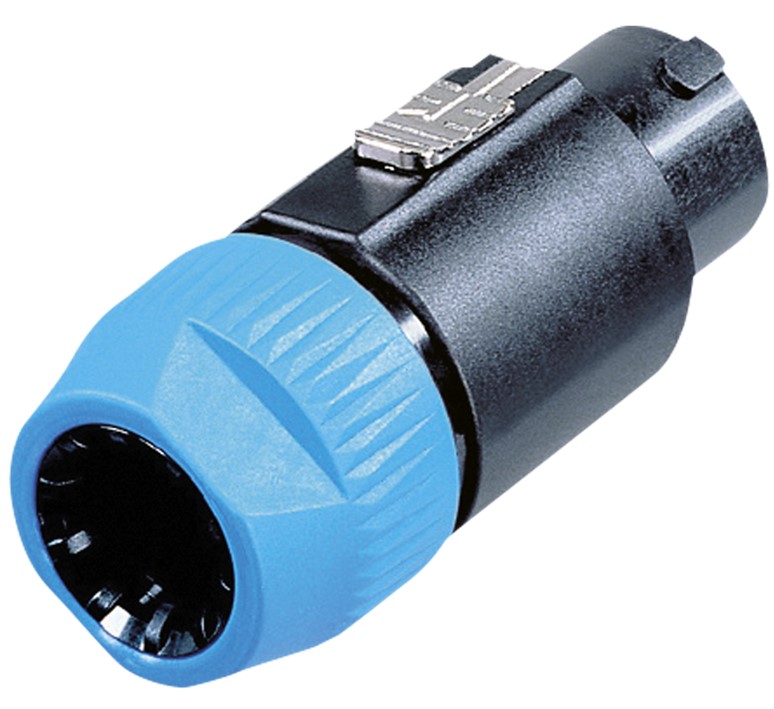

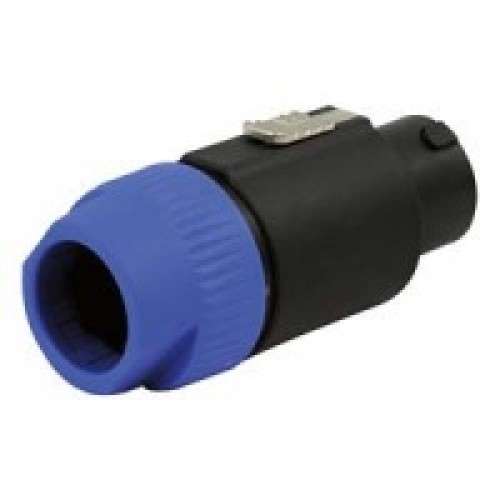

Neutrik Speakon steker 8p kabeldeel

Neutrik Speakon steker 8p kabeldeel

Artikelnummer: NL8FC

16,90  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • Gratis verzending v.a. €350,-

Productbeschrijving

8 pole cable connector, latch lock, chuck type strain relief for cables 8 – 20 mm diameter, 30 A continuous per contact.

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system.
They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Features & Benefits:
Current rating 30 A rms continuous Reliable and robust, easy and fast to assemble Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
Accurate and dependable twist lock latching system “Quick Lock” High impact material for insert and housing, long-lasting and dependable Chuck type strain relief system for secure clamping of cable.



Specificaties

– Connector Type Speakon
– Gender female
– Contact resistance = 3 mO (after lifetime)
– Dielectric strength 4 kVdc (peak)
– Insulation resistance > 1 GO (after dampheat)
– Rated current per contact 30 A rms continuous
– Rated current per contact 40 A audiosignal, duty cycle 50 %
– Rated voltage 250 V (Insulation)
– Cable O.D. 8 – 20 mm
– Cable retention force = 220 N (subject to cable O.D. and material)
– Lifetime > 5000 mating cycles
– Wire size 4 mm
– Wire size 12 AWG
– Wiring screw type terminals or soldering
– Locking device Quick Lock (latch)
– Bushing Polyamide (PA 6 15% GR)
– Contact plating 4 um Ag
– Contacts Brass (CuZn39Pb3)
– Insert PBTP 20 % GR
– Locking element Zinc diecast (ZnAl4Cu1)
– Shell Polyamide (PA 6 30 % GR)
– Strain relief Polyacetal (POM)
– Approvals UL,CSA
– Flammability UL 94 HB
– Solderability Complies with IEC 68-2-20
– Temperature range -30C to +80C
