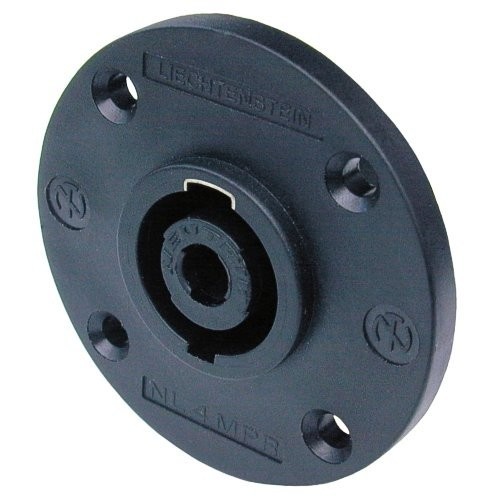

Neutrik Speakon chass.deel 4p rond

Productbeschrijving

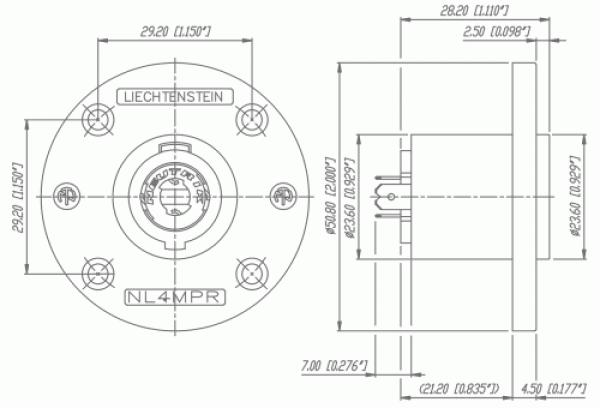

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16″ flat tabs.

The state-of-the-art chassis connector for loudspeaker / amplifier applications.
They feature a unique locking system, robust plastic housing and high current silver plated contacts.

Features & Benefits:
Standard current rating 30 Amp High current version up to 50 Amp audio current Glass reinforced materials make it extremely robust and dependable
Precise keyway for secure mating Accurate twist lock latching system Metal insert in locking area.
Airtight design – optimized for speaker applications

Specificaties

– Verbindungstyp Speakon
– Geschlecht male
– Durchgangswiderstand = 3 mO (after lifetime)
– Durchschlagsfestigkeit 4 kVdc (peak)
– Isolationswiderstand > 1 GO (after dampheat)
– Nennstrom pro Kontakt 30 A rms continuous
– Nennstrom pro Kontakt 40 A audiosignal, duty cycle 50 %
– Nennspannung 250 V (Insulation)
– Lebensdauer > 5000 mating cycles
– Anschlussart flat tabs for 3/16″ (FASTON 4.8 x 0.5 mm) or soldering
– Verriegelung Quick Lock
– Einbaurichtung front & rear
– Gehäuseform round G-size flange
– Layout four thru holes
– Kontaktbeschichtung 4 um Ag
– Kontakte Bronze (CuSn6)
– Gehäuse Polyamide (PA 6 30 % GR) black
– Zulassungen UL,CSA
– Entflammbarkeit UL 94 HB
– Lotbarkeit Complies with IEC 68-2-20
– Temperaturbereich -30C to +80C
