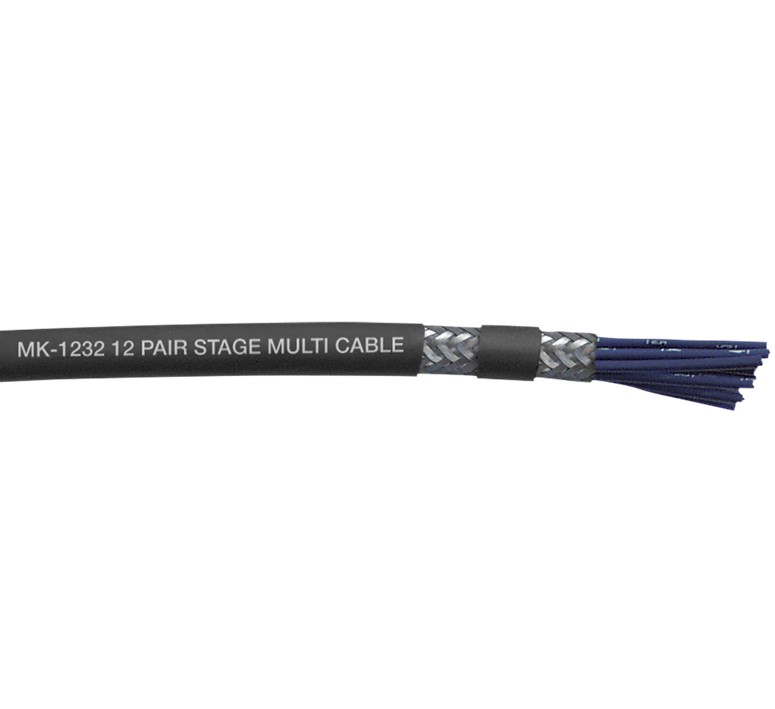

MK-1232 12 Pair Stage Multicore with Total Shield BLACK

MK-1232 12 Pair Stage Multicore with Total Shield BLACK

Artikelnummer: D9453B

11,95  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • Gratis verzending v.a. €350,-

Productbeschrijving

The DAP audio Pro-Core Multicable: professional features and top-notch materials have become a standard in this productline.
But the DAP-engineers knew there was some room left for improvements: the Pro-core line is now also AES-EBU compliant.
Designed for hard on-the-road” use, so extremely well suited for rental companies, and the professional demanding power-user” who needs a good solid multicore that is also sufficient shielded.
Features: tough but flexible, double shielded for more protection and less noise, good for outdoor use, even under hard circumstances and in all weatherconditions.
1. masterjacket black flexible roadproof PVC
2. mastershield braided tinned copper
3. pairjacket numbered dark-blue PVC 3mm
4. pairshield silvercoatet Alufoil
5. conductor insulation Polyethelene red and white 1mm
6. inner conductor Oxigene free copper 99,997 OFC
7. earth drainwire Tinned copper

Each pair: alu-foil / drainwire-shielded and total: tinned copper braided shield.
min. order quantity 1m
max. on drum: 500m



Specificaties

– number of pairs 12
– conductor insulation in mm. PE, red+white, 1,0
– pair jacket in mm. PVC blue, (numbered), 3,0
– pair shield Alufoil+tinned drainwire
– master jacket in mm. PVC, black, 16,5
– master shield braided tinned copper
– minimal bending radius 15mm
– weight 38kg/100m
– double shielded multicable
– colour coded
– tough, roadproof quality
– each pair OFC-copper shielded
