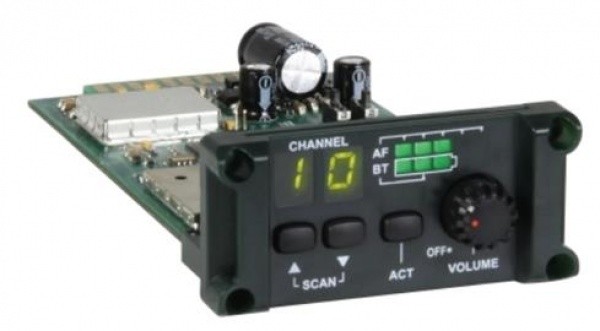

Mipro MRM-24 enkele 2,4Ghz ontvangstmodule met ACT functie (12 kanalen) tbv MA-505/705/707/708/808

Mipro MRM-24 enkele 2,4Ghz ontvangstmodule met ACT functie (12 kanalen) tbv MA-505/705/707/708/808

Artikelnummer: MRM24

110,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw


  • 1 jaar garantie
  • Gratis verzending v.a. €350,-


The easy to install and use plug-and-play MRM-series receiver modules are designed mainly to fit Mipro wireless portable PA systems for wireless microphone applications.
Other unique installations can be considered for PA amplifiers, mixers, signal processors, and active speakers.

– operates in the 2,4 GHz user license-free ISM band
– up to 12 preset compatible channels
– true diversity technology and stable digital FSK modulation circuit
– eliminate signal dropouts and ensure best reception quality
– combining FHSS frequency-hopping technique
– adaptive tracking algorithm to prevent interferences from other 2,4 GHz wireless devices
– easy-to-read channel LED display, audio, transmitter battery status indicators
– the modular design allows for fast and easy installation or replacement
– no analog’s companding noise
– ideal sound amplification for musical instruments



– frequency range 2,4000 – 2,4835GHz
– preset frequency 12 preset frequencies in total
– channel set-up Scan and ACT sync
– display status channel, audio meters and the battery status of the transmitter
– receiving mode dual-tuner digital true diversity
– sensitivity +12 dBuV
– frequency-hopping each channel has 4 preset hopping frequencies
– audio sampling 24-bit/44,1kHz rate
– latency < 4ms
– audio frequency response 20Hz – 20kHz
– S/N ratio (analog output) > 115dB(A)
– THD < 0,1% @ 1kHz
– audio output 2 Vrms
– 2x antenna 50 Ohm fixed antenna
– power supply 10 – 15V/DC
– power consumption < 1,5W
– dimensions W x H x D 74,5 x 34,5 x 149mm
– weight 78gr
– transmitters ACT-24HC handheld & ACT-24TC bodypack
– DM-100/VT-24/ST-24/ET-24/MT-24 musical instrument transmitter
– operating temperature -10- +60C
Note: refer to actual product in the event of product discrepancy
