Mipro MI808T stereo in-ear monitor diversity UHF zender met 16 presets NIET MEER LEVERBAAR ZIE MI909T

Prijs op aanvraag
Mipro MI808T stereo in-ear monitor diversity UHF zender met 16 presets NIET MEER LEVERBAAR ZIE MI909T

Artikelnummer: MI808T


Mail ons voor meer informatie

Productbeschrijving

The MI-808 is an IEM system designed for stage performance and broadcasting.
It can also serve as a simultaneous language interpretation system.
It is frequency-agile over a 24 MHz bandwidth with 16 selectable requencies.
Advanced dual-antenna true diversity technology eliminates signal dropouts and enhances signal stability.
High S/N ratio and dynamic range ensures optimal audio quality.

Features:

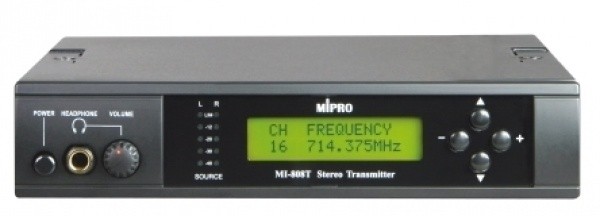

– Multi-function LCD panel
– EIA standard 1/2U rack-mountable metal chassis
– Balanced and unbalanced combo jack
– Mono and Stereo operating modes
– UHF PLL Synthesized circuit
– 16 preset channels in 24 MHz band
– Dynamic compander circuitry delivers S/N ratio greater than 90 dB
– Built-in level limiter prevents distortion at the maximum input level
– Monitoring headphone jack
– Multi-language interpretation system application.
– Simple interface for easy operation



Specificaties

– Frequency Range 620 – 874 MHz (country dependent)
– Bandwidth 24 MHz
– Oscillation Mode PLL Synthesized
– Channel Grid 25 kHz
– Frequency Stability +/- 0,005% (-10 – +60C)
– Modulation Type FM stereo modulation
– Output Power Low <10 mW/ High <100 mW switchable (country dependent)
– Spurious Rejection < 4 nW
– Frequency Response 80 Hz – 15 kHz
– T.H.D. < 1% (at 1 kHz)

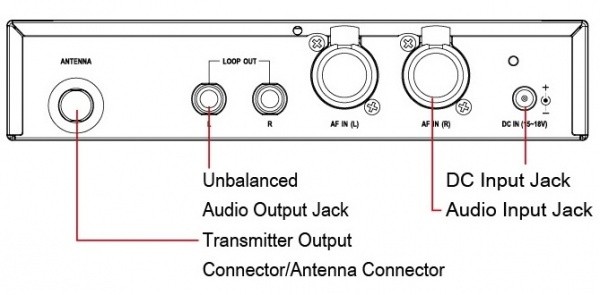

– Audio Input Line Level 2x XLR, 6,3 mm combo Jack
– Audio Output 6,3 mm 2x Phone Jack
– Earphone Output 6,3 mm Stereo Phone Jack with volume control
– Earphone Output Impedance > 16 Ohm
– Amplifier Gain N/A
– Antenna Connector TNC (50 Ohm impedance)
– Power Supply DC 12 – 15V
– Dimensions (W x H x D) 210 x 44 x 206 mm
– Weight Approx. 1,1 kg

Note:
Refer to actual product in the event of product description discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
