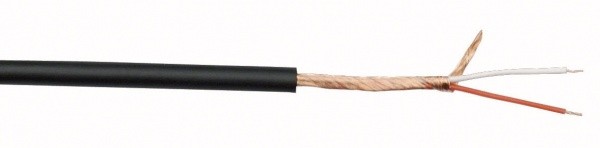

MC-205B Microphone Cable Black 5mm 100m Spool

Productbeschrijving

Specificaties

– conductor drains OFC 10x 0,10mm
– conductor insulation PE red+white
– conductor insulation 1mm
– 1st shield OFC twisted 40x 0,12
– outer isolation PVC matte black
– outer isolation 5mm
– conductor resistance 160 Ohm/Km
– capacity inner conductor 60 pF/m
– working temperature min/max -20 – 60C
– working Voltage overflash 30V
– nom impedance 110 Ohm
