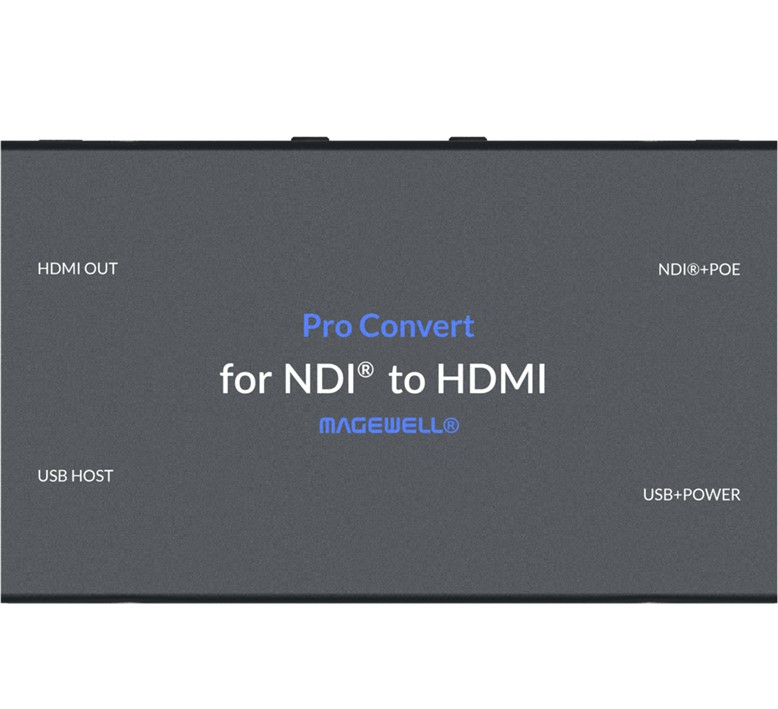

Magewell Pro Convert NDI > HDMI max Full HD

Magewell Pro Convert NDI > HDMI max Full HD

Artikelnummer: MAG64100

429,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

3 op voorraad

  • 2 jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

Connects baseband presentation or distribution equipment into IP-based media networks, decodes Full NDI and NDI HX including earlier variants into HD HDMI.
Up-converts the decoded HD signals to 4K for viewing on Ultra HD displays.

Features & advantages:
– very low latency
– advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
– HTTP-based APIs for custom integration
– image flip for inverted projector installations and safe area controls
– automatic output optimization for target display with integrated up/down conversion

Decoding features:
– support for decoding up to 2K 60fps NDI streams
– support for decoding full NDI and NDI HX
– support for NDI 4.x
– discover NDI devices across network segments
– compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP



Specificaties

Output features:
– max output: 4096×2160 60fps 4:4:4 8-bit
– delivering video at the preferred video format according to the EDID of the connected monitor.

Supported output formats include:
– 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
– 2560x1440p 60/100
– 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
– 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
– 1920x1080i 50/59.94/60
– 1280x720p 23.98/24/25/29.97/30/50/59.94/60
– 720x576p50
– 720x576i50
– 720x480p59.94/60
– 720x480i59.94/60
– support 48KHz 8-channel audio output
– HDMI 1.4/2.0 interface

Decoding features:
– decoding up to 2Kp60 streams of Full NDI, NDI|HX, NDI|HX2, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols
– H.264/H.265 video decoders
– AAC/MP3 audio decoders
– support NDI 4.x
– web UI management provide comprehensive information regarding the device and decoded signals in real-time
– allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
– update firmware
– support USB RNDIS/ECM
– support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
– provide HTTP APIs

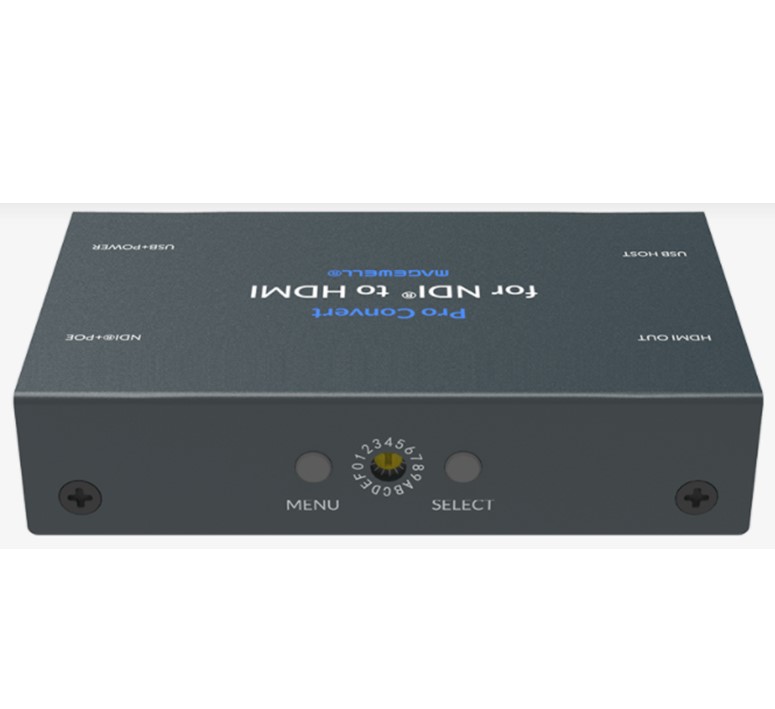

On-board control buttons:
– Menu press to display the menu, or cycle through the options
– Select press to display the menu, enter current option, or confirm the selection
-16 position rotary DIP switch set board-index from 0 to F

Network interfaces:
– 10/100/1000Mbps Ethernet
– IEEE 802.3af PoE

USB interfaces:
– USB2.0 type B
– 5V/2,1A power supply
– USB RNDIS/ECM
– USB3.0 type A
– connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

LED indicators:
– power LED status indicator
– on power connected
– off power unconnected
– decode LED status indicator, on decoding, blinks decoding error, off source unselected

Form factor:
– 100,9mm (L) x 60,2mm (W) x 23,3mm (H)

Accessories:
– USB 2.0 A to B cable
– 5V/2,1A power adaptor
– L-bracket
– screw mounting hole 1/4″ – 20 threaded hole
– power consumption 5V max current 1,1A
– max power consumption 5W
– operating temperature 0 – 40C
– storage temperature – 20 – 70C
– relative humidity 5% – 90% non-condensing
