LD SAT 82 A G2 W 8″ actieve installatie monitor zwart

Productbeschrijving

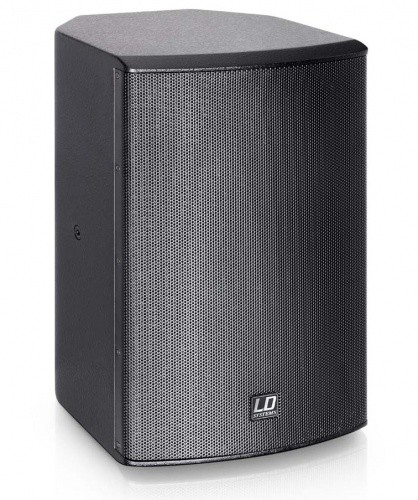

The LD Systems SAT82AG2 is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.

The compact 2-way bass reflex design is equipped with an 8″ custom-made woofer and a 1″ compression driver which are driven by an 80 Watt Class AB power amplifier.
The input is a combo socket; an XLR socket is used to loop through the signal.
With a frequency response of 50 Hz – 20 kHz and 114 dB maximum sound pressure, the SAT82AG2 produces a balanced sound with high dynamics.
The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

The cabinet of the SAT82G2 is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish.

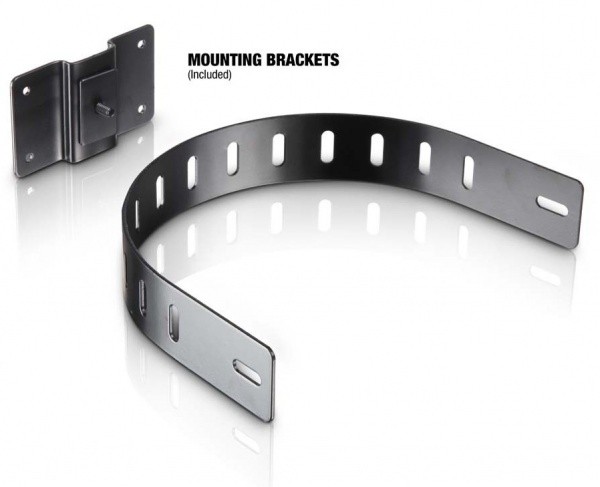

A versatile mounting bracket is included; a universal joint mount is available as an accessory.

Features:
– compact active 2-way installation monitor
– ideal for bars, restaurants, shops, as a home recording monitor and PC speaker
– 8″ custom-made woofers
– 1″ high frequency driver with a 60 x 60 dispersion angle
– integrated Class AB power amplifier with 80 watts (RMS)
– switchable automatic power save mode
– mounting bracket and M6 fixing points for a wide variety of installation possibilities

Specificaties

– installation loudspeaker
– wall-mounted loudspeaker
– low/mid driver dimensions 8″
– woofer size 203,2mm
– woofer magnet Ferrite
– woofer brand custom-made
– HF driver dimensions 1″
– HF driver size 25mm
– HF driver brand custom-made
– power amplifier class A/B
– dispersion (H x V) 60 x 60o
– RMS 80W
– frequency response 50 – 20000Hz
– max. SPL 114dB
– protection circuits HF driver, over voltage
– controls mains switch (on/off), volume
– indicators overload, power

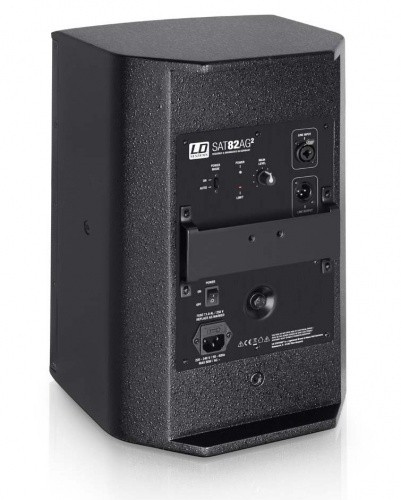

– line input connectors 6,3mm jack , XLR
– line output connectors XLR
– operating voltage transformer
– operating voltage 220V/AC – 240V/AC, 50-60Hz
– cabinet material 12mm MDF
– cabinet surface texture paint
– cabinet colour black
– cabinet construction vented
– width 274mm
– height 410mm
– depth 243mm
– weight 8,5kg
– accessories (included) wall bracket
