LD SAT 62 A G2 W 6,5″ actieve installatie monitor wit

Productbeschrijving

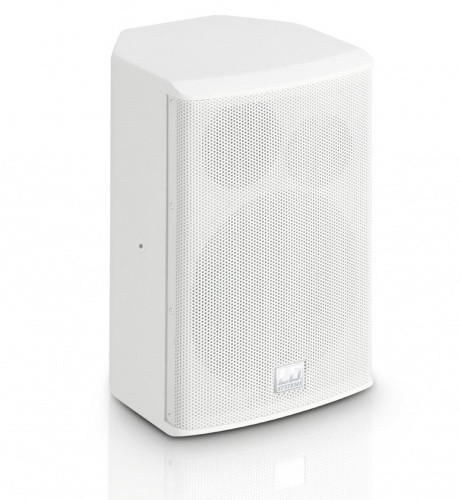

The LD Systems SAT62AG2 is the active version of the SAT62G2.
The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.

The bass-reflex design is loaded with a 6.5″ custom woofer and a 1“ silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W RMS power and overcurrent protection.

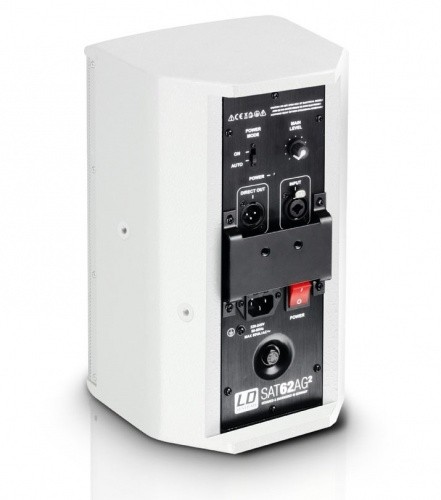

The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal.
Reproduction is balanced and dynamic throughout the frequency range of 55 Hz – 20 kHz and attains a maximum sound-level pressure of 108 dB.
The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points.

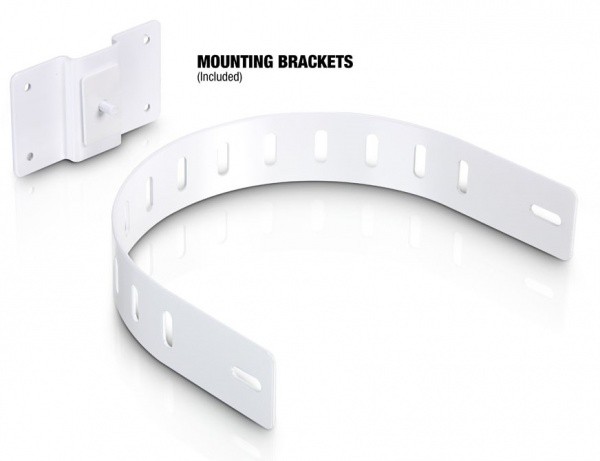

An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory.

Specificaties

– 6,5″ installation monitor active
– LDSAT62AG2W
– bass reflex
– woofer: 6,5″ custom made
– compression Driver: 1″ custom made
– amplification: Class A / B
– dispersion: 60o x 60o
– power (RMS): 50 W
– frequency range: 55 Hz – 20 kHz
– SPL (1 W / 1 m): 89 dB
– max SPL: 108 dB
– protection: over-current
– controls: volume, switchable auto / power mode
– indicators: power
Connectors:
– input: line: XLR + Jack 6,3 mm combo
– output: line: XLR
– material: 12 mm MDF
– surface: painting
– dimensions (W x H x D): 200 x 320 x 200 mm
– additional features: M6 rigging / mounting points, mounting brackets
