Kramer VS-411UHD 4x HDMI in > 1x HDMI & audio uit met RS-232 4K UHD NIET MEER LEVERBAAR ZIE VS-411XS

Prijs op aanvraag
Kramer VS-411UHD 4x HDMI in > 1x HDMI & audio uit met RS-232 4K UHD NIET MEER LEVERBAAR ZIE VS-411XS

Artikelnummer: VS411UHD


Mail ons voor meer informatie

Productbeschrijving

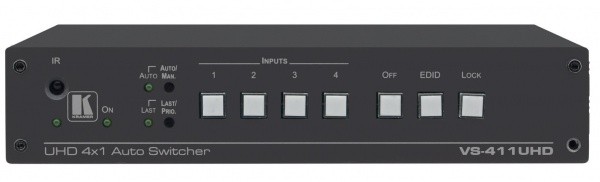

The VS-411UHD is a high performance automatic switcher for 4K UHD HDMI and analog audio signals.
The unit automatically switches to a predefined or the last connected input whenever the currently active video signal is interrupted or whenever a higher priority video signal is detected.

Features:
– max. data rate 17,82Gbps
– HDMI & HDCP 2.2 compliant
– 4K@60Hz (4:4:4) UHD resolution support
– HDMI support
– deep color, ARC, up to 7.1 uncompressed audio channels, CEC
– DVI 1.0 support
– automatic input detection & selection
– auto-power off when no HDMI input for 10sec (selectable)
– HDCP on/off switching
– EDID configuration options
– selectable switching, manual or fast auto switching according to last connected or preset priority
– step-in functional support
– contact closure for remote manual switching override
– HDMI ARC de-embedding from output to balanced stereo audio line out uncompressed
– firmware upgrade over mini USB, RS-232
– software support for protocol 3000, EDID Designer, K-upload
– varied control options, front panel buttons, contact closure, IR, RS-232 protocol 3000
– mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter

Applications:

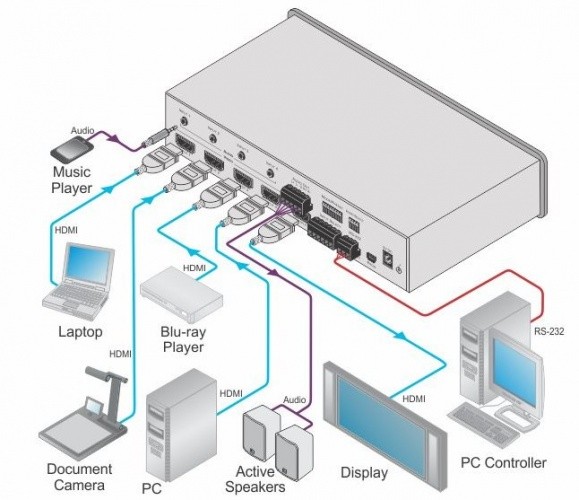

– education, entertainment, corporate and any other AV installation that requires selecting and switching between two HDMI sources automatically
