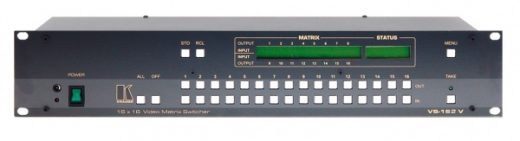

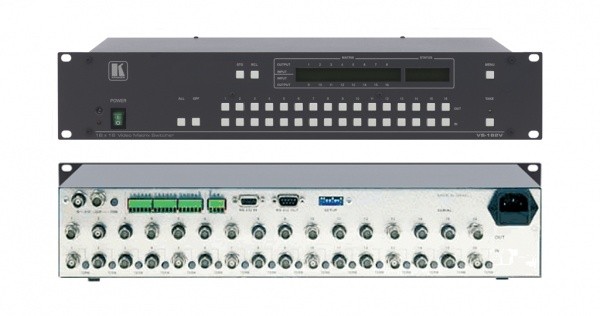

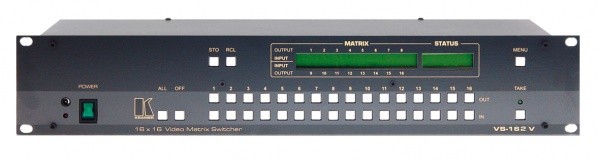

Kramer VS-162V 16x16V Matrix switcher RS 232

Kramer VS-162V 16x16V Matrix switcher RS 232

Artikelnummer: 114199

2.470,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw


  • Gratis verzending v.a. €350,-


The VS-162V is a high performance matrix switcher for composite video signals.
It can be configured as an 8×8 s-Video (Y/C) switcher, a 5×5 component (YUV) switcher, or a 4×4 RGBS Switcher.
Bandwidth – 100MHz (- 3dB) fully loaded.
HDTV Ready.
Multi-Mode – Configure as either a 16×16 composite, an 8×8 s-Video (Y/C), a 5×5 component (YUV), or 4×4 RGBS switcher.
Looping Inputs and Sync.
Selectable Input and Sync Signal Termination.
Control – Front panel, RS-232 (K-Router Windows – based software is included), & RS- 485, contact closure, & IR remote (Included).
Take Button
Execute multiple switches all at once.
Memory Locations
Store multiple switches as presets to be recalled and executed when needed.



– Standard 19″ Rack Mount Size – 2U.
