Kramer TP-580RXR HDBT ontvanger voor WP-20 tot 180m

Kramer TP-580RXR HDBT ontvanger voor WP-20 tot 180m

Artikelnummer: TP580RXR

335,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw


  • Gratis verzending v.a. €350,-


The TP-580RXR is a 4K UHD, extended range, HDBaseT twisted pair receiver for HDMI, bidirectional RS-232 and IR signals.

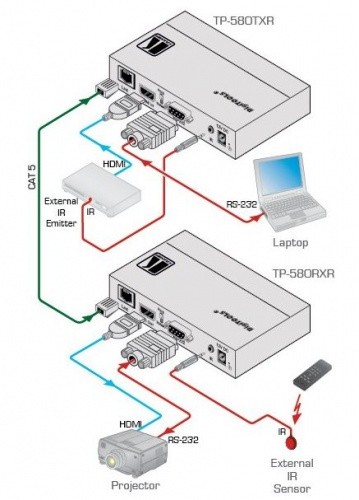

The TP-580RXR receives an HDBaseT twisted pair signal from the TP-580TXR and converts it back into HDMI, RS−232 and IR signals.
The device supports resolutions of up to 4K@60 UHD (4:2:0).

– projection systems in conference rooms
– boardrooms
– auditoriums
– hotels
– churches
– production studios

– resolution support up to 4K@60 UHD (4:2:0)
– max. data rate 10.2Gbps (3.4Gbps per graphic channel)
– HDTV compatible
– HDCP compliance
– HDBaseT technology
– HDMI support deep color, x.v.Color, lip sync
– HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC
– 3D pass-through
– EDID pass thru passes EDID signals between the source and display
– bidirectional RS-232 & IR interface
– commands and data can flow in both directions via the RS-232 interface
– allowing status requests and remote control of the destination unit
– system range up to 130m at normal mode (2K), up to 100m at normal mode (4K)
– up to 180m ultra mode (1080p @60Hz @24bpp) when using BC-UNIKat cables
– for optimum range and performance using HDBaseT, use Kramer’s BC-UNIKat cable
Note that the transmission range depends on the signal resolution, source and display used.
The distance using non-Kramer CAT 6 cable may not reach these ranges.

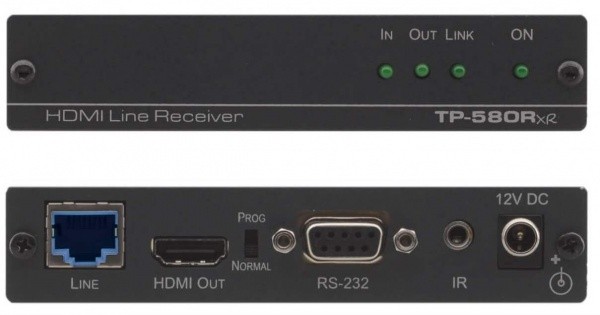

– indicators status LEDs for input, output, link and power
– compact DigiTOOLS, 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T universal rack adapter
