Kramer TP-580RD 4K60 HDBT DVI ontvanger voor WP-20 tot 70m met RS232 HDCP 2.2

Productbeschrijving

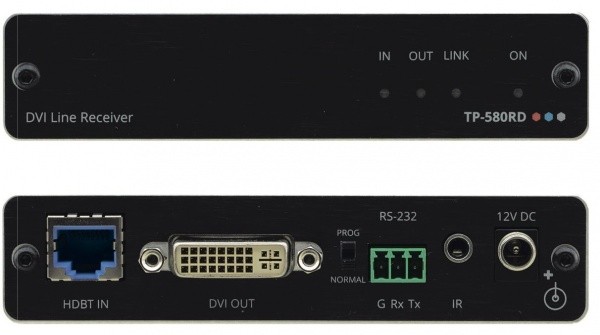

TP580RD is a highperformance, longreach HDBaseT receiver for 4K@60Hz (4:2:0) DVI/HDMI, RS232 and IR signals over twisted pair.
It extends video signals to up to 40m over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

High performance standard extender:
Professional HDBaseT extender for providing longreach signals over twistedpair copper infrastructures.

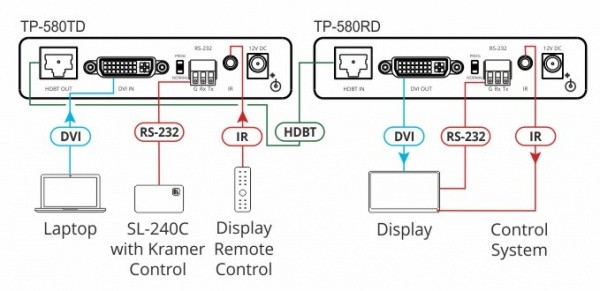

TP580RD is a standard extender that can be connected to any market available HDBaseT compliant extension product.
For optimum extension reach and performance, use recommended Kramer cables.

Secured operation:
Highly secured operation is ensured by lockable wiring connectivity with protection against unintentional cable disconnection.

HDMI signal extension:
HDMI 2.0 and HDCP 2.2 compliant, via single link DVI–I connection.
Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D. EDID signals are passed through from the source to the display.

I–EDIDPro Kramer intelligent EDID processing:
Intelligent EDID handling, processing and pass through algorithm that ensures plug and play operation for HDMI source and display systems.

Multi channel audio extension:
Up to 32 channels of digital stereo uncompressed signals for supporting studio
grade surround sound.

Bidirectional RS232 extension:
Serial interface data flows in both directions, allowing data transmission and device control.

Bidirectional infrared extension:
IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

Cost effective maintenance:
Status LED indicators for DVI and HDBT ports facilitate easy local maintenance and troubleshooting.

Easy installation:

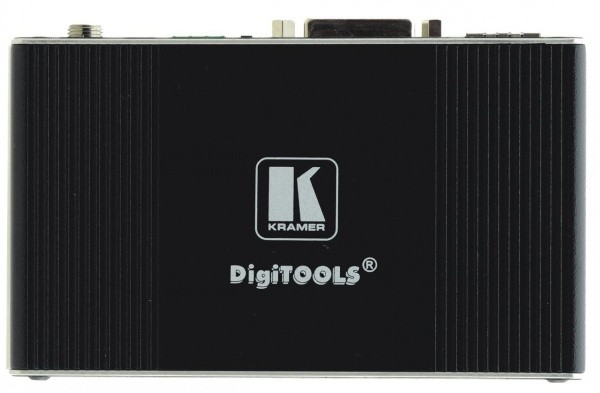

Compact DigiTOOLS fanless enclosure for dropped ceiling mounting, or side by side mounting of 3 units in a 1U rack space with the recommended rack adapter.
