Kramer PT-572+ Cat5 (6) (afgeschermd) > HDMI omzetter

Kramer PT-572+ Cat5 (6) (afgeschermd) > HDMI omzetter

Artikelnummer: PT-572

245,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • Gratis verzending v.a. €350,-

Productbeschrijving

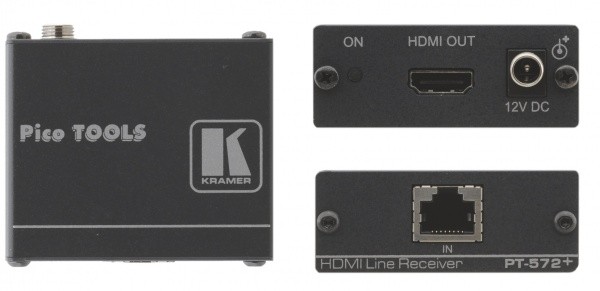

The PT-572+ is a DGKat twisted pair receiver for HDMI signals.

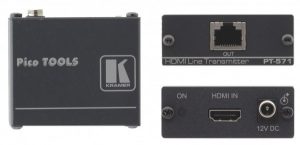

The PT-571 converts an HDMI signal to a single twisted pair signal and the PT-572+ converts the twisted pair signal back to an HDMI signal.

Features:
– max. data rate 1,65Gbps
– HDTV compatible
– HDCP compliant
– DGKat signal integration
– Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables
– we strongly recommend using Kramer DGKat cables designed specifically for optimum performance
– HDMI support HDMI (V.1.4 with Deep Color, x.v.Color, HDMI Uncompressed audio channels, Dolby TrueHD, DTS-HD)
– 3D pass-through

System range:
– up to 90m at 1080i, or up to 30m at 1080p on shielded BC-DGKat524 cable
– up to 90m at 1080i, or up to 70m at 1080p on shielded BC-DGKat623 cable
– up to 100m at 1080i or up to 90m at 1080p on shielded BC-DGKat7a23 cable
– cable requires shielded twisted pair (STP) cable
– for optimum range and performance use, use Kramer’s BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables
– note that the transmission range depends on the signal resolution, graphics card and display used
– the distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges
– use only shielded cable where both ends of the shield are soldered to ground
– EDID pass thru passes EDID signals between the source and display
– status LED lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached
– power connect system a single connection to the transmitter powers the receiver
– ultra compact Pico Tools 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter
