Kramer BC-DGKat623 Cat 6 4 paar afgeschermde video kabel 23AWG rol 100m

Productbeschrijving

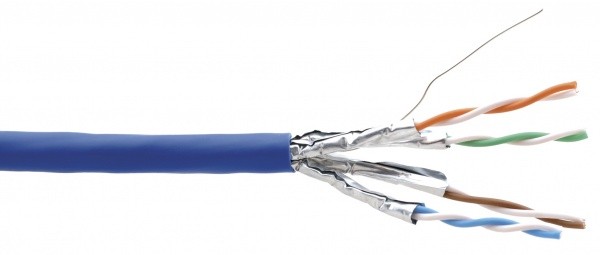

Kramer’s BC-DGKat623 is a 4-pair U/FTP (unshielded around foiled twisted pair) cable designed as the ideal companion to Kramer’s twisted pair digital transmitter-receiver sets to provide optimum range and
performance.

Quality Construction:
– 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors
– cabled together in an unshielded outer jacket
– optimized for Kramer hardware
– use with Kramer’s wide range of twisted pair digital transmitter-receiver sets
– terminate with shielded RJ-45 connectors
– the larger diameter 23AWG cable requires a special RJ-45 connector
– use the Kramer CON-CRIMP-RJ-45
– available in pull boxes of 100/305m
– Note: requires a special RJ-45 Connector for 23 AWG cable

Specificaties

– conductor size 23AWG bare solid copper
– outer jacket color blue
– total 8 wires
– drain wire solid 23AWG tinned copper
– overall shield material Polyester aluminum tape
– conductor color code white/blue, white/orange, white/green, white/brown
– propagation delay skew 35ns/100m max.
– impedance 100 Ohm
– DC resistance 73 Ohm/km nominal
– max resistance unbalanced 2%
– capacitance 1,2pF/m max.
– temperature -20 to +70C
