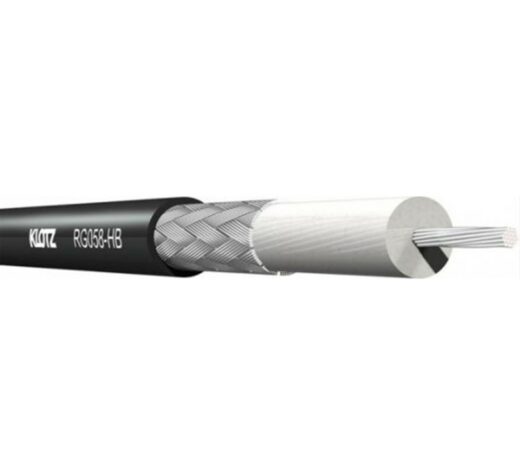

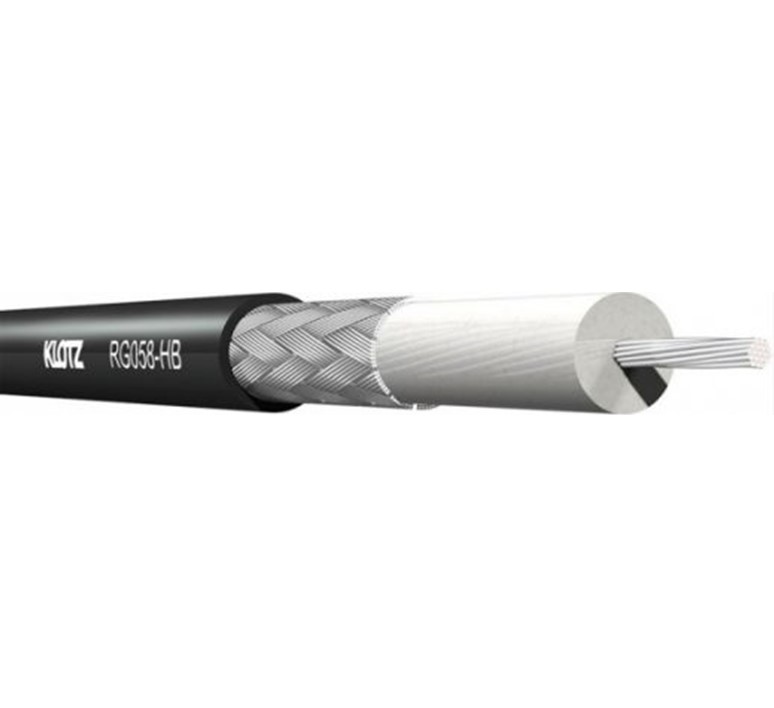

Klotz RG-58 coax kabel halogeen vrij zwart per meter

Productbeschrijving

RG058-HB 50 Ohm coax cable RG58C/U-FRNC Eca.
50 Ohm characteristic impedance flame retardant and non corrosive (FRNC) CPR class Eca.

Specificaties

– inner conductor stranded tinned copper 19x 0,18mm
– insulation PE 2,95mm
– shielding tinned copper braid 92% coverage
– overall diameter 5,0mm
– min. bending radius 25mm
– working temperature -30C – +70C
– characteristic impedance 50 +/- 2 Ohm
– capacitance 100 pF/m
– velocity of propagation 66%
– DC resistance inner conductor 38 ohm/km, outer conductor 17 ohm/km

Attenuation:
50 MHz 10,4 dB/100m
100 MHz 15,0 dB/100m
200 MHz 21,9 dB/100m
400 MHz 32,2 dB/100m
800 MHz 48,1 dB/100m
1000 MHz 54,8 dB/100m
